SUNLOAD Sensor: Removal

WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

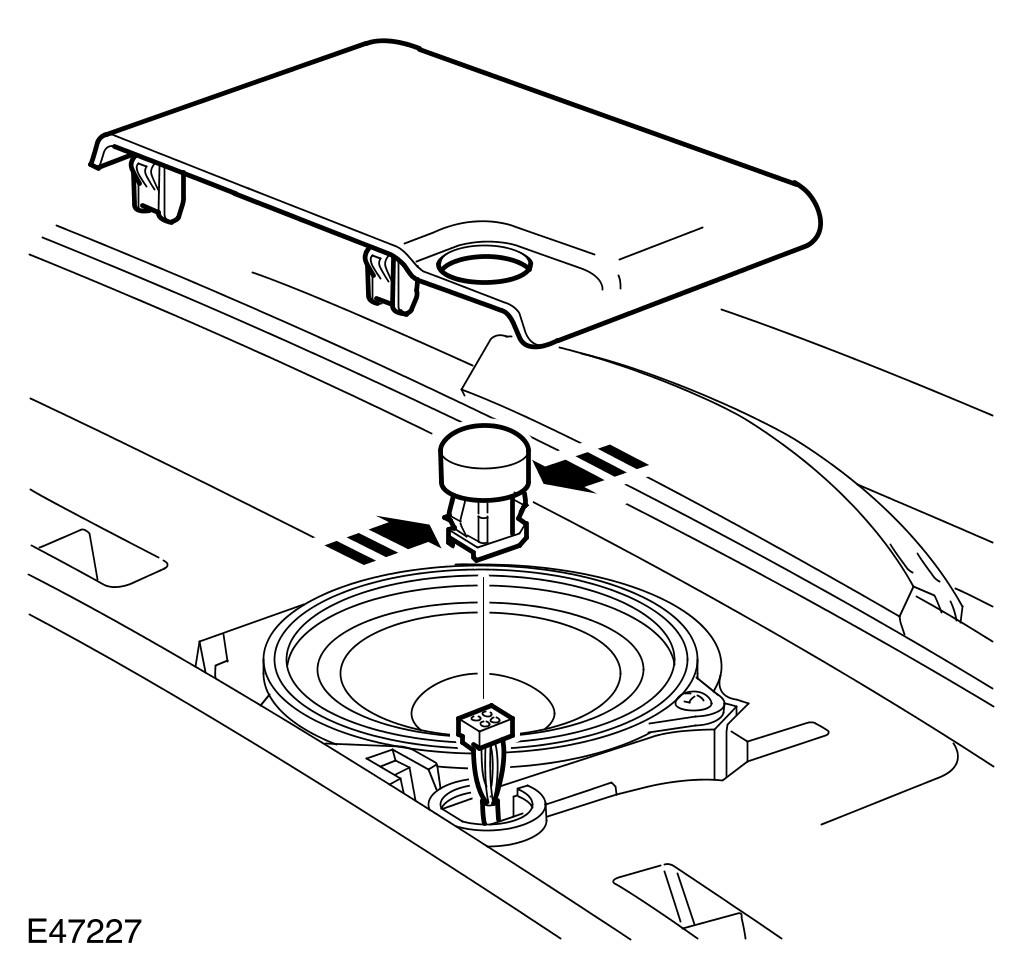

  1. Remove the instrument panel upper section speaker grille.
    • Release the 4 clips.
  2. Remove the sunload sensor.
    • Release the 2 clips.
    • Disconnect the electrical connector.
    GJ0020292
