Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

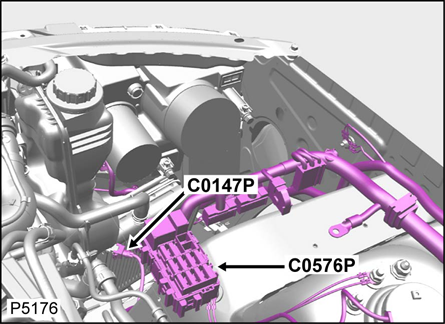

| Auxiliary Junction Box (C0576P) | Right side of engine compartment. See Figure. |

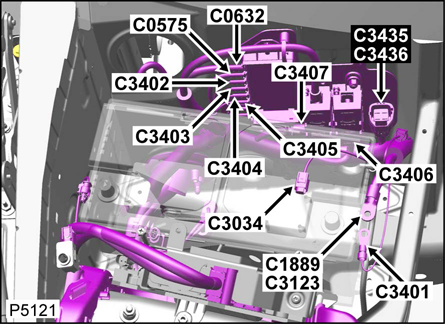

| Battery Junction Box | Right side of engine compartment. See Figure. |
| Central Junction Box (C0583) | Behind right side of dash. See Figure. |

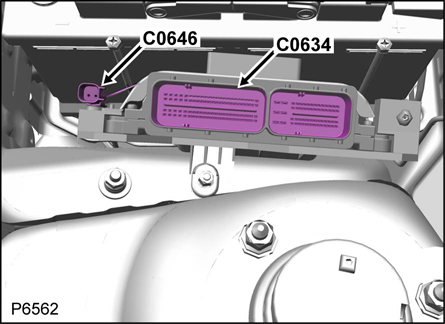

| E-Box | Right side of engine compartment. See Figure. |

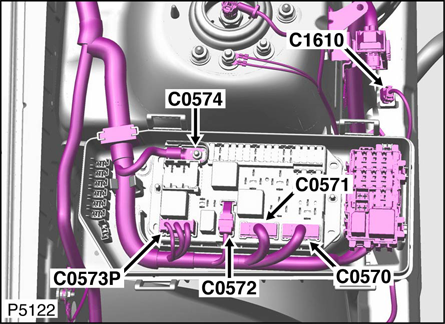

| Engine Junction Box (C0570) | Right side of engine compartment. See Figure. |
| Rear Junction Box (C2020) | Right side of luggage compartment. See Figure. |
