Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Module (C1585) | Left rear of engine compartment. See Figure. |

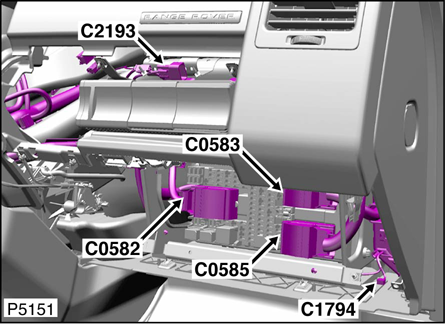

| AFS Control Module (C2193) | Behind glove box. See Figure. |

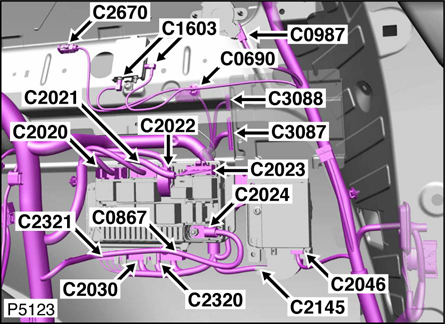

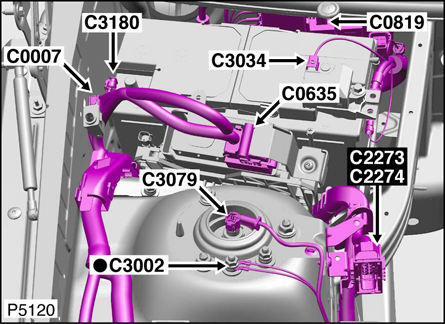

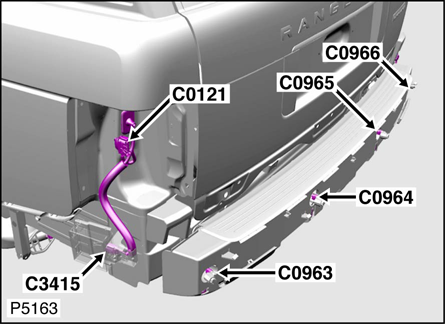

| Air Suspension Control Module (C0867) | Right side of luggage compartment. See Figure. |
| Battery Monitoring System Module (C3180) | Left side of engine compartment. See Figure. |
| Blind Spot Monitoring Module (Left) (C3415) | Left side of rear bumper. See Figure. |

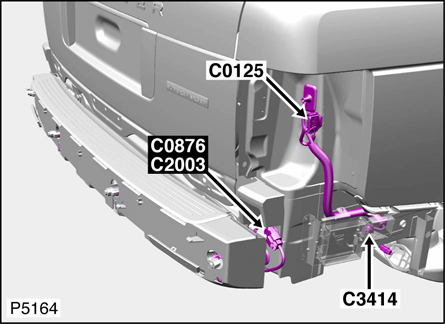

| Blind Spot Monitoring Module (Right) (C3414) | Behind right side of rear bumper. See Figure. |

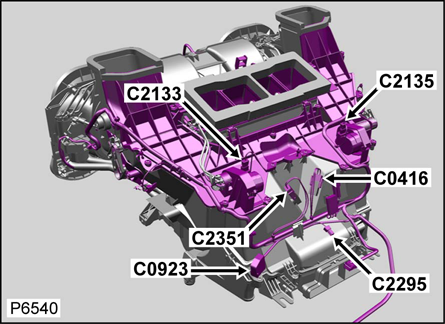

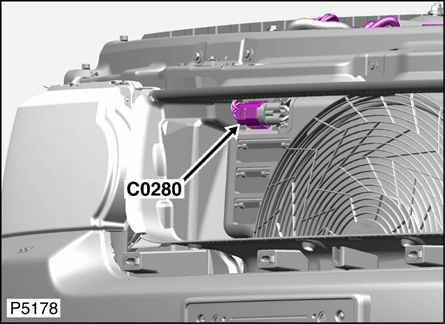

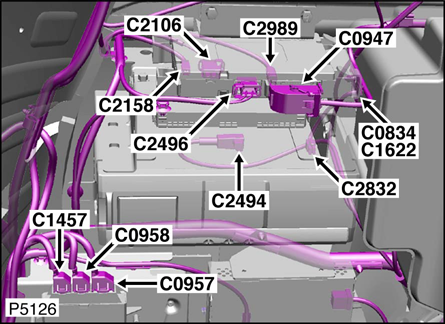

| Climate Control Module (C0923 & C2295) | Behind center console. See Figure. |
| Condenser Fan Control Unit (C0280) | Top of radiator. See Figure. |
| Continuously Variable Damping Module (C3087) | Right side of luggage compartment. See Figure. |
| DAB/DARS Tuner Module (C2158) | Left side of luggage compartment. See Figure. |

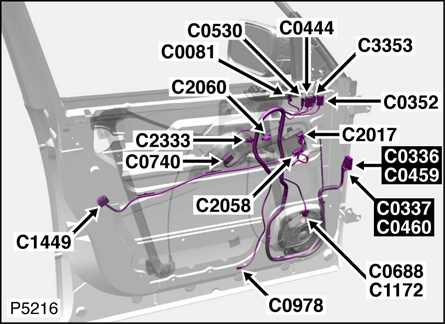

| Driver's Door Module (C2017 & C2058) | In driver's door. See Figure. |

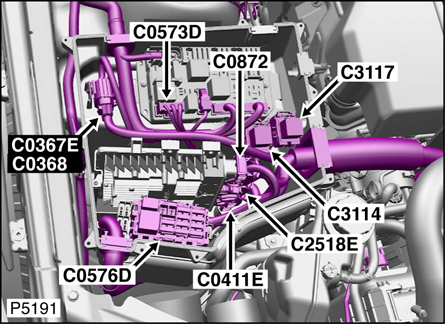

| Engine Control Module (ECM) (C0872) | Right side of engine compartment. See Figure. |

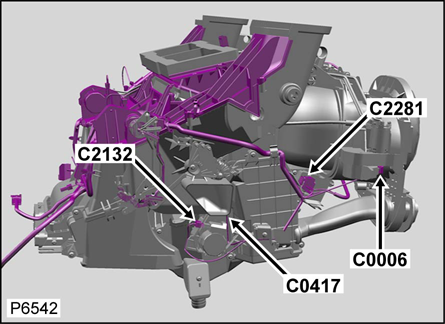

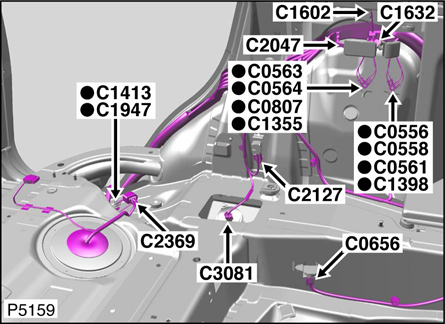

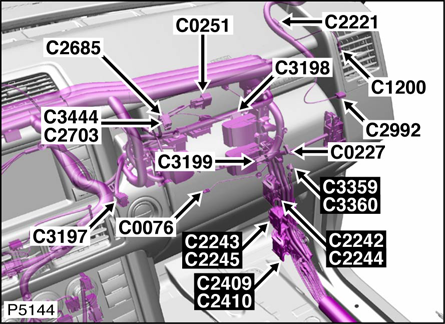

| Front Blower Motor Control Unit (C2281) | Behind center of dash. See Figure. |
| Fuel Pump Driver Module (C2369) | Under rear seat. See Figure. |
| Glove Compartment Control Module (C3197) | Right side of dash. See Figure. |

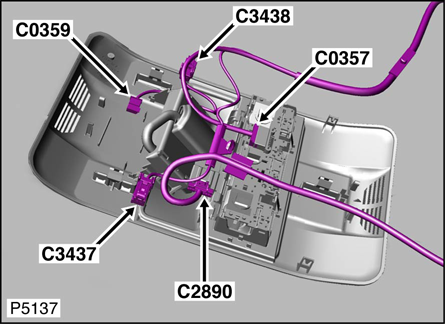

| Headphone Module (C2890) | Center of roof. See Figure. |
| IBOC Radio Module | Left side of luggage compartment. See Figure. |

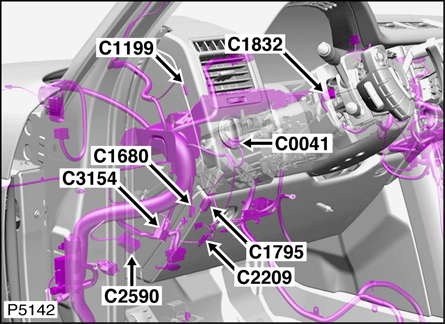

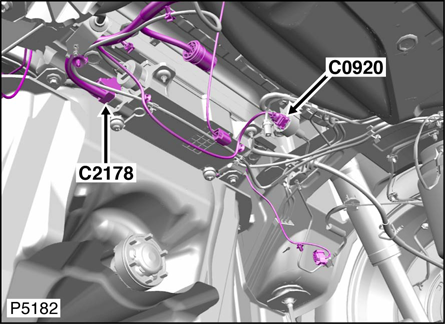

| Lower Air Bag (Driver) (C3154) | On underside of steering column. See Figure. |
| Parking Aid Module (C0957, C0958 & C1457) | At left side of luggage compartment. See Figure. |
| Parking Brake Module (C2178) | Under rear of vehicle. See Figure. |
| Passenger Air Bag Module (C0251) | Behind glove compartment. See Figure. |

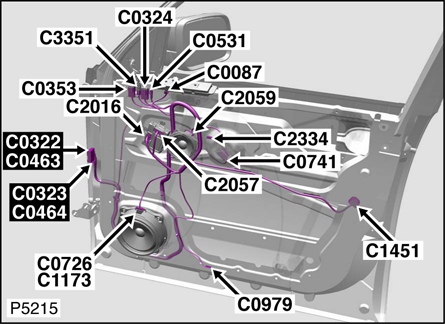

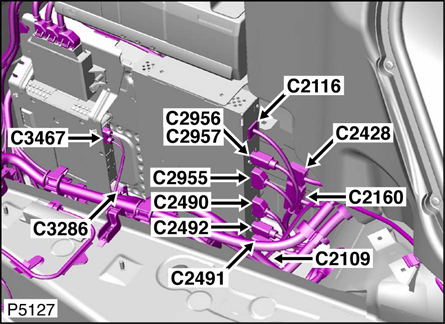

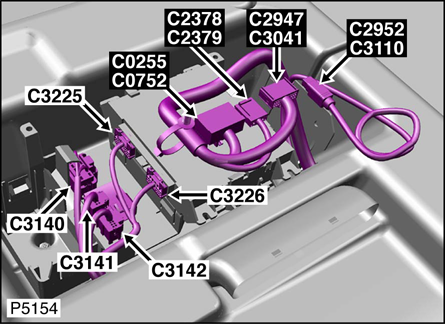

| Passenger Door Module (C2016 & C2057) | In front passenger's door. See Figure. |
| Passive Anti-Theft System (PATS) Module (C2116) | Left side of luggage compartment. See Figure. |
| Rear Automatic Temperature Control Module (Driver) (C3225) | Under driver's seat. See Figure. |

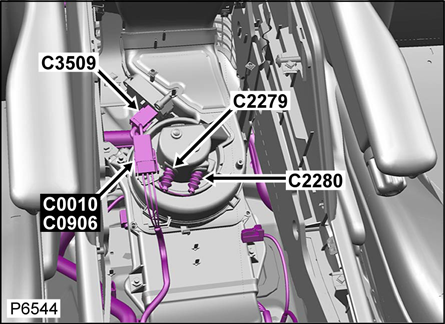

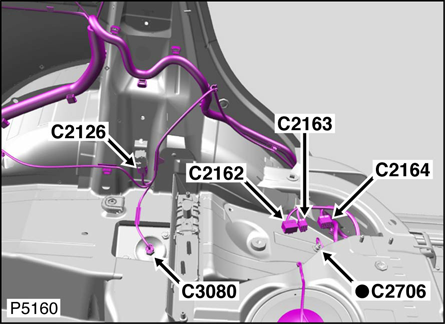

| Rear Blower Motor Control Module (C3509) | Under center console. See Figure. |
| Rear Differential Control Module (C2162) | Below left rear seat. See Figure. |

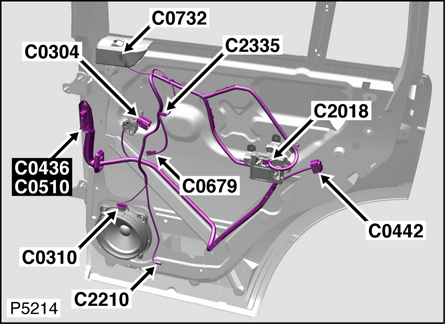

| Rear Door Module (C2018) | In rear door. See Figure. |
| Rear Seat Entertainment Module (C2109) | Left side of luggage compartment. See Figure. |

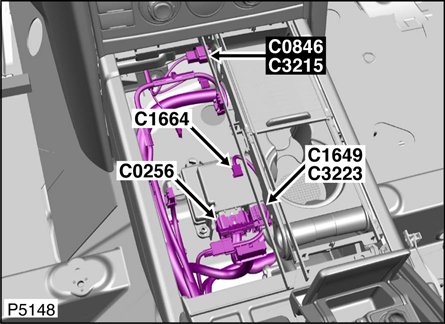

| Restraints Control Module (RCM) (C0256) | Under center console. See Figure. |

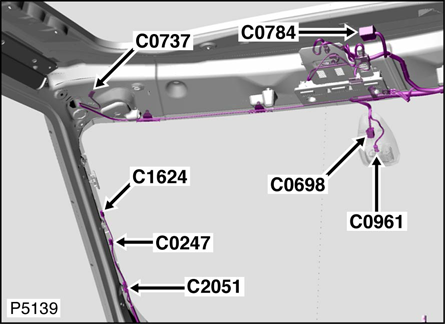

| Roof Opening Panel Control Module (C0784) | At center front of roof. See Figure. |
| SDARS Module (2989) | Left side of luggage compartment. See Figure. |
| Seat Climate Control Module (C3140) | Under driver's seat. See Figure. |
| Speed Control Module (C2145) | Right side of luggage compartment. See Figure. |

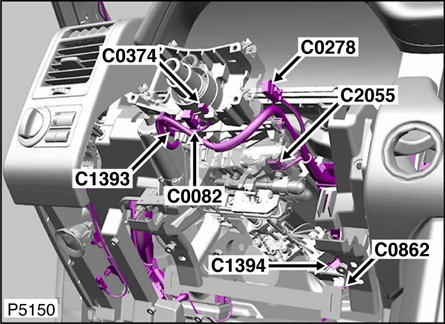

| Steering Column Locking Module (C2055) | At top of steering column. See Figure. |
| Subwoofer Module (0834) | Left side of luggage compartment. See Figure. |
| Telephone Module (C0947) | Left side of luggage compartment. See Figure. |

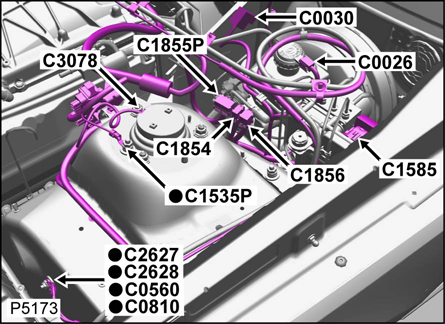

| Transfer Box Control Module (C1854) | Left rear of engine compartment. See Figure. |
| TV Tuner/SDARS Module (C2106) | Left side of luggage compartment. See Figure. |
