Power Window Main Relay: Continuity

Inspect relay continuity between terminals. See Fig 1. If continuity is not as specified, replace the relay.

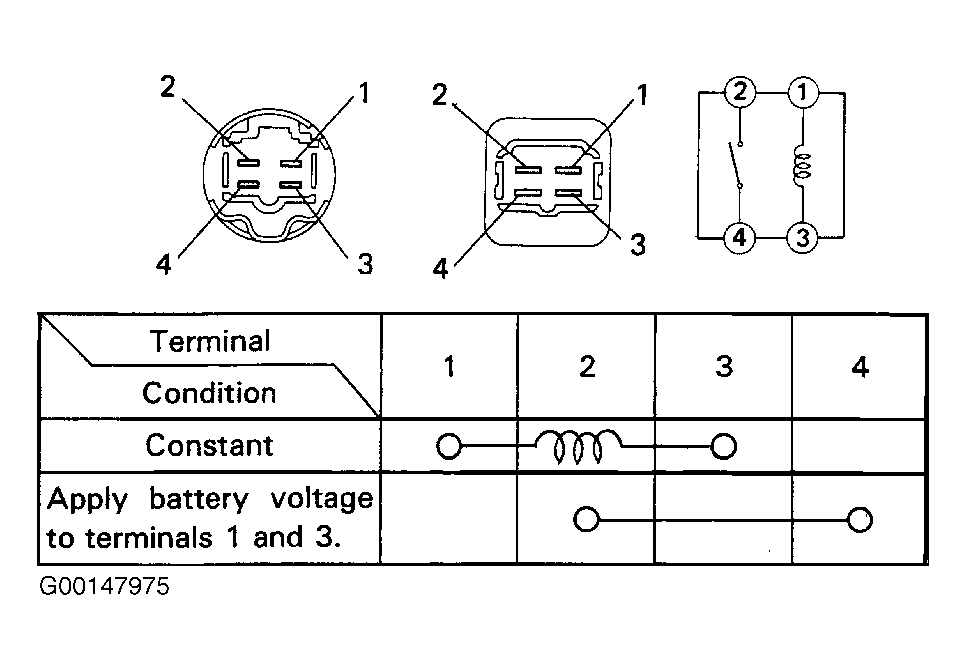

Fig 1: Inspecting Power Window Main Relay Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
