Brake Warning Light
- Disconnect the connector from the brake fluid warninglevel switch.

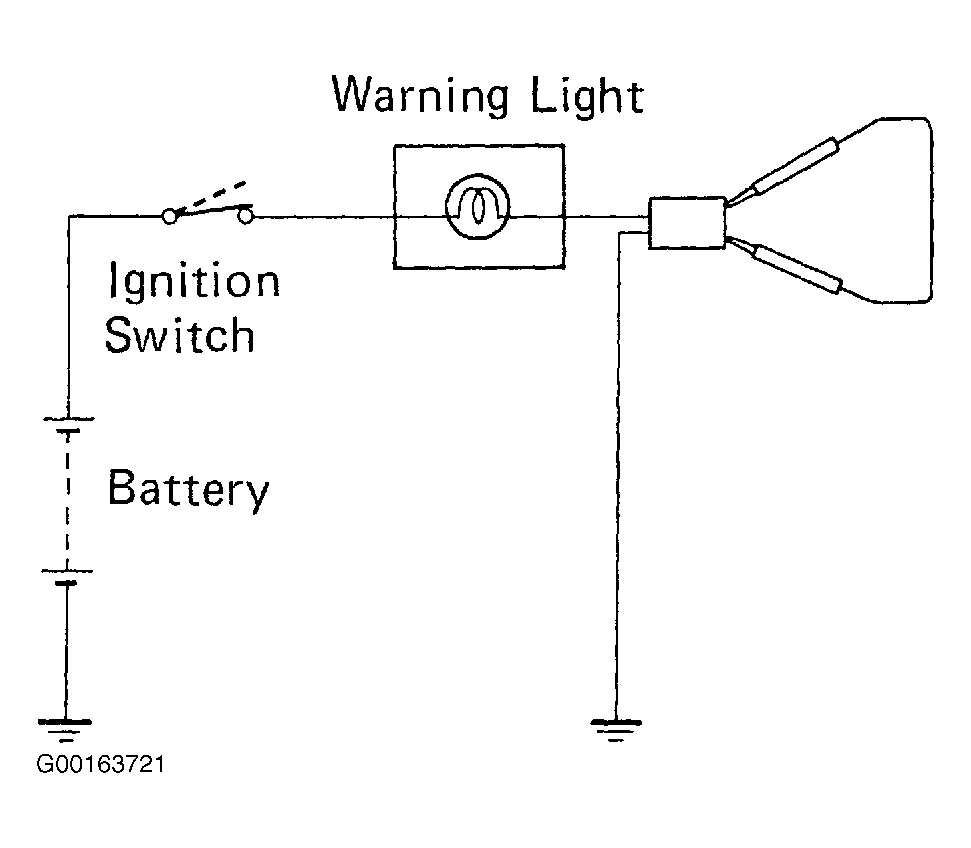

- Connect terminals on the wire harness side of level warning switch connector. See Fig 1.
- Start the engine, check that the warning light lights up.
- If warning light does not light up, test the bulb or wire harness.
