Light Failure Warning Light

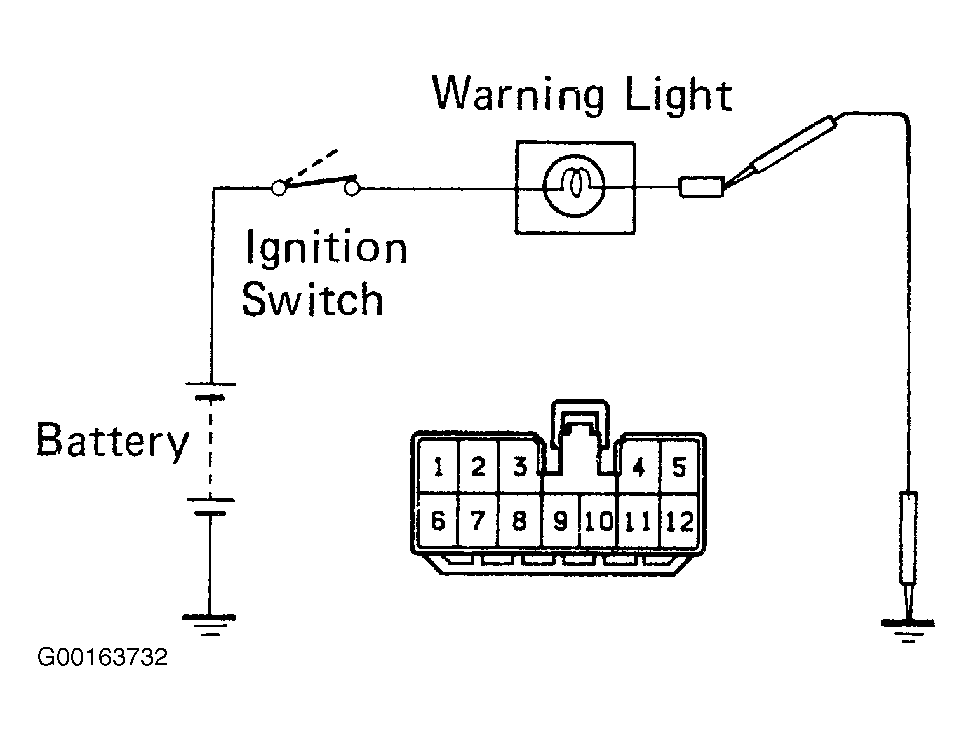

- Disconnect the connector from the light failure sensor in trunk. See Figure. Ground terminal 4 on the wire harness side connector. See Fig 1.
- Start the engine, check that the warning light lights up.
- If the warning light dies not light up, test the bulb or inspect wire harness.
