Taillight Switch/Continuity

Inspect continuity between terminals. See Fig 1 and Fig 2 . If operation is not as specified, replace the rheostat light control volume.

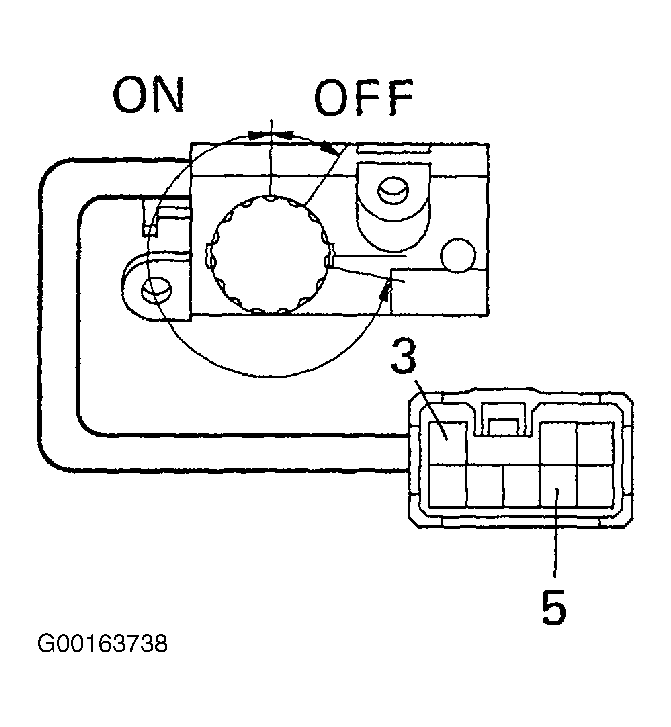

Fig 1: Inspecting Taillight Switch/Continuity
G00163738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Taillight Switch/Continuity Specifications
G00163739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
