Component Testing: Speedometer

NOTE: Tire wear and tire over or under inflation will increase the indication error.

Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer. See Fig 1. If error is excessive, replace the combination meter.

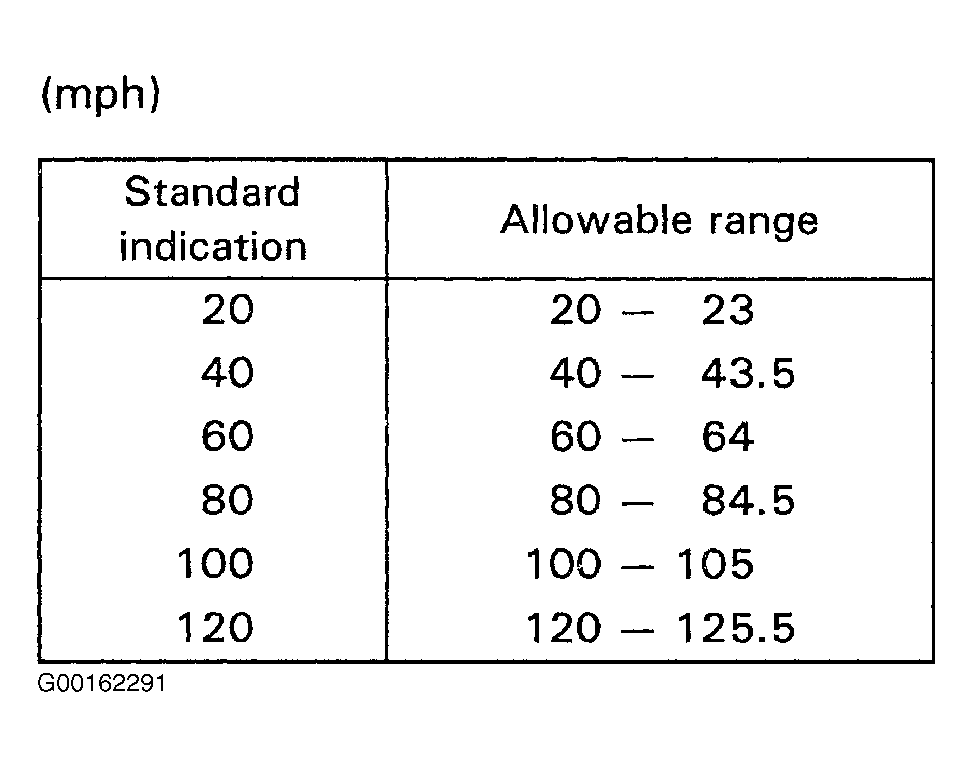

Fig 1: Identifying Speedometer Allowable Range Of Error
G00162291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
