Cluster Circuit Testing

Remove cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Using a DVOM, test cluster circuit. See Fig 1 thru Figure .

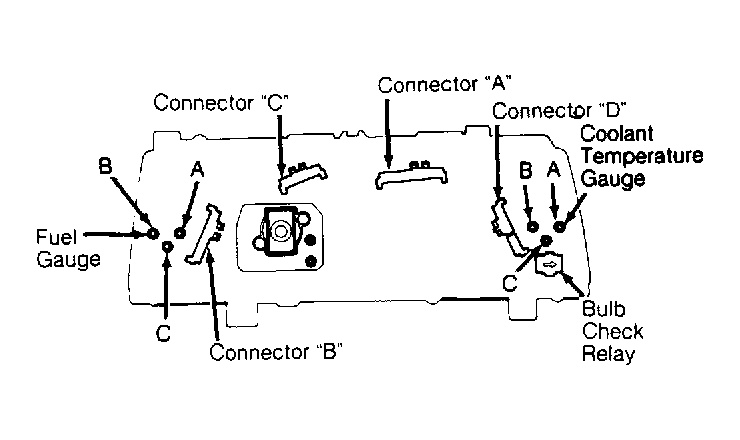

Fig 1: Identifying Instrument Panel Harness Connectors
G92C01034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

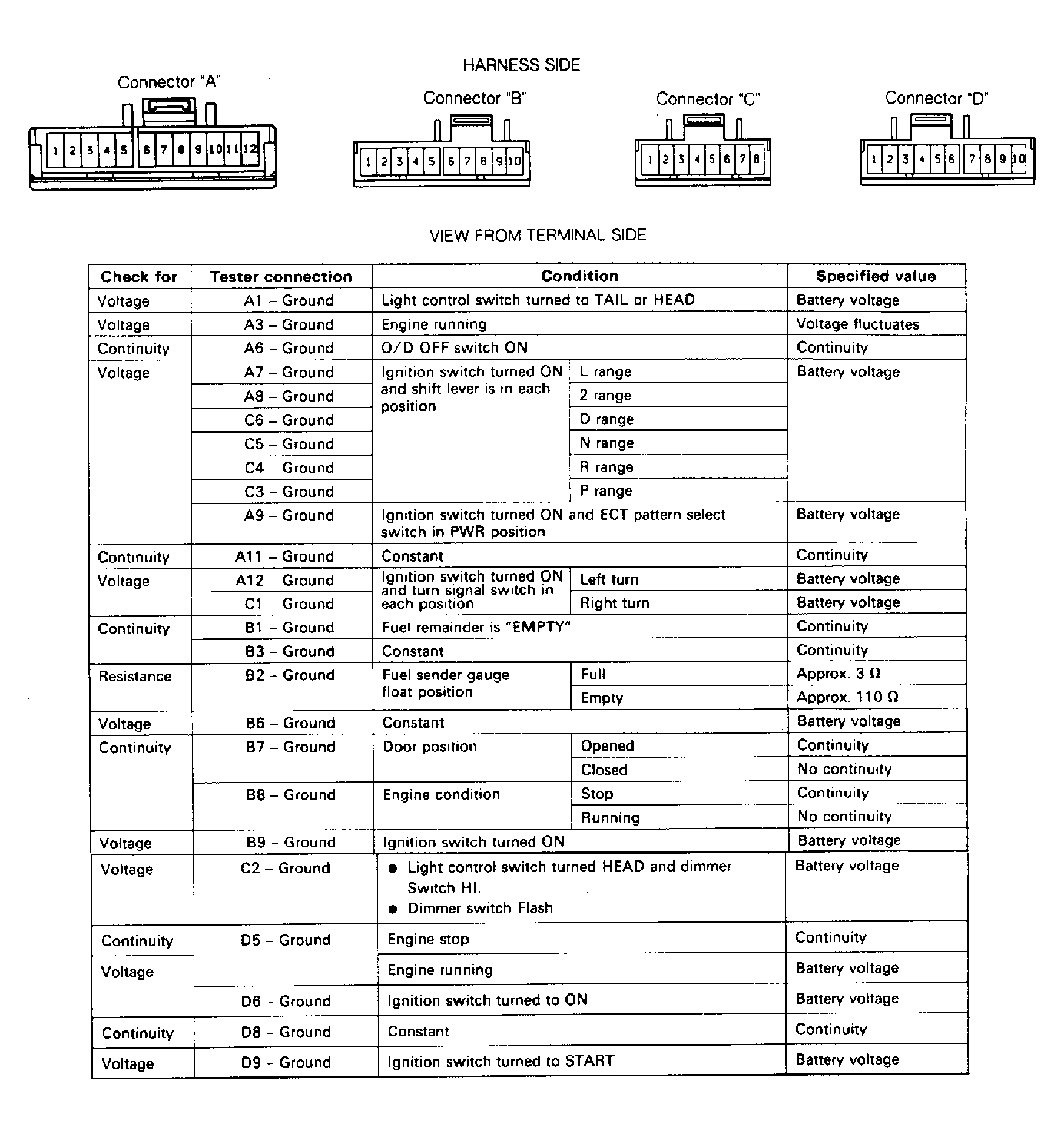

Fig 2: Testing Instrument Panel Harness Connectors
G92H01036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
