Component Location
>>
Electrical Components
Electrical Components
For electrical component locations, refer to
Fig 1
.

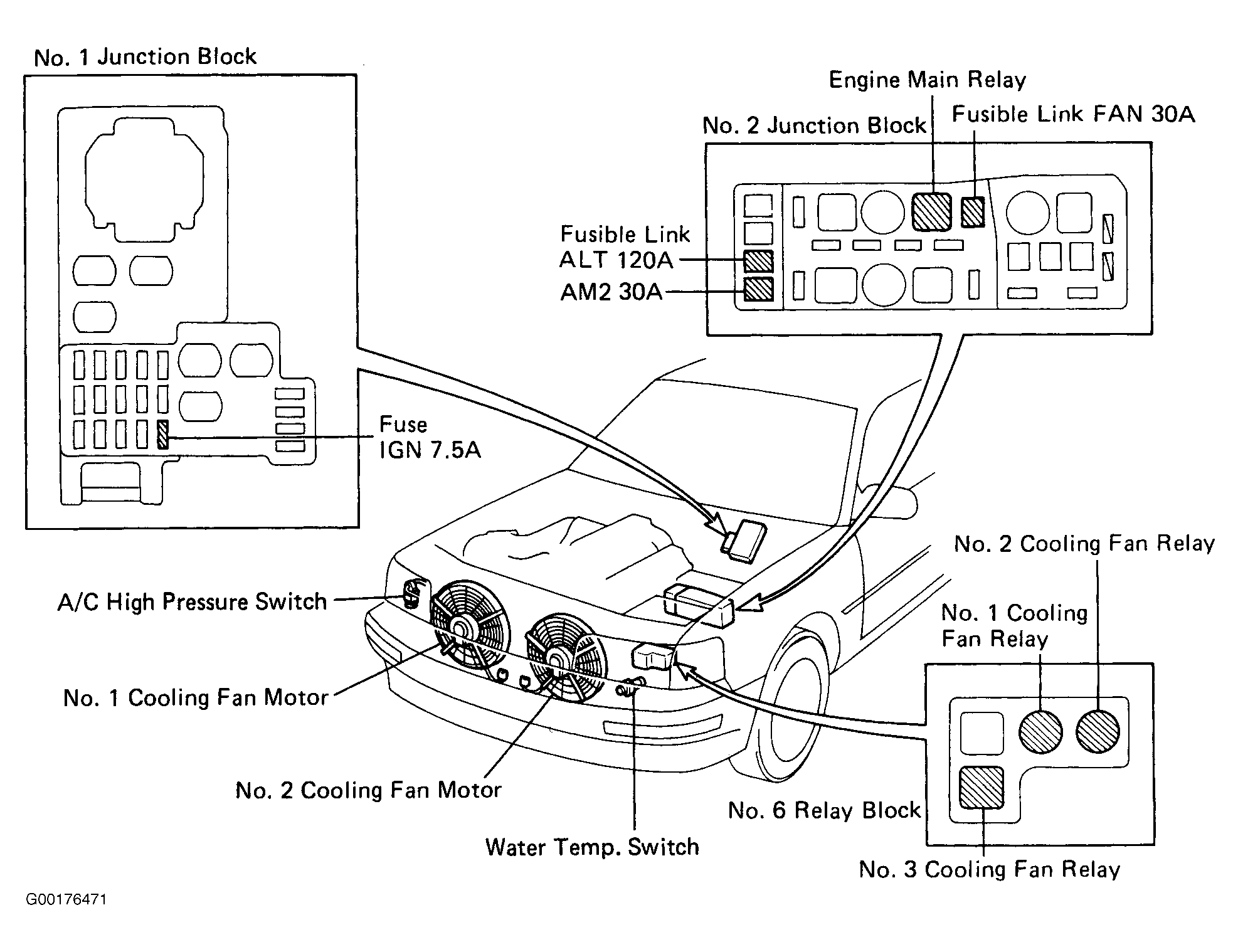

Fig 1: Identifying Cooling Fan System Electrical Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
