Component Locations
Component Locations

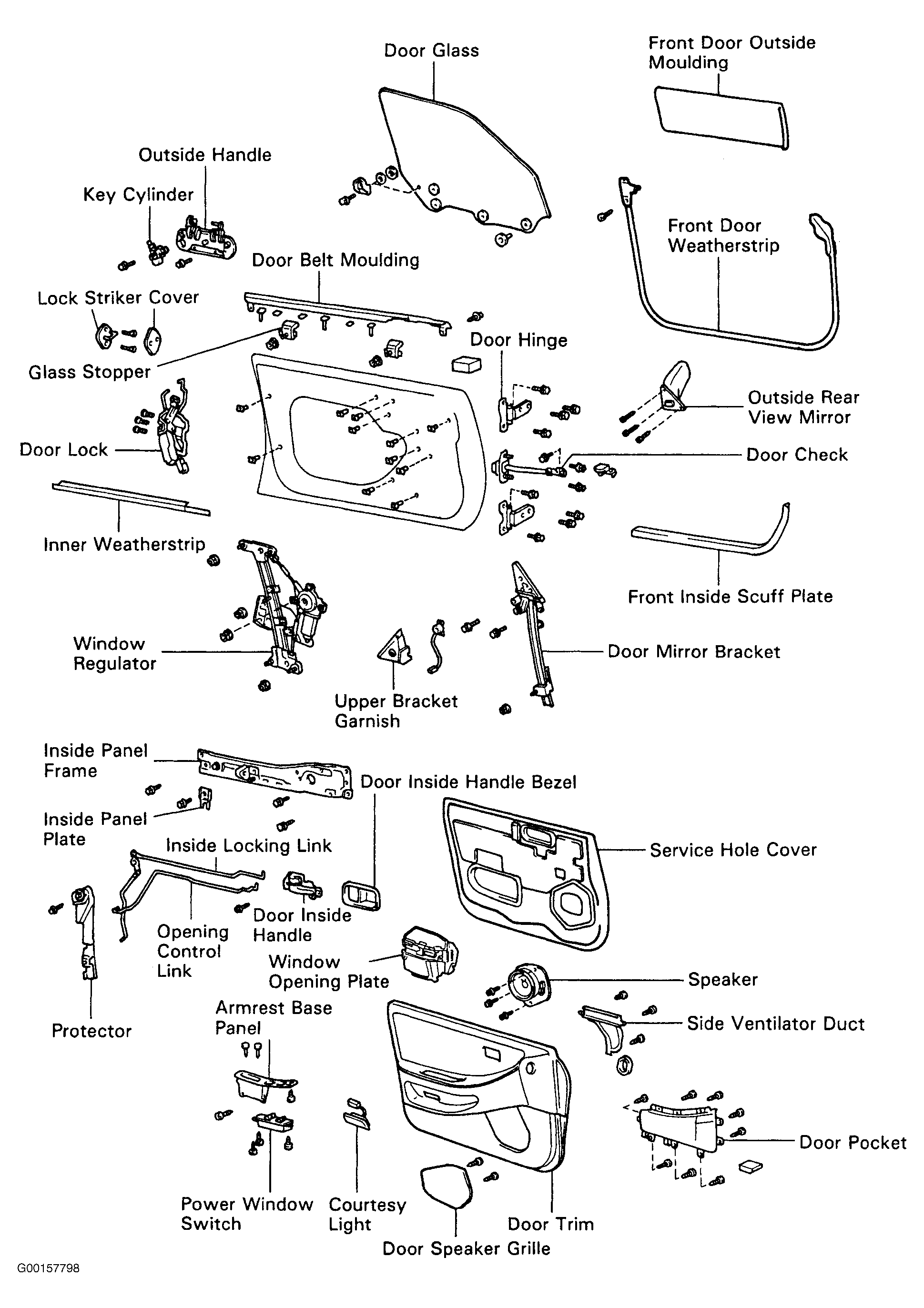

Fig 1: Locating Front Door Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

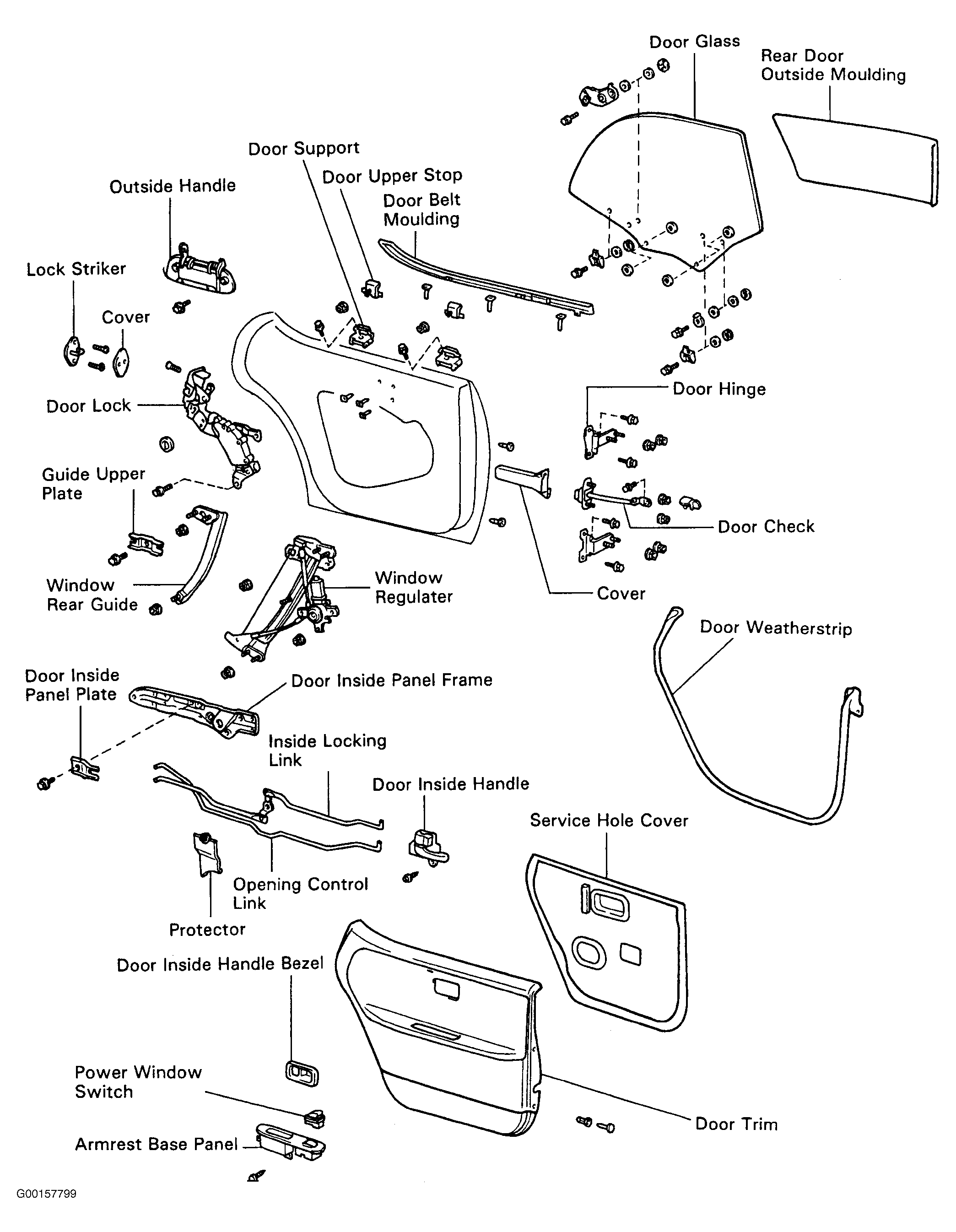

Fig 2: Locating Rear Door Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
