Power Window Master Switch: Continuity

Remove power window master switch. Check continuity between appropriate terminals of power window master switch with switch in specified position. See Fig 1. If continuity is not as specified, replace the power window master switch.

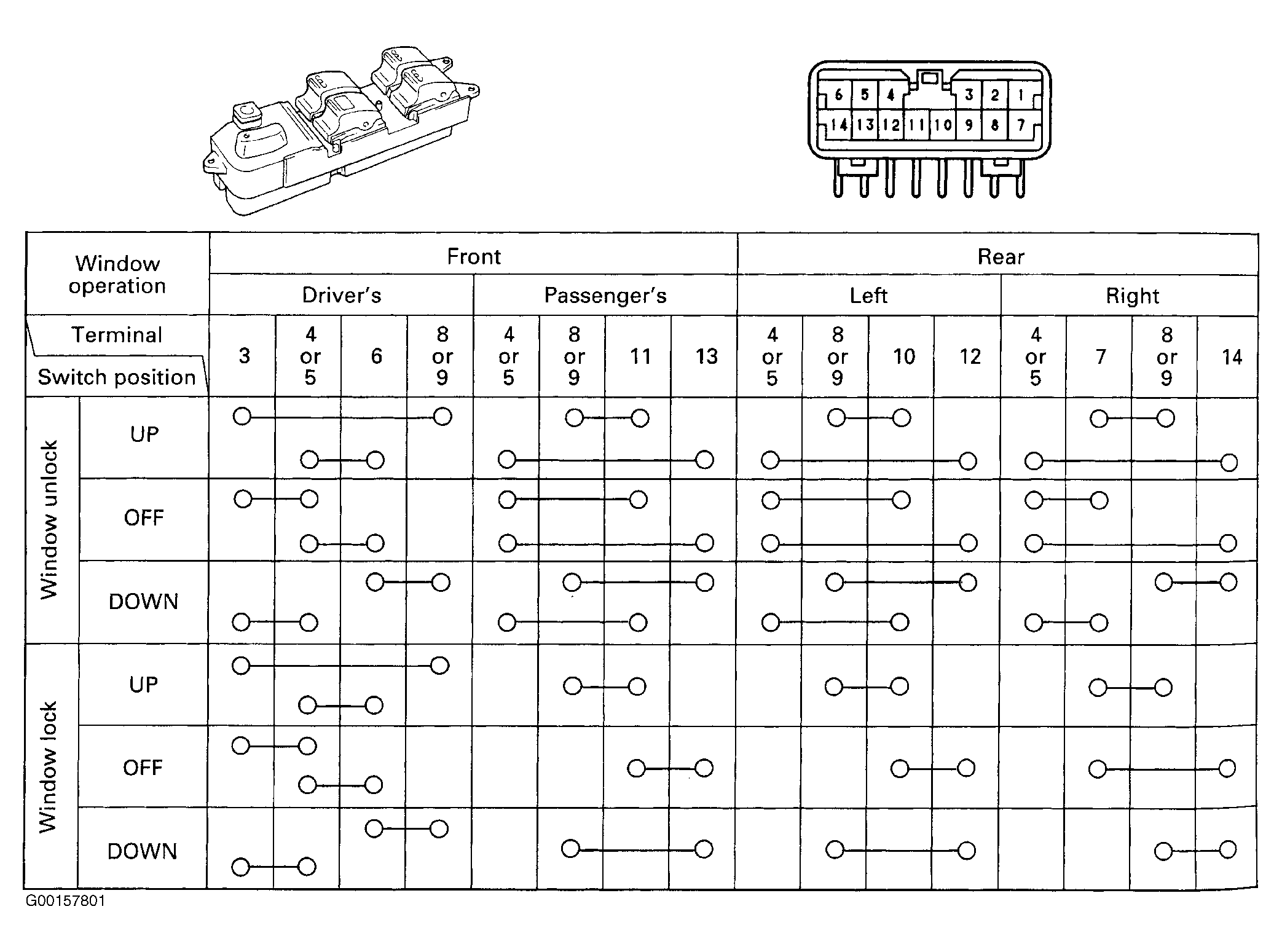

Fig 1: Testing Continuity Of Power Window Master Switch
G00157801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
