Shift Position Shift Indicator
Shift Position Shift Indicator
To test the shift position indicator, see
Fig 1
.

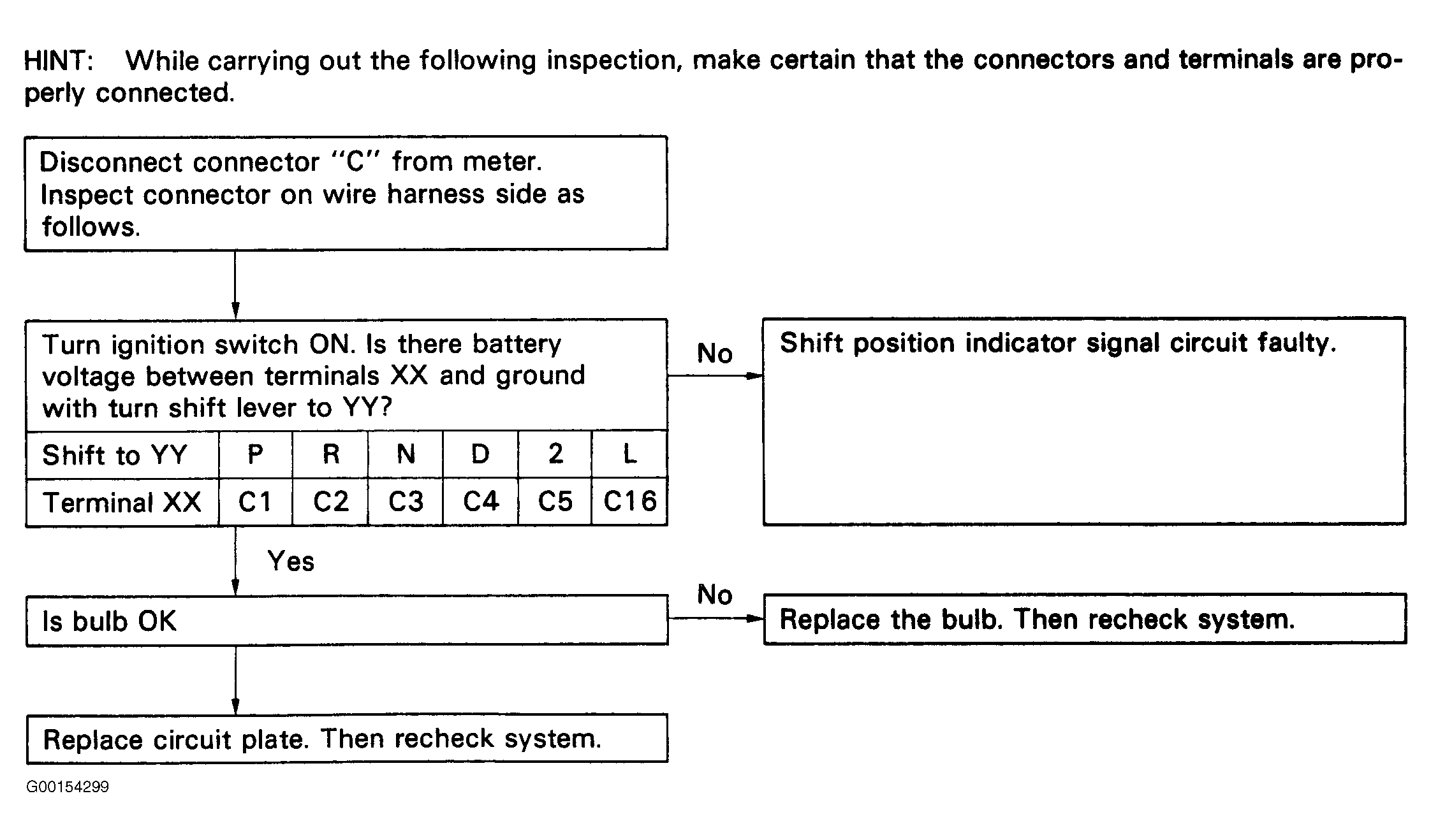

Fig 1: Testing Position Shift Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
