Master Switch Test

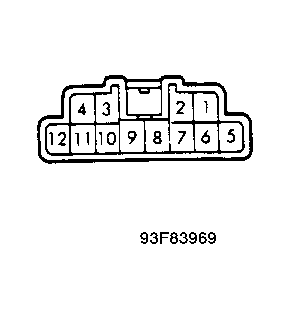

Remove power window master switch. See WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1. See appropriate POWER WINDOW SWITCH CONTINUITY TEST table.
POWER WINDOW SWITCH CONTINUITY TEST
| Position | Switch Lock | Terminal Continuity | |||
|---|---|---|---|---|---|
| Driver' Switch | |||||
| Off | (1) | 4, 8 & 10 | |||
| Up | (1) | 4 & 9; 8 & 10 | |||
| Down | (1) | 4 & 8; 9 & 10 | |||
| Right Front Switch | |||||
| Off | Unlock | 3, 7 & 8 | |||
| " | Lock | 3 & 7 | |||
| Up | Unlock | 3 & 8; 7 & 9 | |||
| " | Lock | 7 & 9 | |||
| Down | Unlock | 3 & 9; 7 & 8 | |||
| " | Lock | 3 & 9 | |||
| Left Rear Switch | |||||
| Off | Unlock | 5, 6 & 8 | |||
| " | Lock | 5 & 6 | |||
| Up | Unlock | 5 & 9; 6 & 8 | |||
| " | Lock | 5 & 9 | |||
| Down | Unlock | 5 & 8; 6 & 9 | |||
| " | Lock | 6 & 9 | |||
| Right Rear Switch | |||||
| Off | Unlock | 8, 11 & 12 | |||
| " | Lock | 11 & 12 | |||
| Up | Unlock | 8 & 11; 9 & 12 | |||
| " | Lock | 9 & 12 | |||
| Down | Unlock | 8 & 11; 9 & 12 | |||
| " | Lock | 9 & 11 | |||
|
|||||
