Code P0500 - Vehicle Speed Sensor Malfunction

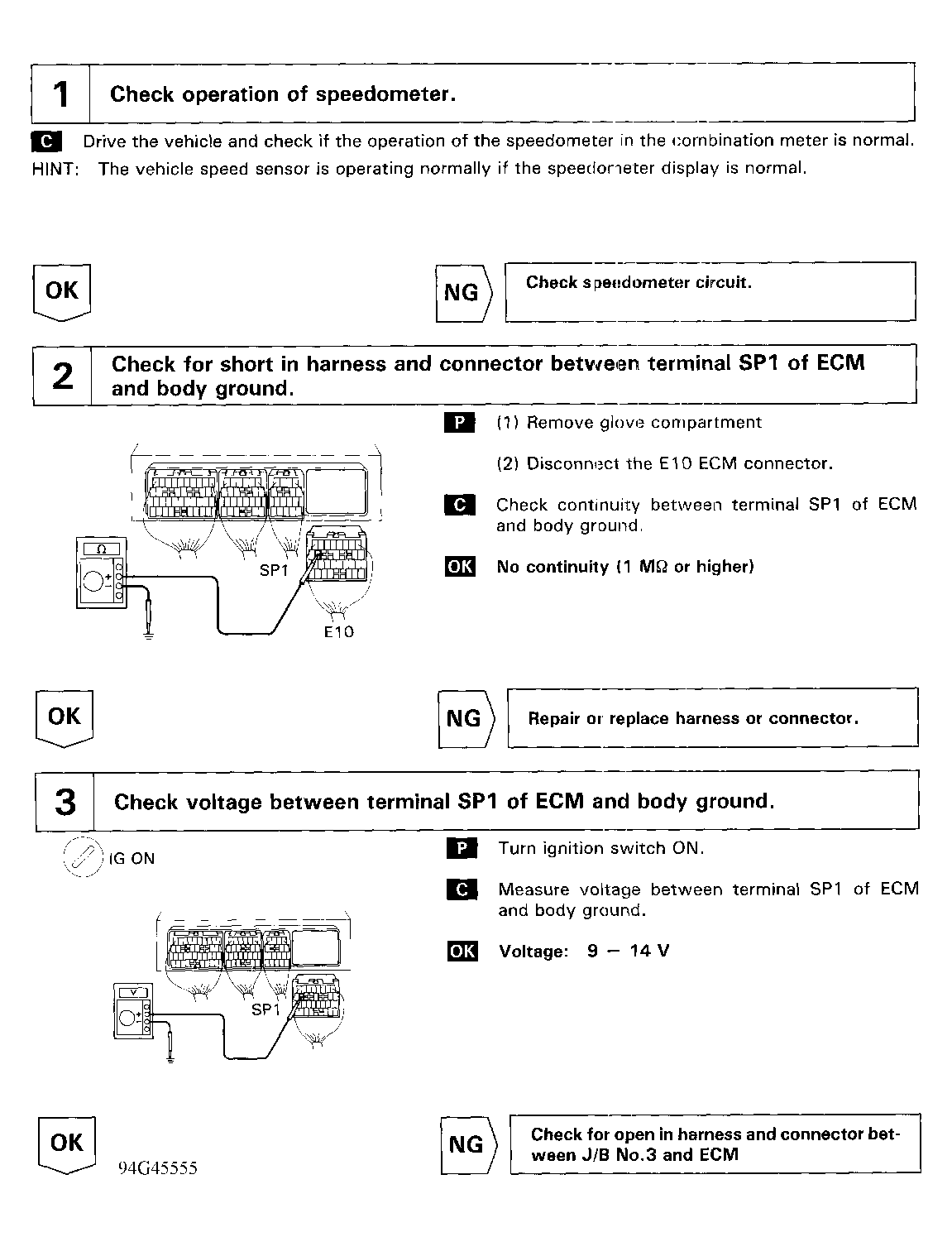

Fig 1: Code P0500 Flow Chart (1 Of 2) Vehicle Speed Sensor Malfunction
G94G45555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

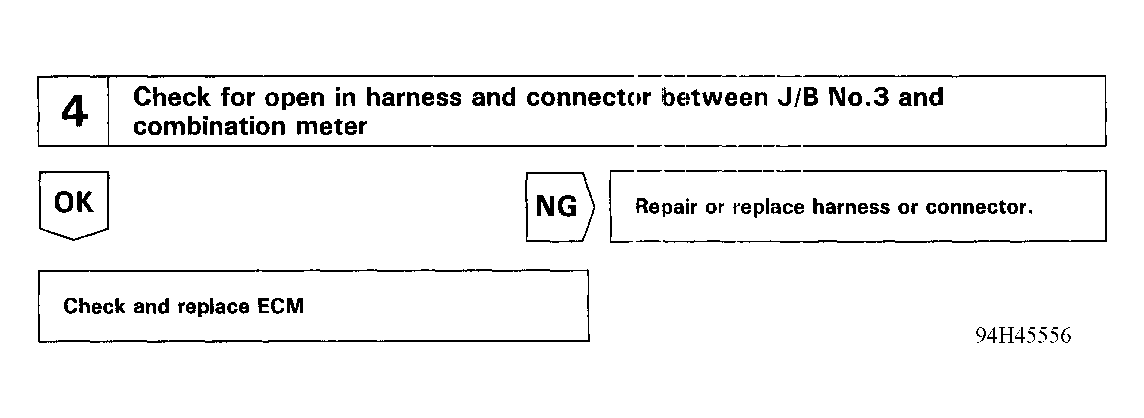

Fig 2: Code P0500 Flow Chart (2 Of 2) Vehicle Speed Sensor Malfunction
G94H45556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
