Stoplight Circuit
Stoplight Circuit

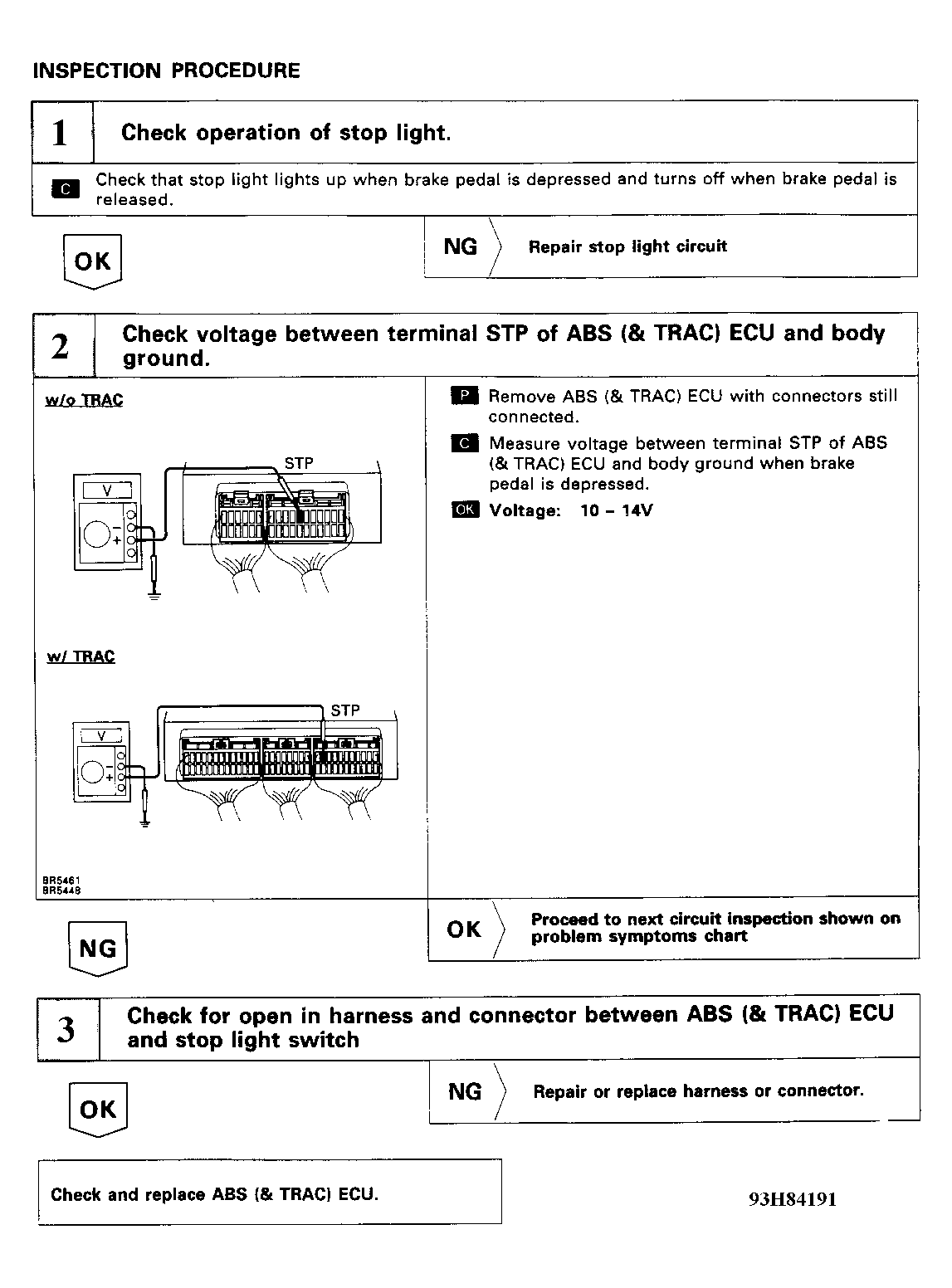

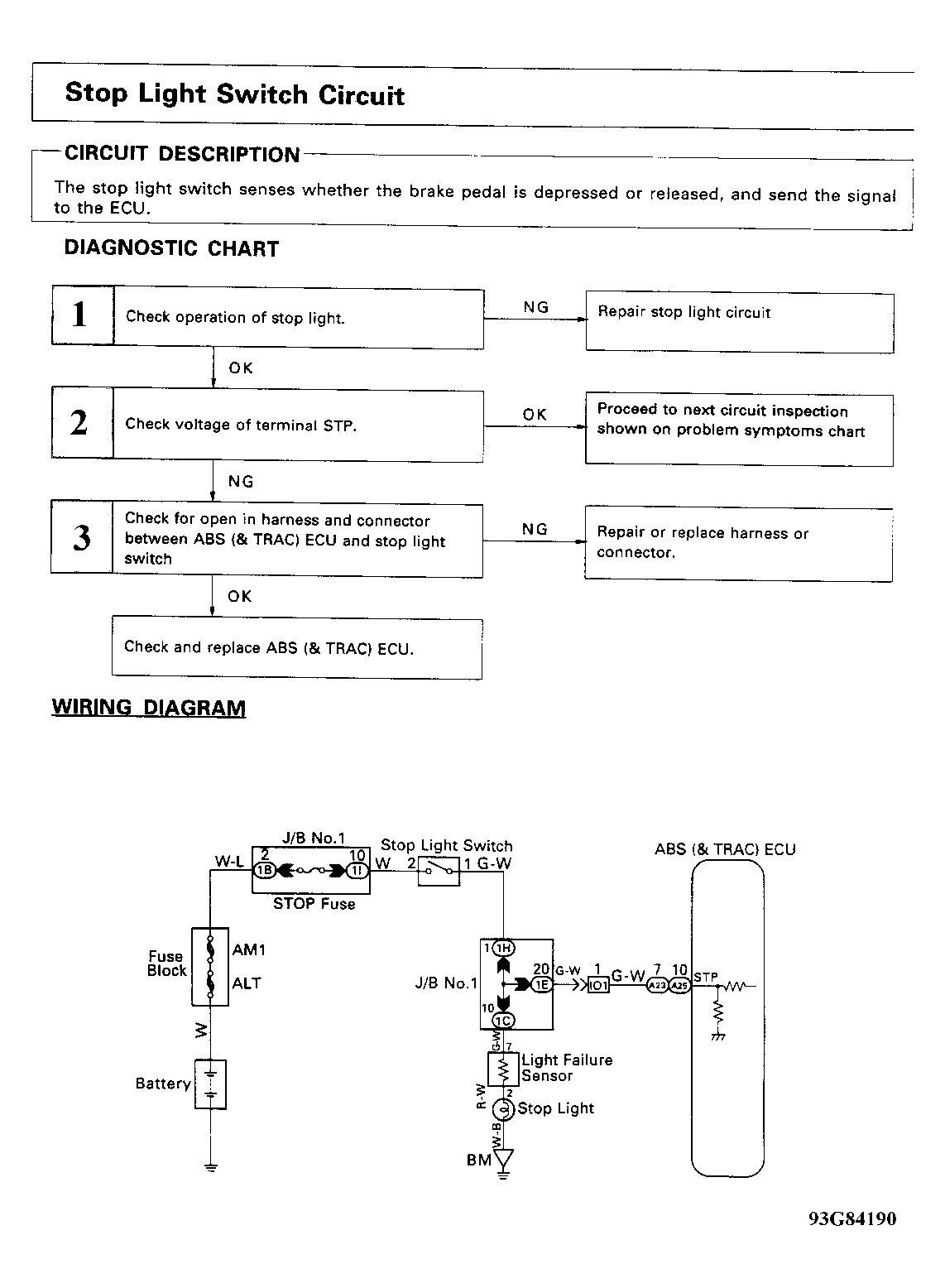

Test stoplight as outlined in Stoplight Diagnostic Chart. See
Figure
and
Figure
.
