Component Location

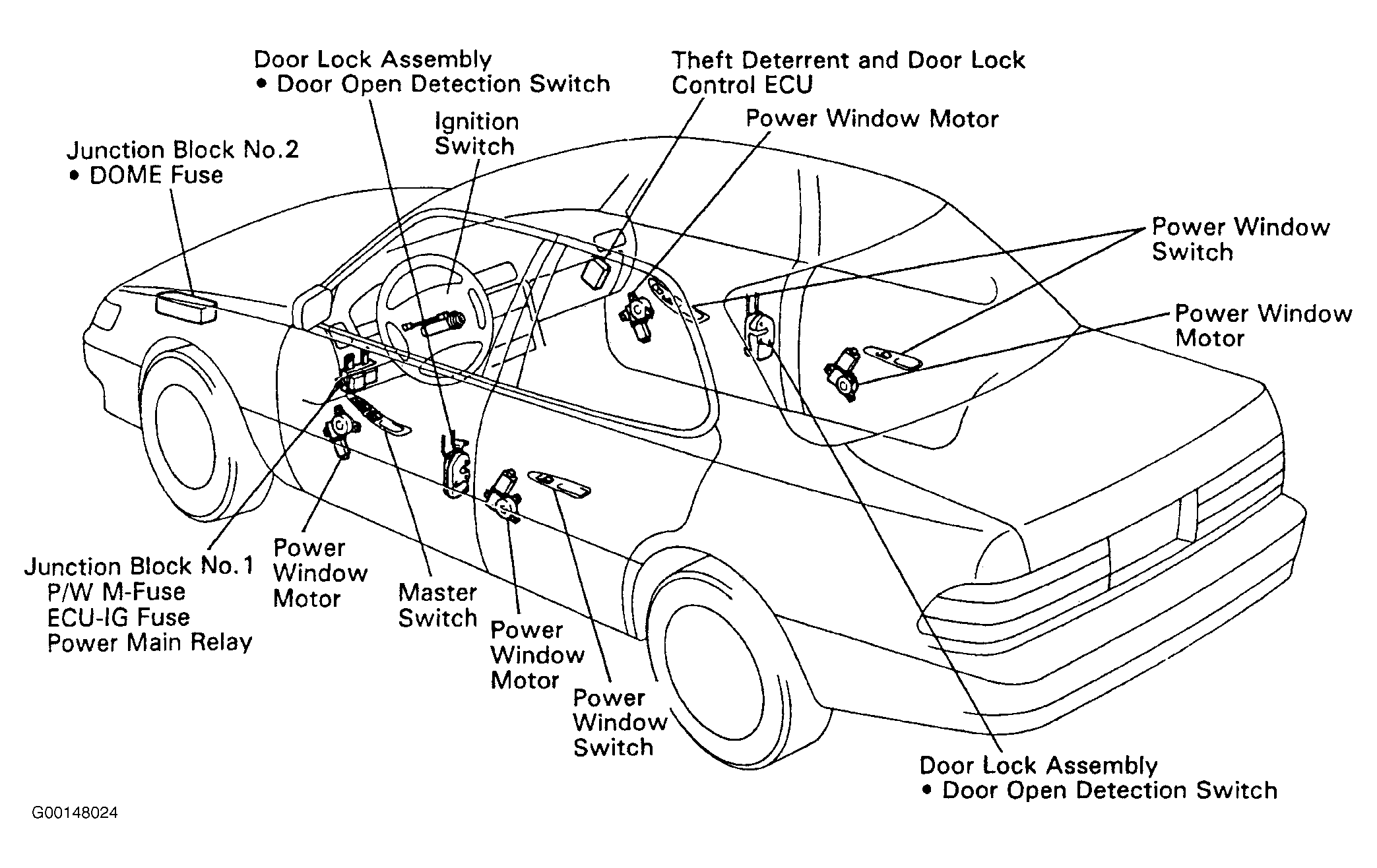

Fig 1: Locating Components Of Power Window Control System
G00148024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

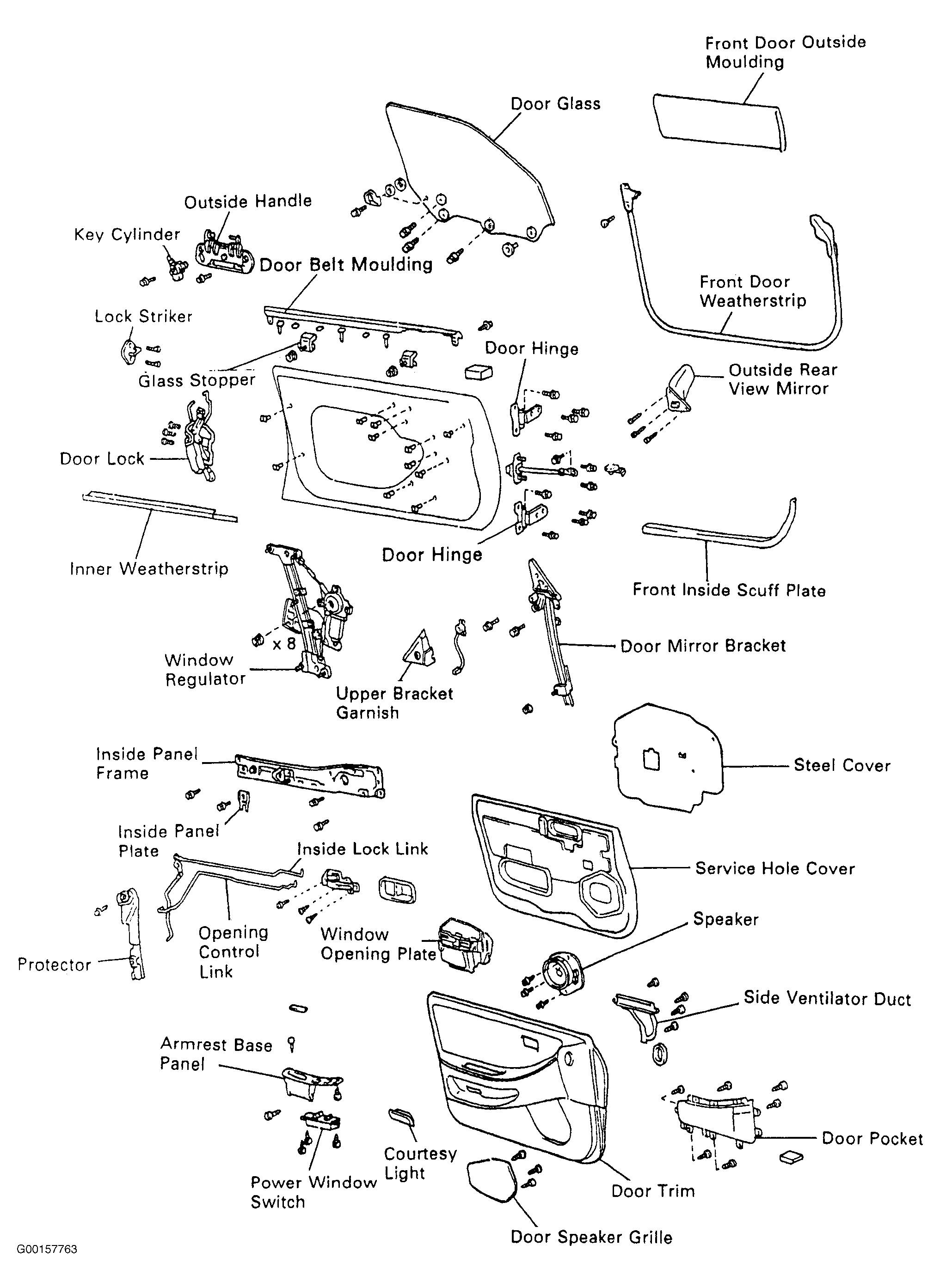

Fig 2: Locating Front Door Components
G00157763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

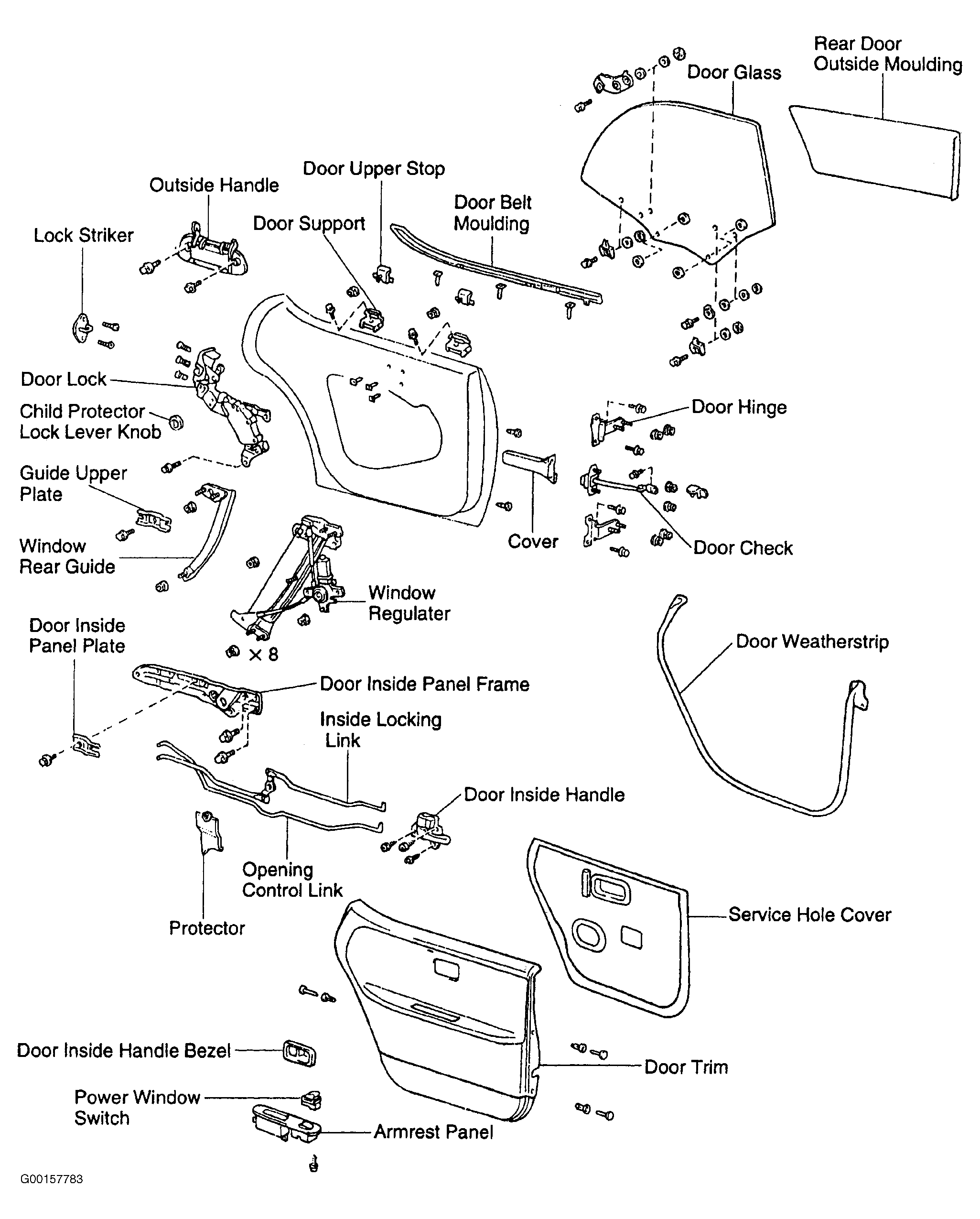

Fig 3: Locating Rear Door Components
G00157783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
