Relay Circuit

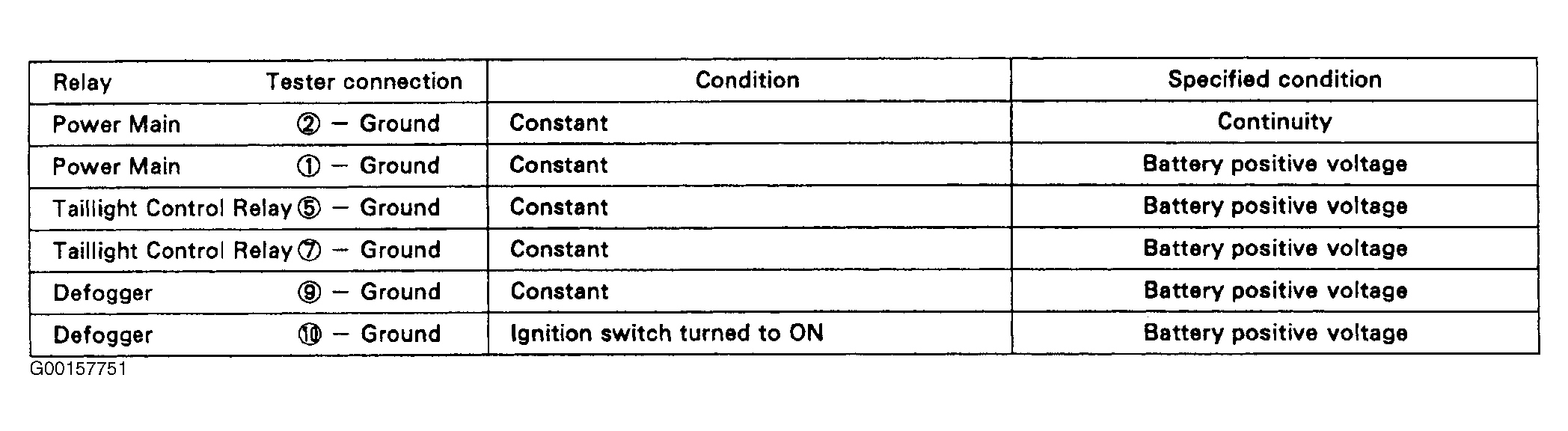

Remove power main relay. Power main relay is located on back of junction block No. 1, under driver's side of instrument panel. Test relay as specified. See Fig 1. If the circuit is not as specified, inspect the circuits connected to other parts.
