Driver's Door

  1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns counterclockwise. See Fig 1.
  2. Reverse the polarity, check that the motor turns clockwise. See Fig 1. If operation is not as specified, replace the motor.

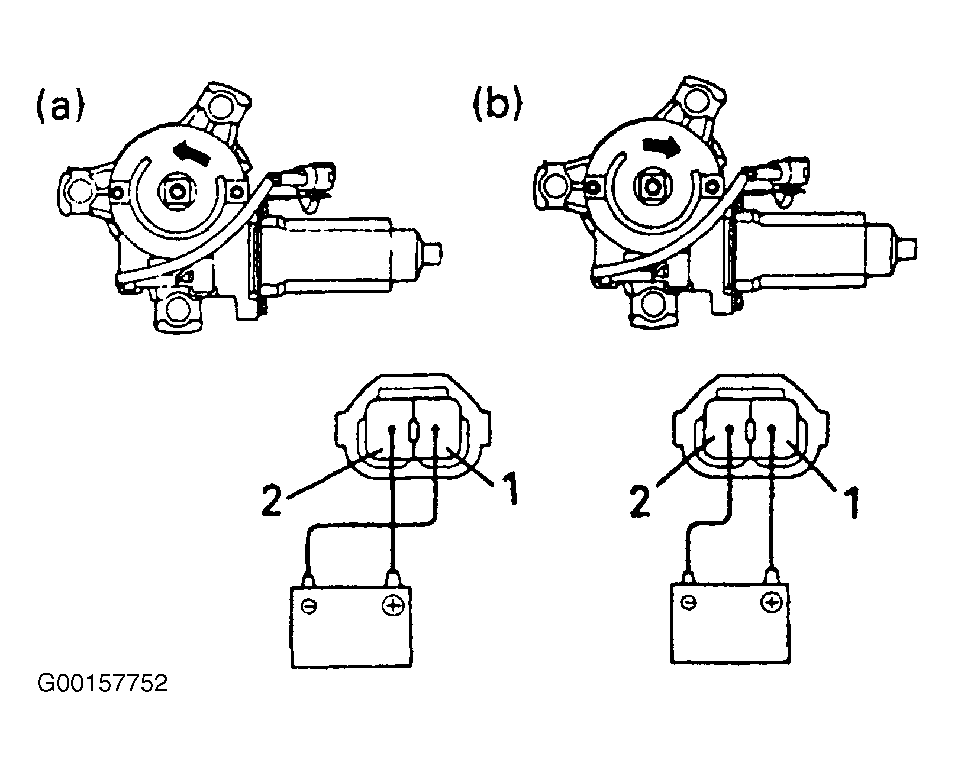

Fig 1: Testing Driver's Door Power Window Motor
G00157752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
