Rear Suspension

  1. Ensure rear camber is correct. See CAMBER ADJUSTMENT  under WHEEL ALIGNMENT PROCEDURES. Bounce both ends of vehicle several times to settle suspension. Adjust lengths of adjuster tubes so both are equal within .04" (1.0 mm). See Fig 1.
  2. Measure toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If necessary, adjust length of each adjuster tube equally to adjust toe-in.

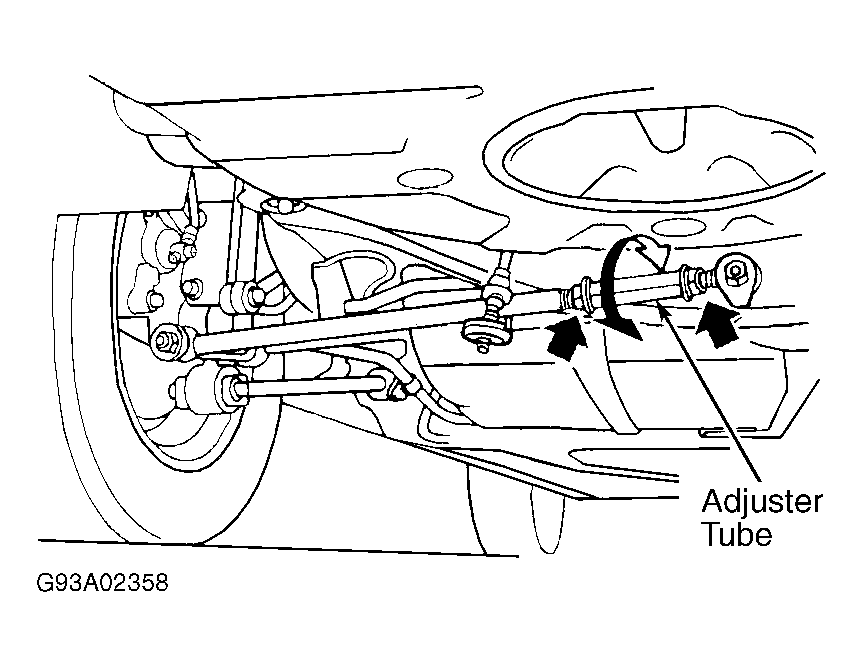

Fig 1: Rotating Adjuster Tube
G93A02358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
