Key Unlock Warning Switch Test

Remove steering column cover. Disconnect electrical connector from ignition switch. When key is in ignition, there should be continuity between terminals No. 9 and 10. See Fig 1. When key is not in ignition, there should be no continuity. If continuity is not as specified, replace key unlock warning switch.

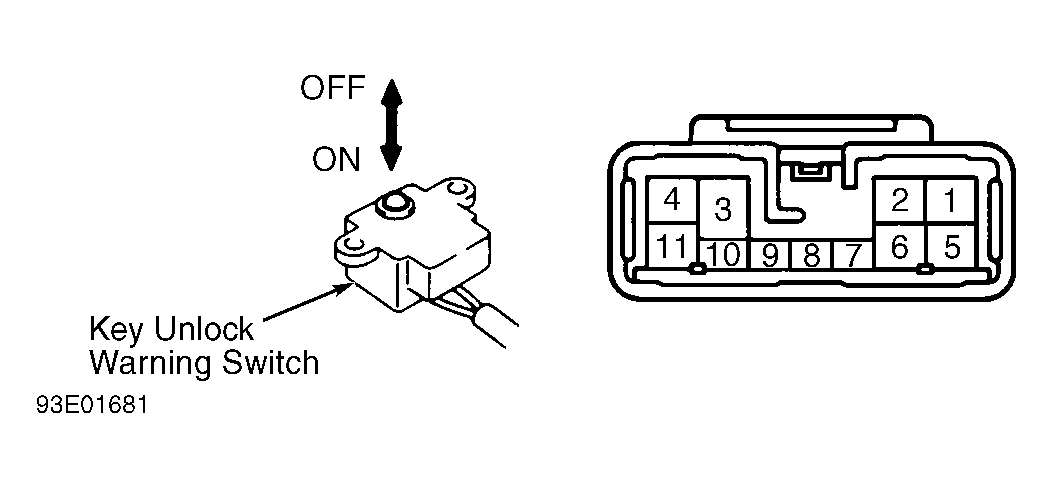

Fig 1: Testing Key Unlock Warning Switch (LS400)
G93E01681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
