Liquid Crystal Mirror Test

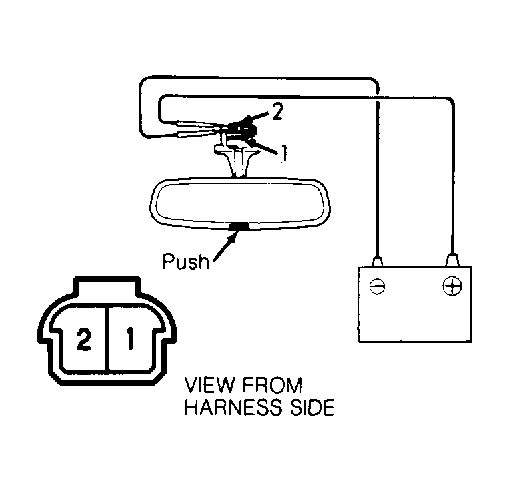

Remove mirror. Apply battery voltage across terminals of mirror connector (connect positive lead to Red wire terminal). See Fig 1. Activate mirror switch. If mirror face does not change from bright to dark, replace mirror.
Remove mirror. Apply battery voltage across terminals of mirror connector (connect positive lead to Red wire terminal). See Fig 1. Activate mirror switch. If mirror face does not change from bright to dark, replace mirror.
