Power Mirror Switch Test

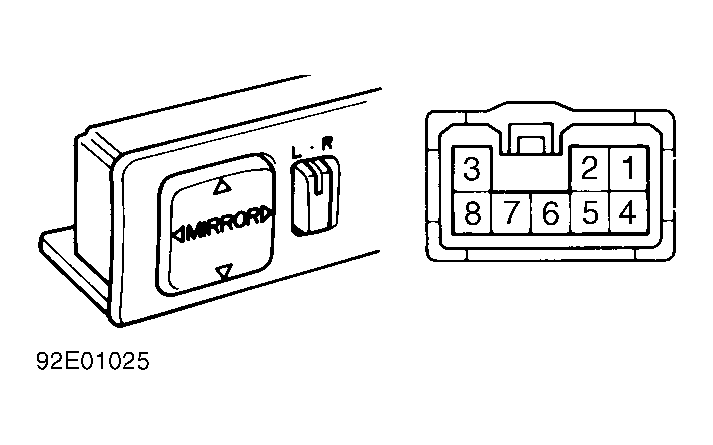

Remove switch. Check for continuity between specified terminals of switch connector. See Fig 1. See the appropriate POWER MIRROR SWITCH CONTINUITY TEST table. If there is no continuity, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Select Switch | Directional Switch | Terminals No. |
|---|---|---|
| OFF | UP Or LEFT | 7 & 8 |
| OFF | DOWN Or RIGHT | 3 & 7 |
| LEFT | UP | 3 & 6; 7 & 8 |
| LEFT | DOWN | 3 & 7; 6 & 8 |
| LEFT | LEFT | 2 & 3; 7 & 8 |
| LEFT | RIGHT | 2 & 8; 3 & 7 |
| RIGHT | UP | 3 & 5; 7 & 8 |
| RIGHT | DOWN | 3 & 7; 5 & 8 |
| RIGHT | LEFT | 1 & 3; 7 & 8 |
| RIGHT | RIGHT | 1 & 8; 3 & 7 |
