Abs Warning
Abs Warning

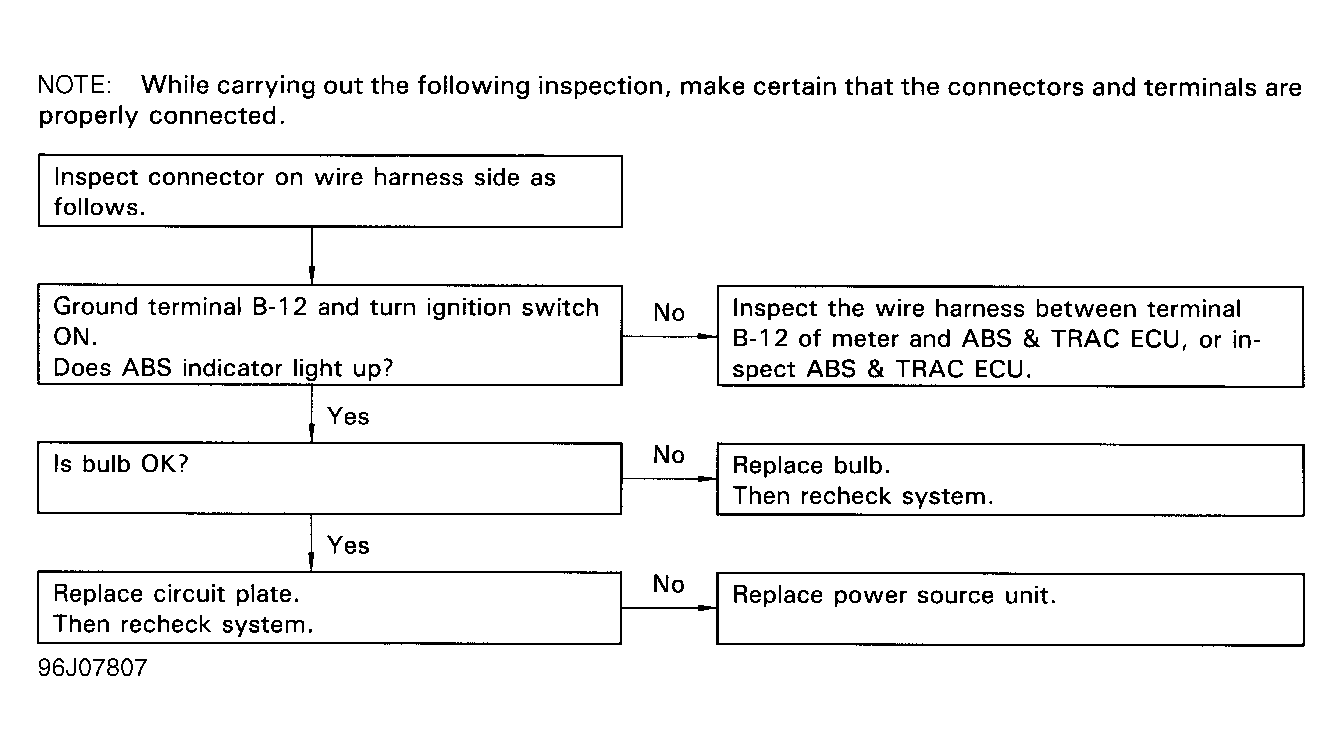

Fig 1: Abnormal Operation Or Warning Does Not Illuminate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
