Home
>>
Lexus
>>
1995
>>
LS 400
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
System Testing
>>
System Test Charts
>>
Shift Position Indicator
Shift Position Indicator

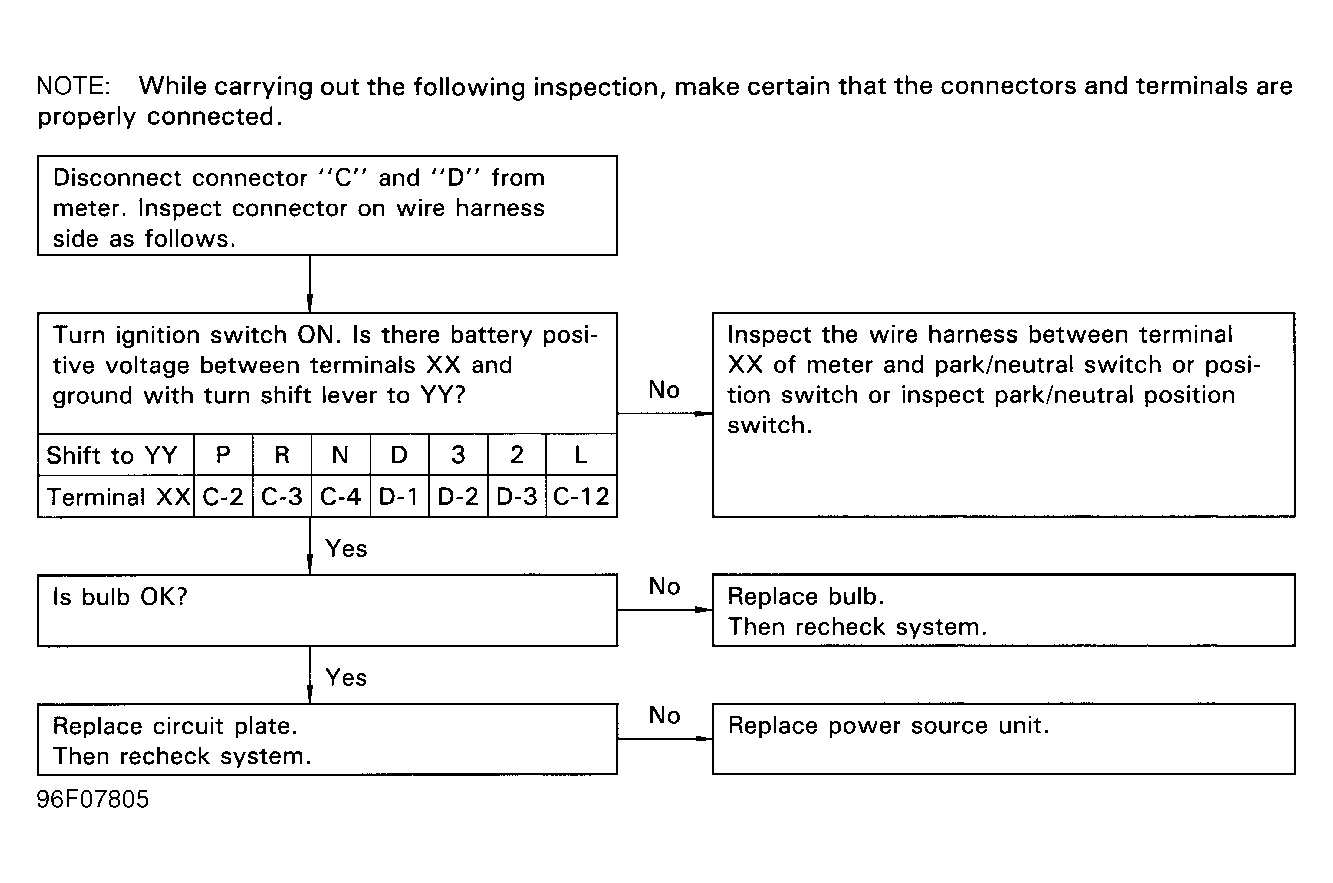

Fig 1: Abnormal Operation Or Indicator Does Not Illuminate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
