System Test Charts: Speedometer

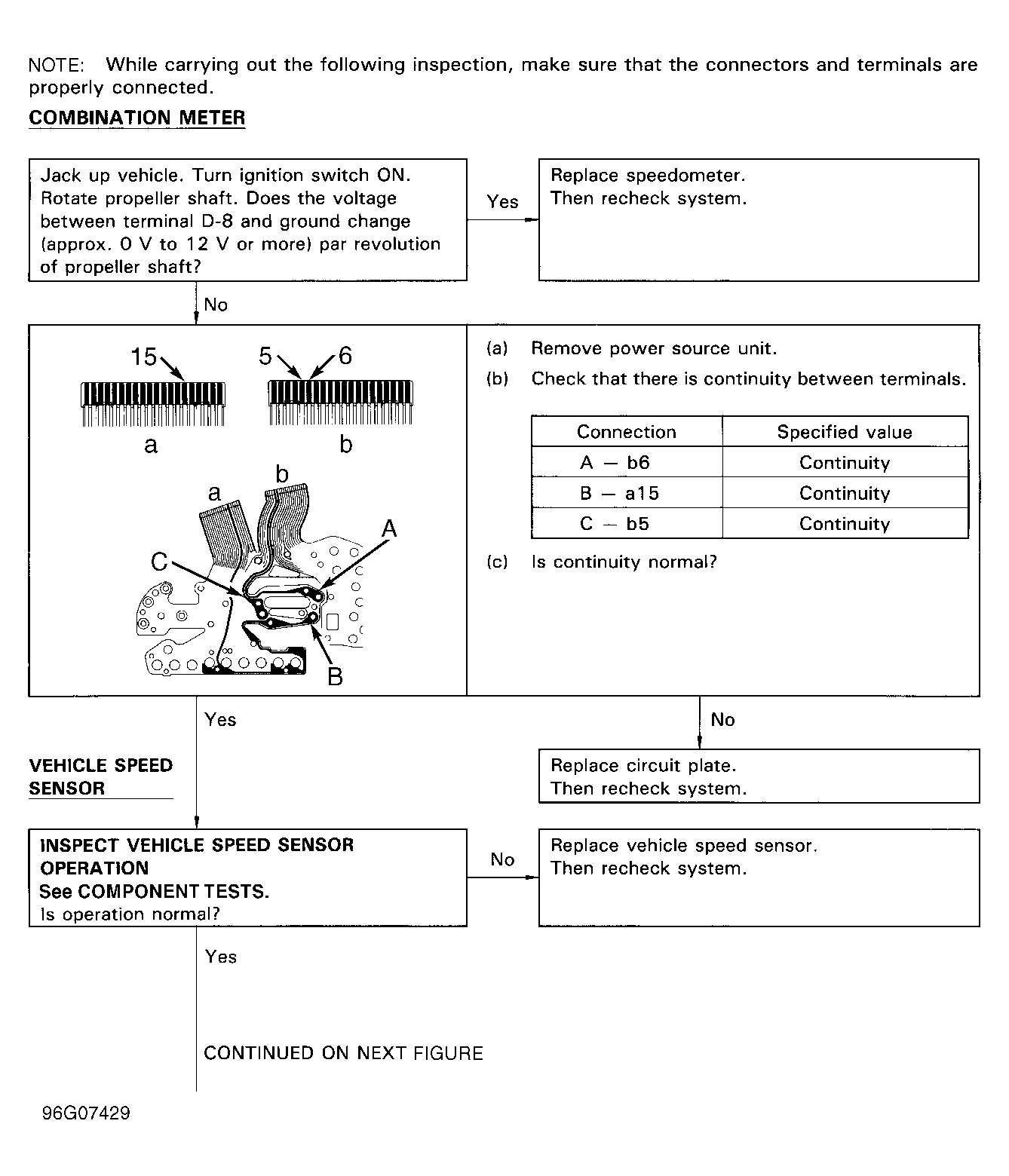

Fig 1: Does Not Operate While Driving (1 Of 2)
G96G07429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

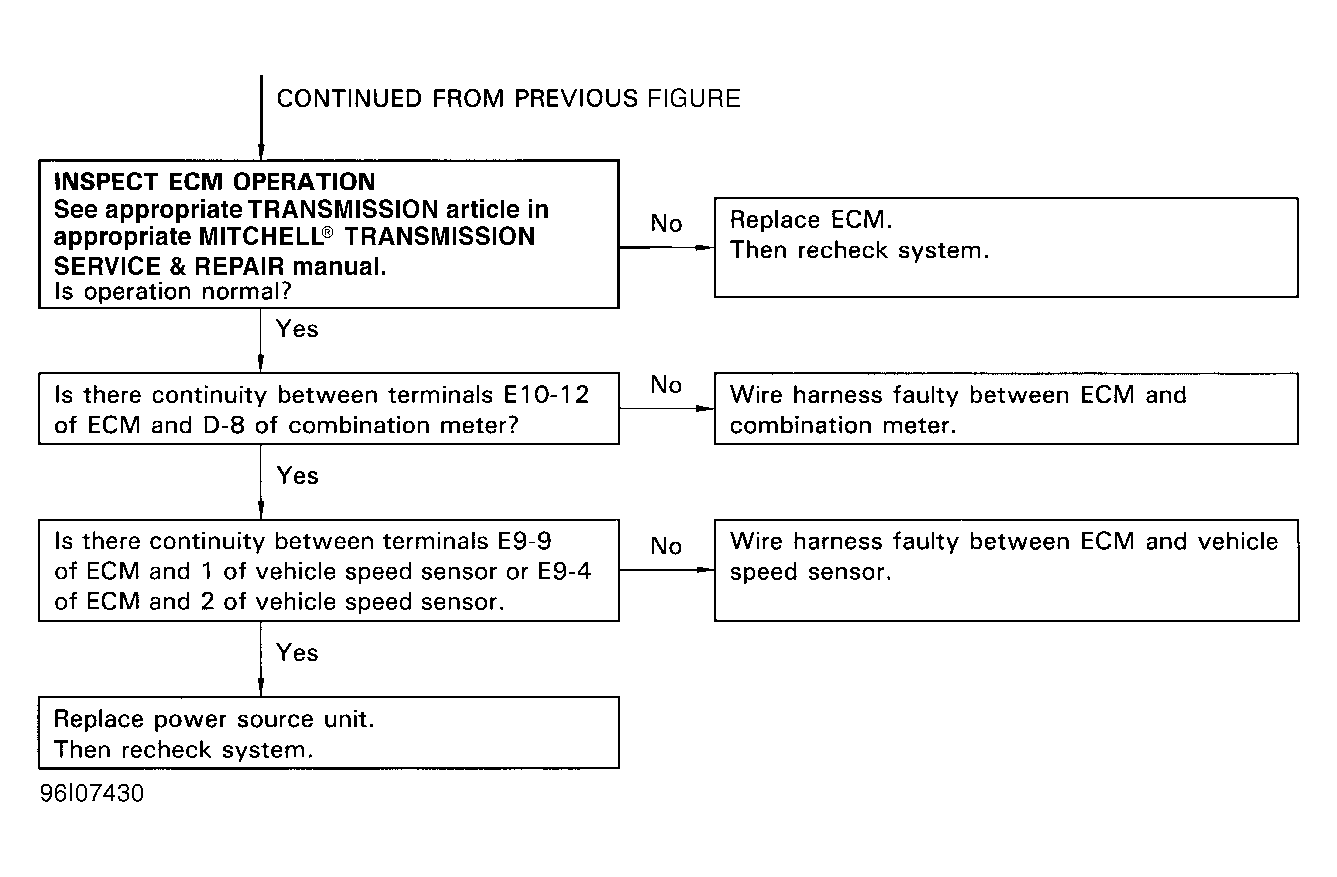

Fig 2: Does Not Operate While Driving (2 Of 2)
G96I07430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
