Shift Position Indicator
Shift Position Indicator

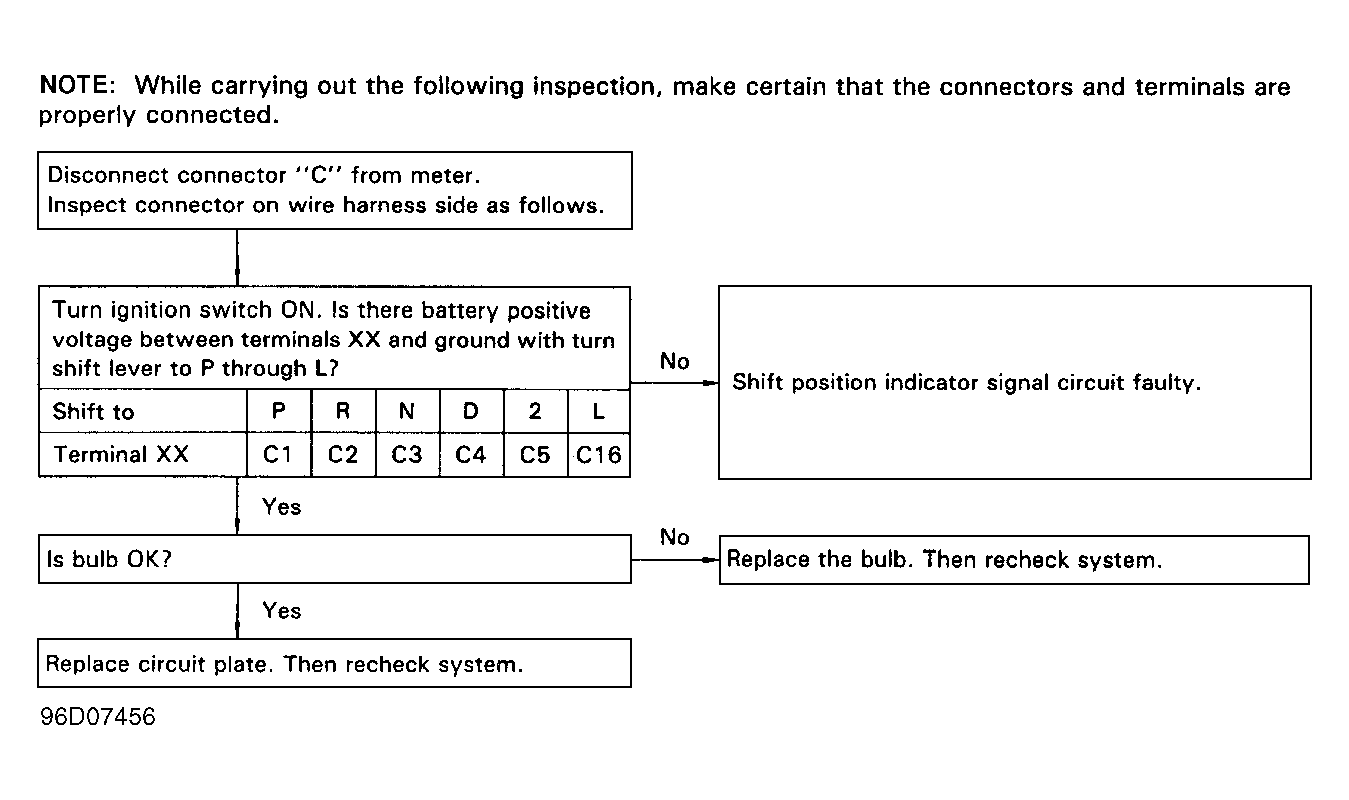

Fig 1: Abnormal Operation Or Indicator Does Not Illuminate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
