System Test Charts: Tachometer

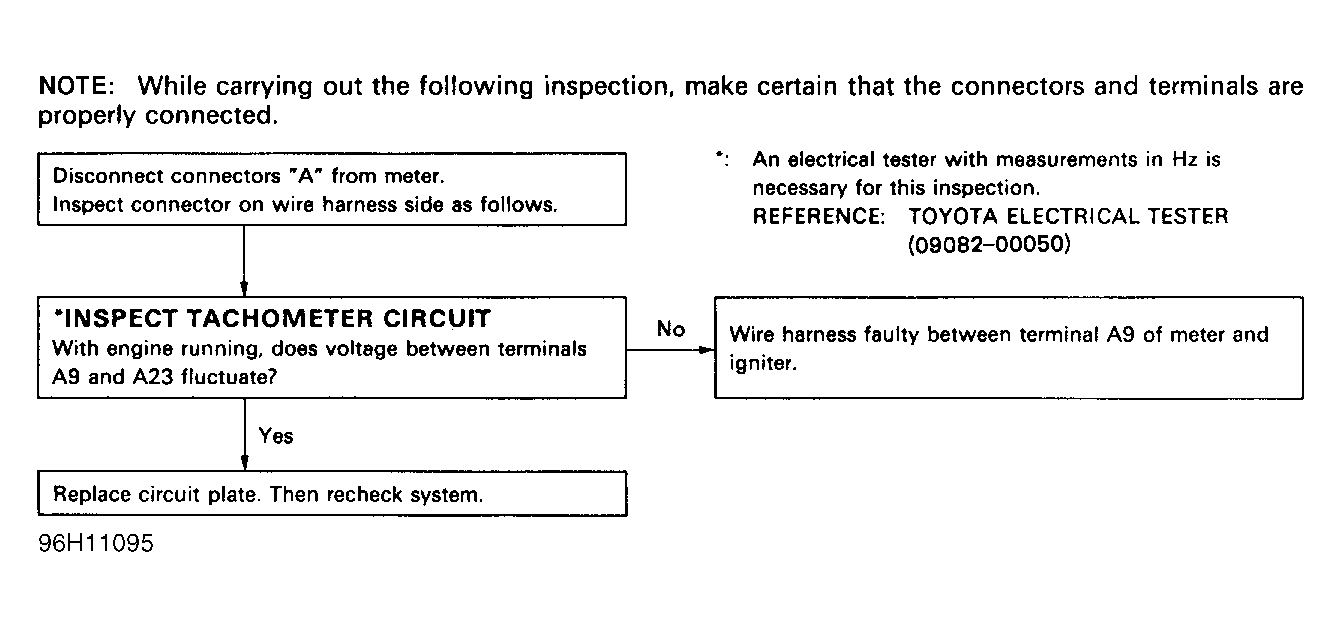

Fig 1: Does Not Operate While Engine Is Running
G96H11095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
