Code 14 - Ignition Signal Circuit

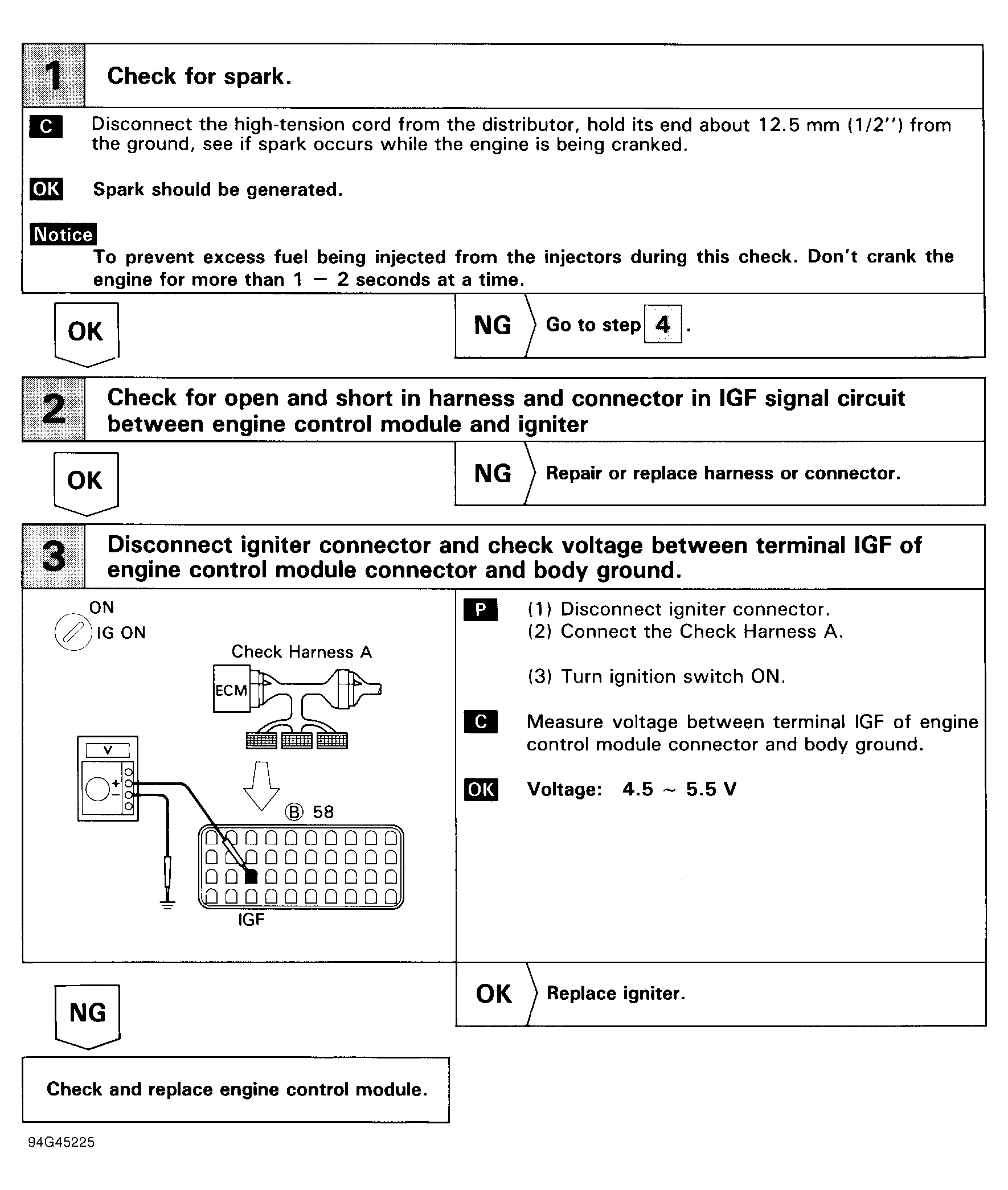

Fig 1: Code 14 Flow Chart (1 Of 4) Ignition Signal Circuit
G94G45225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

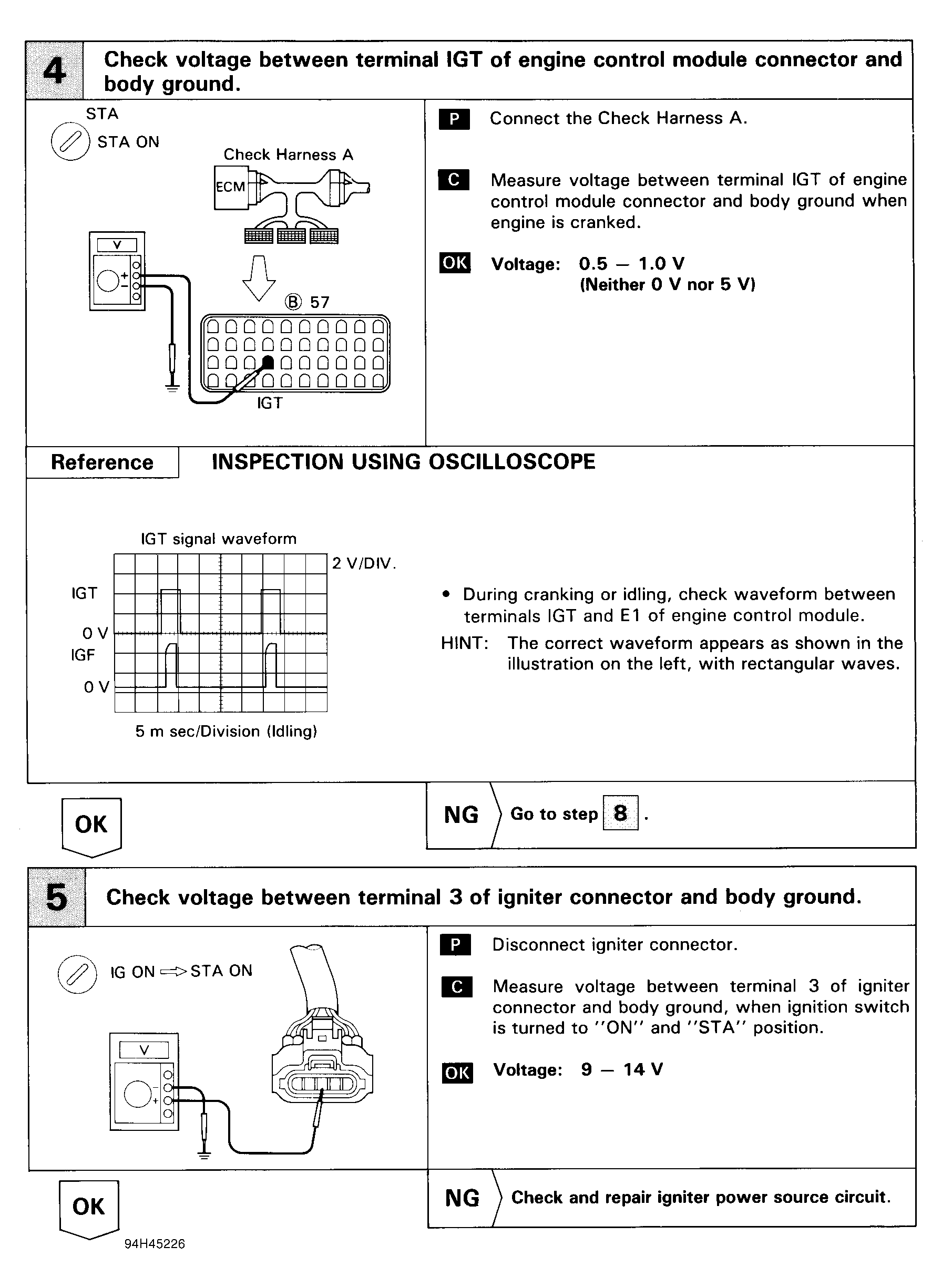

Fig 2: Code 14 Flow Chart (2 Of 4) Ignition Signal Circuit
G94H45226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

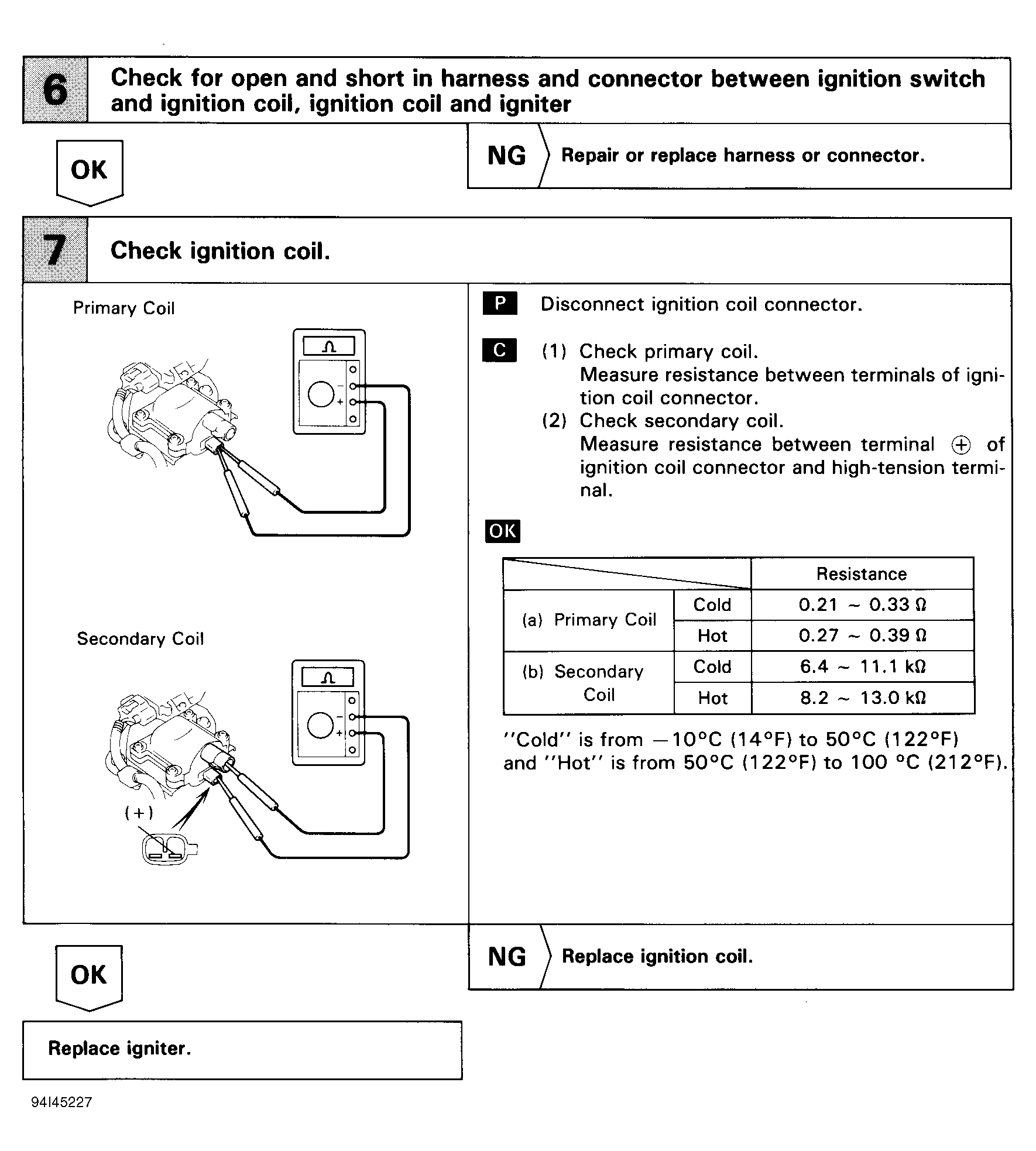

Fig 3: Code 14 Flow Chart (3 Of 4) Ignition Signal Circuit
G94I45227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

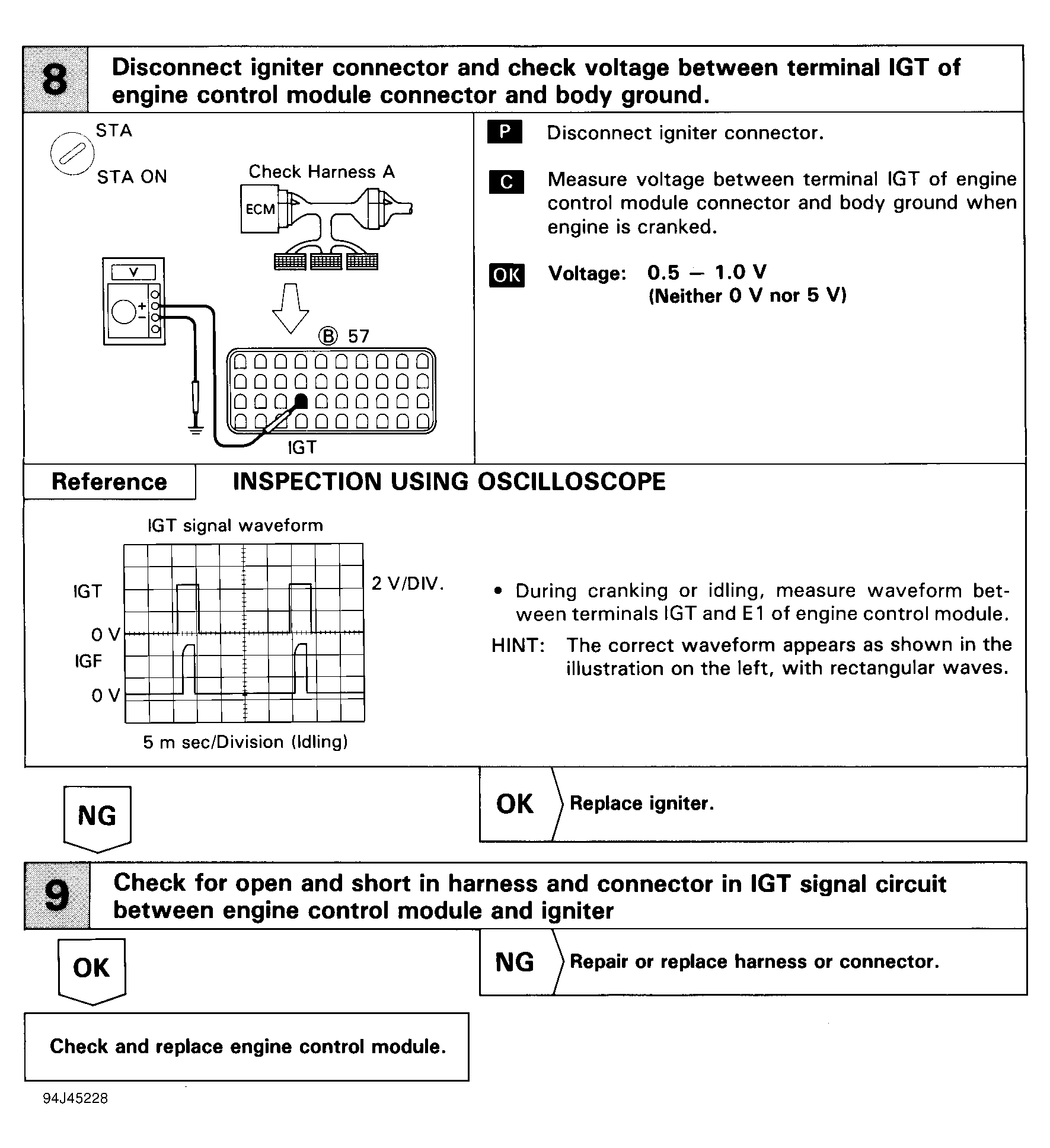

Fig 4: Code 14 Flow Chart (4 Of 4) Ignition Signal Circuit
G94J45228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
