Power Window Motor: Circuit

  1. Disconnect the connector from the motor.
  2. Connect the connector to the master switch and power window switch.
  3. Inspect the connector on the wire harness side, See Fig 1, Fig 2 and/or Fig 3 .

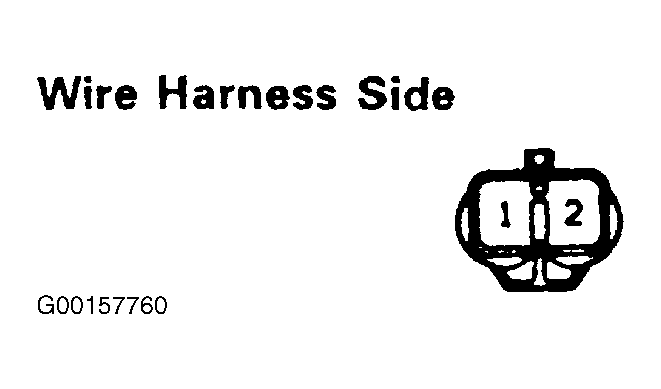

Fig 1: Identifying Power Window Motor Harness Connector Terminals
G00157760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

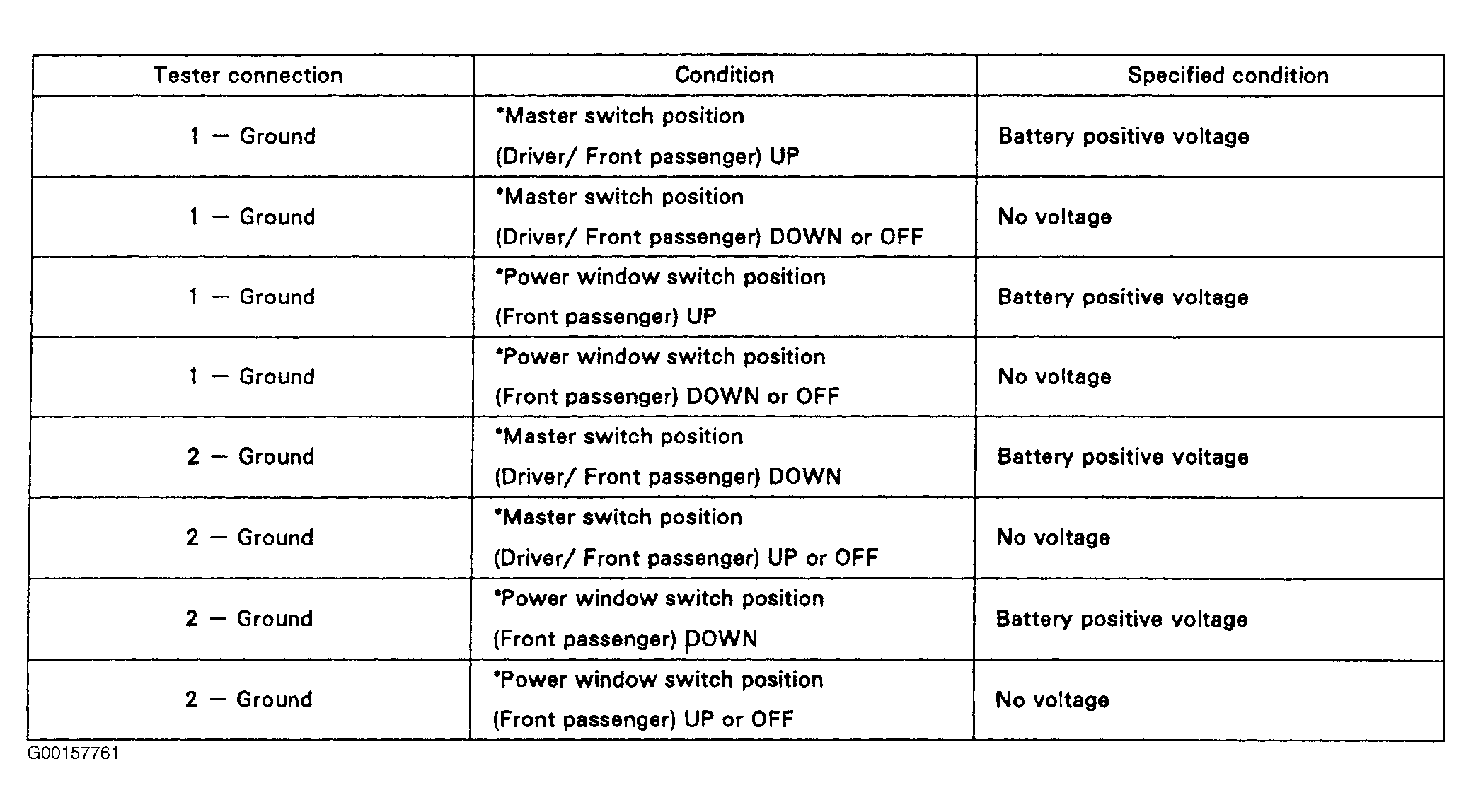

Fig 2: Testing Front Door Motor Circuit
G00157761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

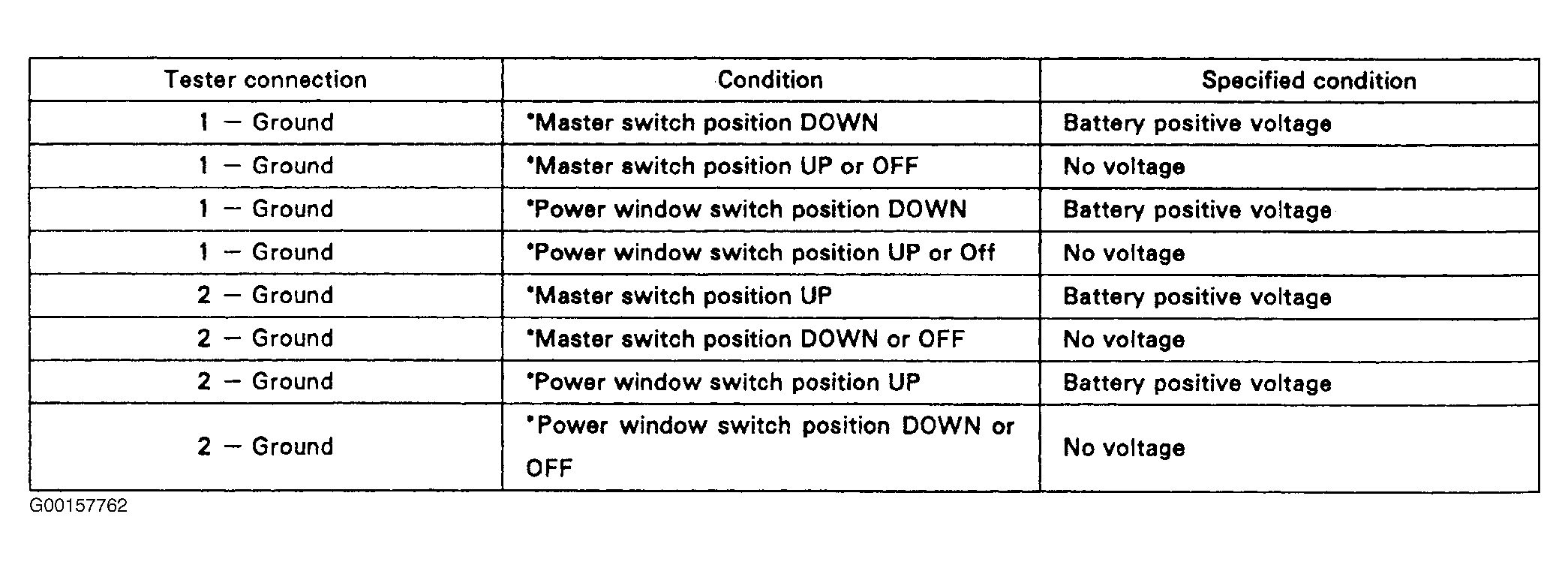

Fig 3: Testing Rear Door Motor Circuit
G00157762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
