Integration Relay

  1. Disconnect relay connector. Connect positive battery terminal to relay terminal No. 1 and No. 7. See Fig 1. Connect 3.4-watt bulb to relay terminal No. 7 and No. 9. Connect terminal No. 10 to negative battery terminal. Chime should sound and light should illuminate for 4-8 seconds.
  2. Repeat step 1), except when chime and light are working, connect terminal No. 5 to negative battery terminal. Chime and light should stop working. Replace relay if operation is not as specified.
  3. Check integration relay circuit for open or short circuit. See WARNING SYSTEMS wiring diagram under WIRING DIAGRAMS . Repair as necessary.

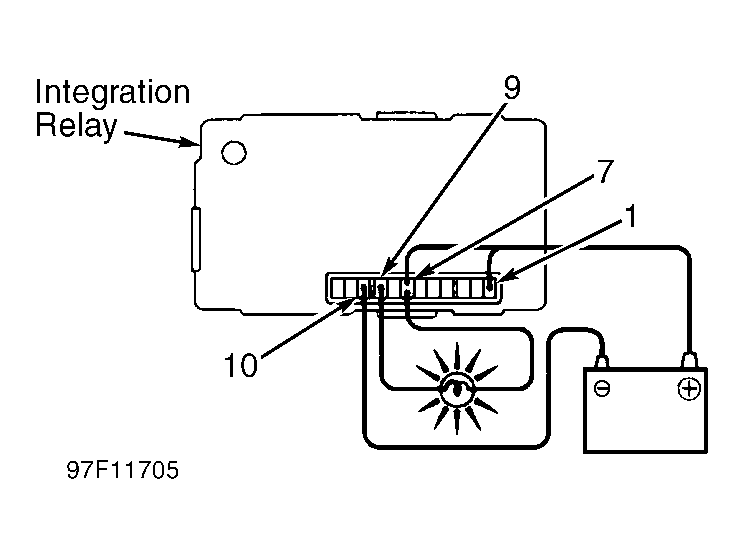

Fig 1: Testing Integration Relay
G97F11705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
