Control Units
CONTROL UNITS

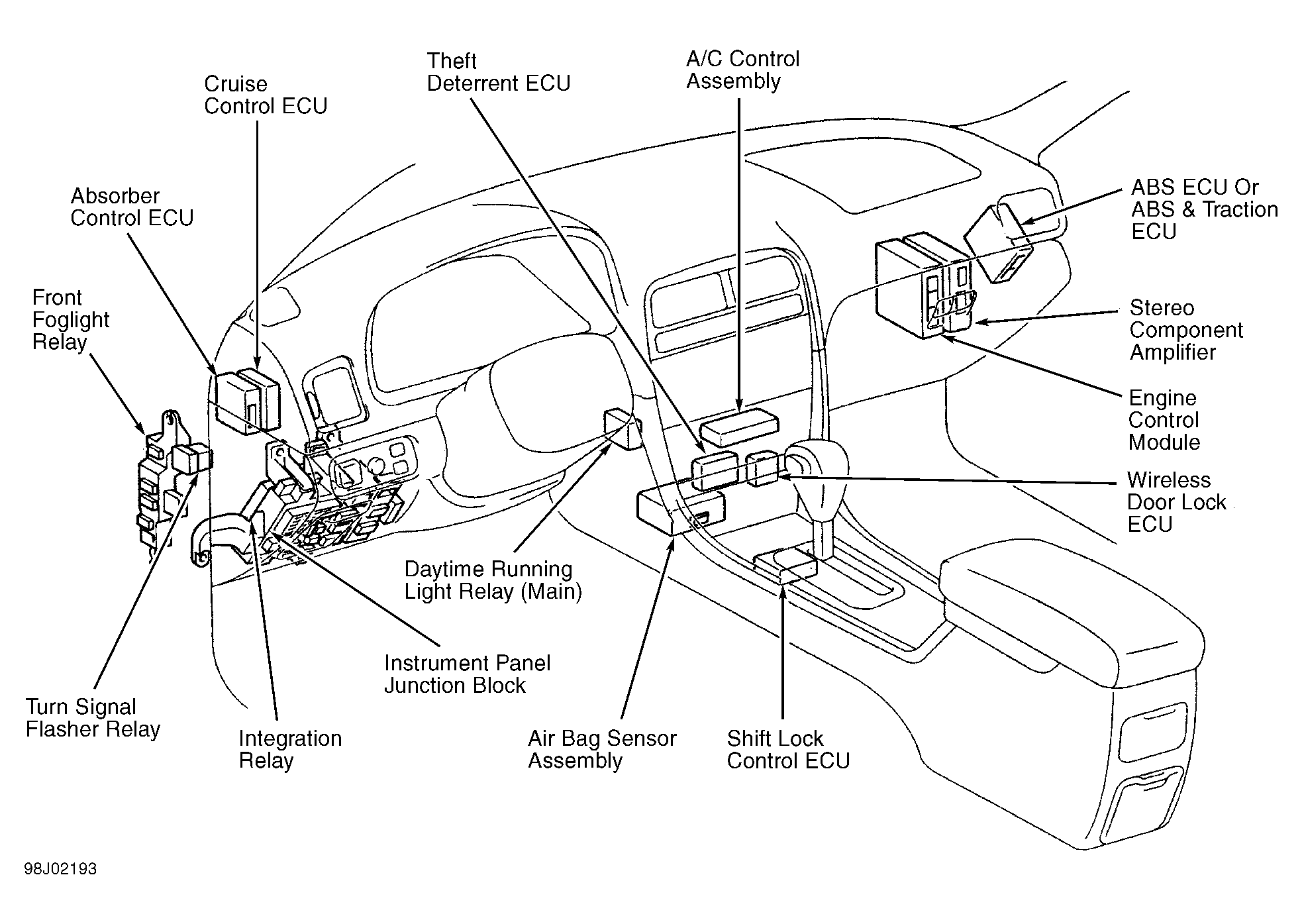

| Component | Component Location |
|---|---|
| ABS ECU | Behind right side of dash. See Figure. |
| ABS & Traction ECU | Behind right side of dash. See Figure. |
| Absorber Control ECU | Behind left side of dash. See Figure. |
| A/C Blower Motor Linear Controller | Behind left side of dash. |
| A/C Control Assembly | Under center of dash, behind center console. See Figure. |
| Air Bag Sensor Assembly | Under center of dash, forward of center console. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Seat Position Control ECU | Under driver's seat. |
| Shift Lock Control ECU | Under center console, beside shift lever. See Figure. |
| Theft Deterrent ECU | Under center of dash, forward of center console. See Figure. |
| Wireless Door Lock ECU | Under center of dash, forward of center console. See Figure. |
