Home >> Lexus >> 1998 >> LX 470 >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Service Point Locations

Service Point Locations

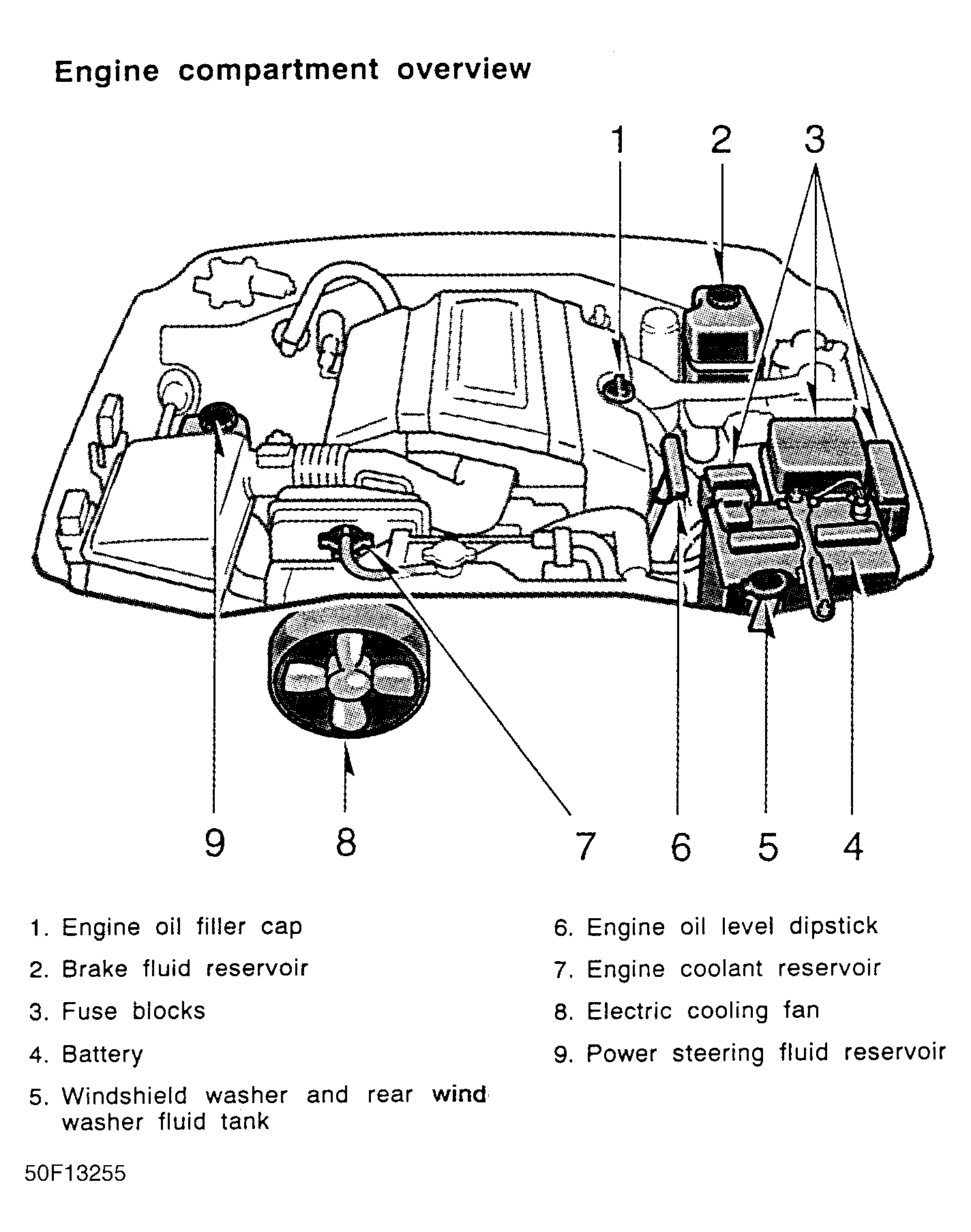

Fig 1: Service Point Locations (Toyota)
G50F13255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

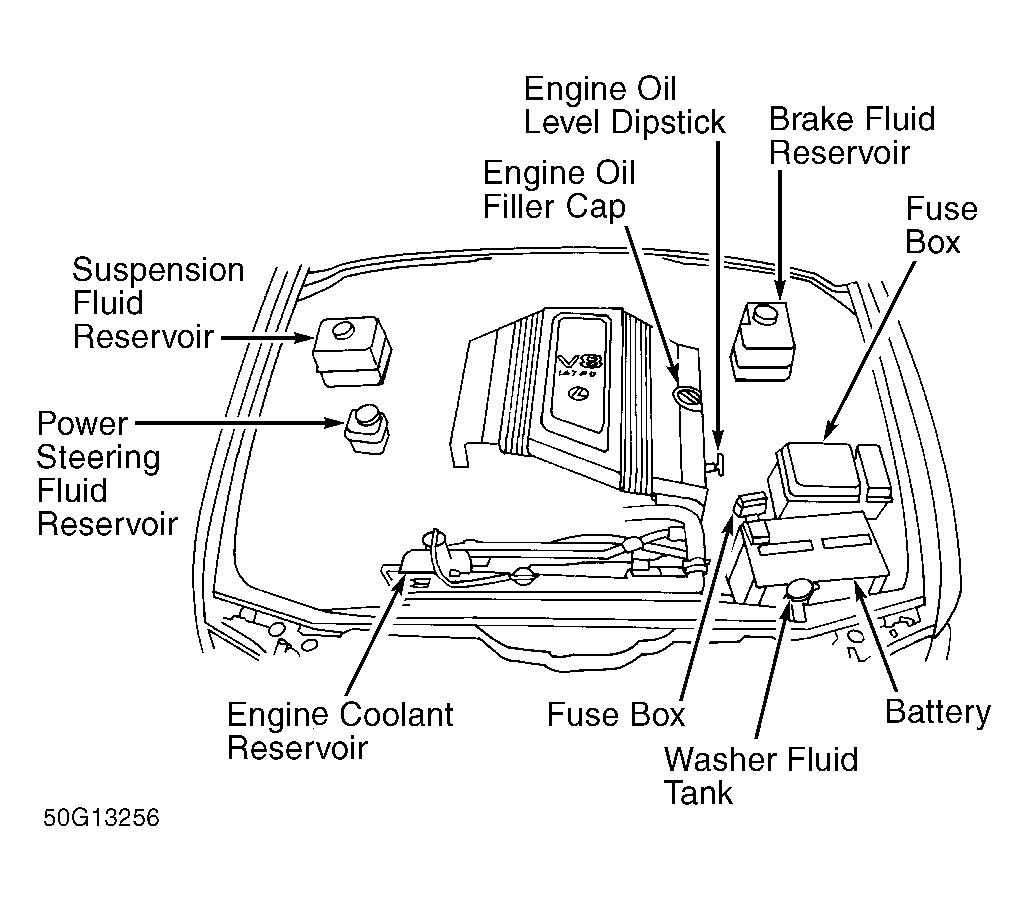

Fig 2: Service Point Locations (Lexus)
G50G13256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Lift Point Locations
G50G13132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
