Power Mirror Switch: Notes

Remove power mirror switch. Check resistance or continuity between specified power mirror switch terminals (component side) with switch in specified position. See appropriate POWER MIRROR SWITCH RESISTANCE or POWER MIRROR SWITCH CONTINUITY table. See Fig 1-Fig 4 . If resistance or continuity is not as specified, replace power mirror switch.

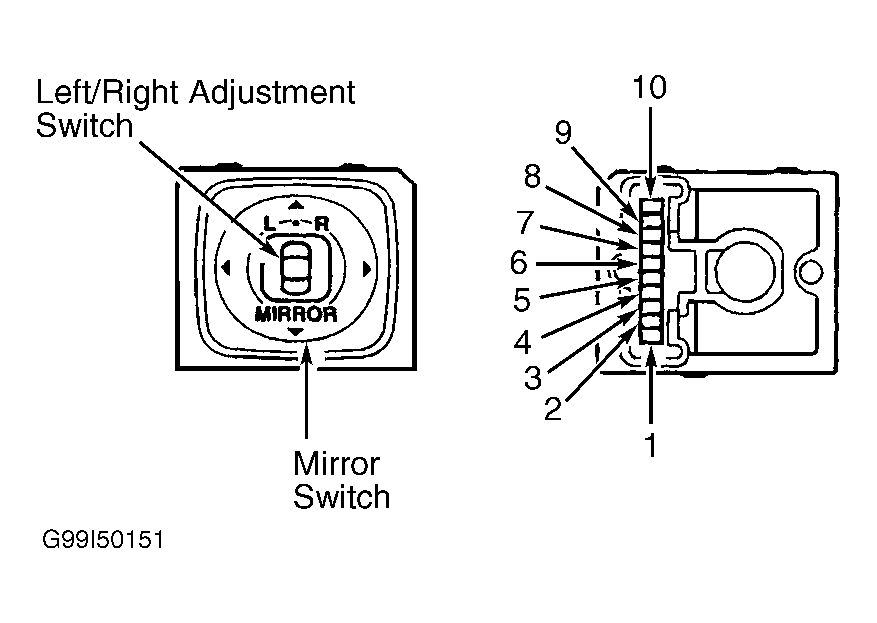

Fig 1: Power Mirror Switch & Connector (ES300 & LX470)
G99I50151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

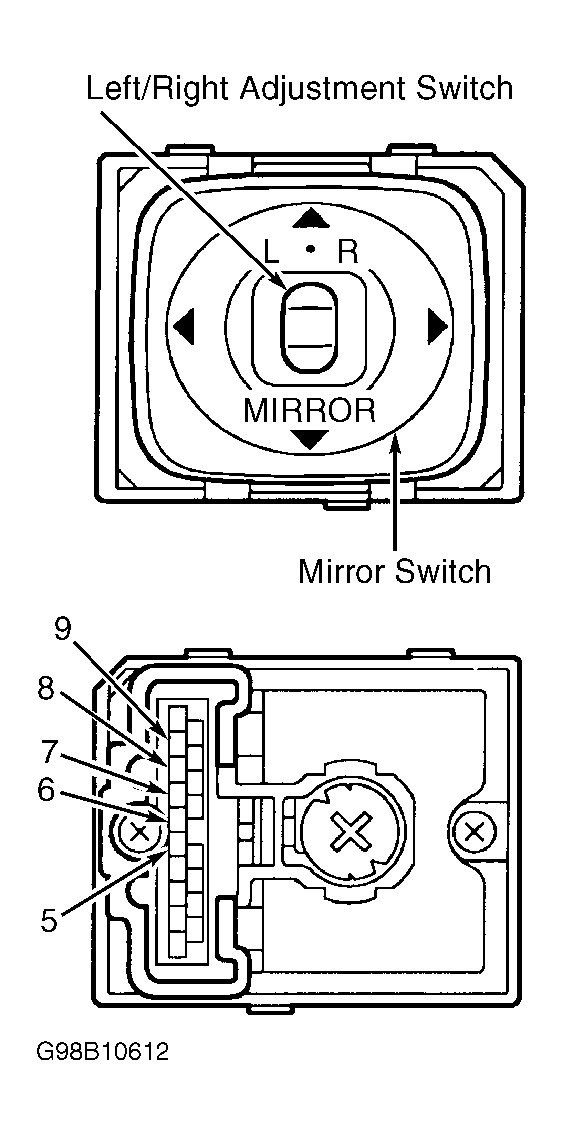

Fig 2: Power Mirror Switch & Connector (GS300, GS400 & LS400)
G98B10612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

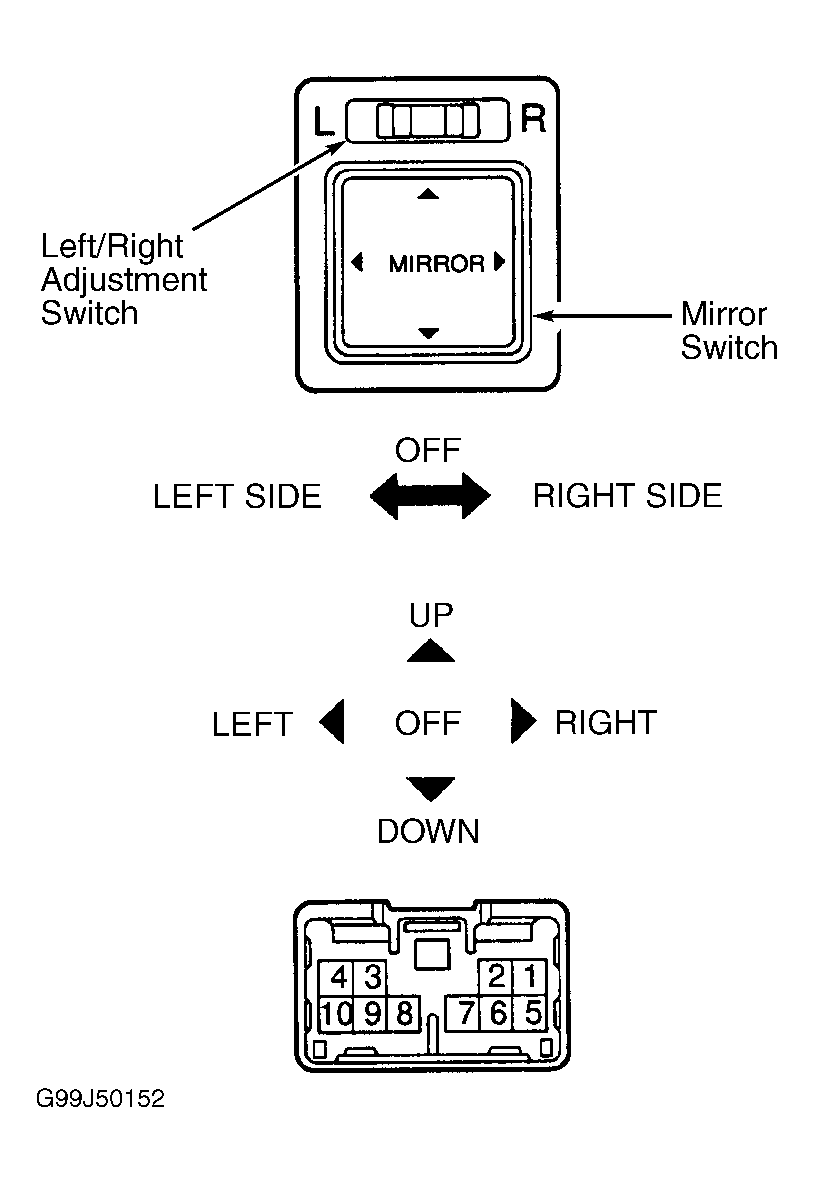

Fig 3: Power Mirror Switch & Connector (RX300)
G99J50152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

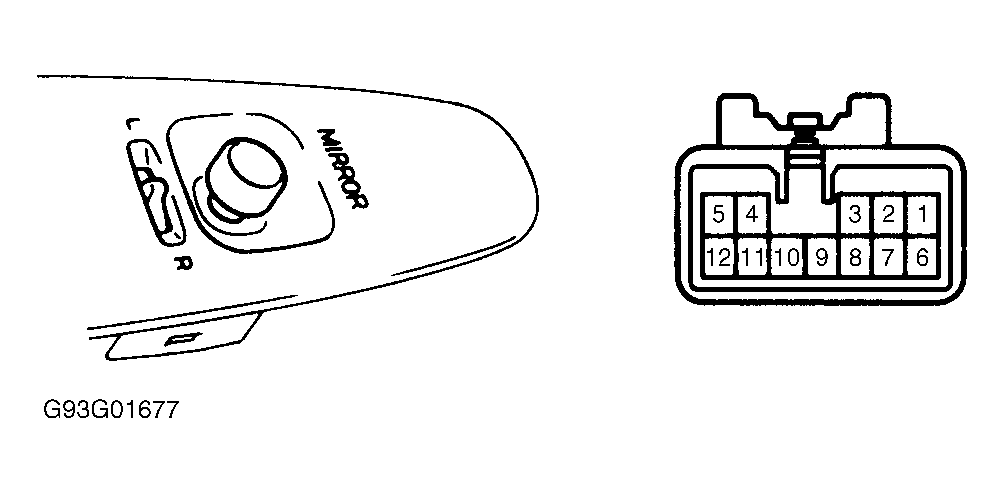

Fig 4: Power Mirror Switch & Connector (SC300 & SC400)
G93G01677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
