Home >> Lexus >> 2000 >> SC 400 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator & Regulator >> Removal & Installation >> SC400 >> Components

Removal & Installation : SC400: Components

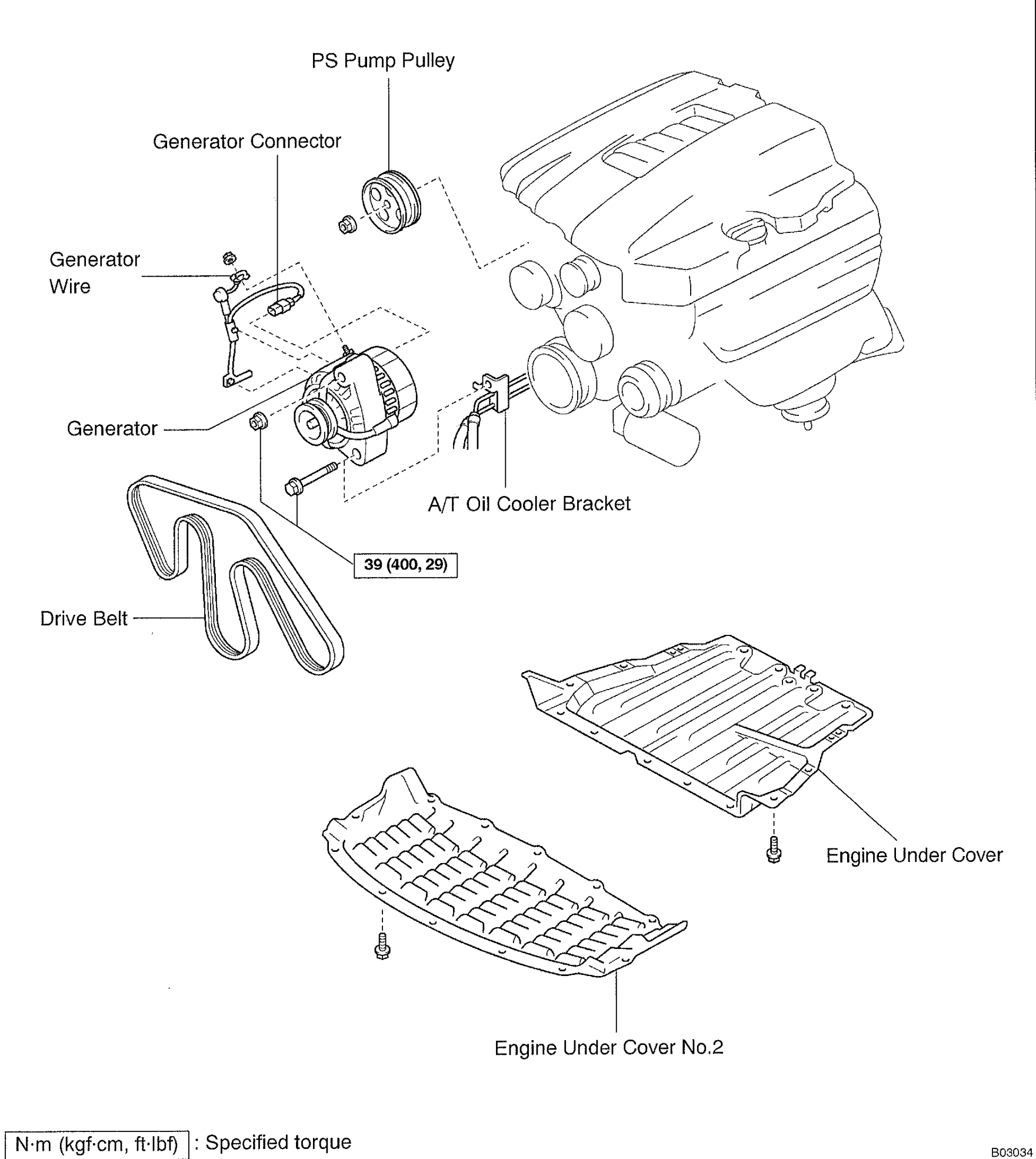

Fig 1: View Of Generator Removal & Installation Components With Torque Specifications
G00498792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
