Home >> Lexus >> 2001 >> ES 300 >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs Actuator >> Components

Abs Actuator: Components

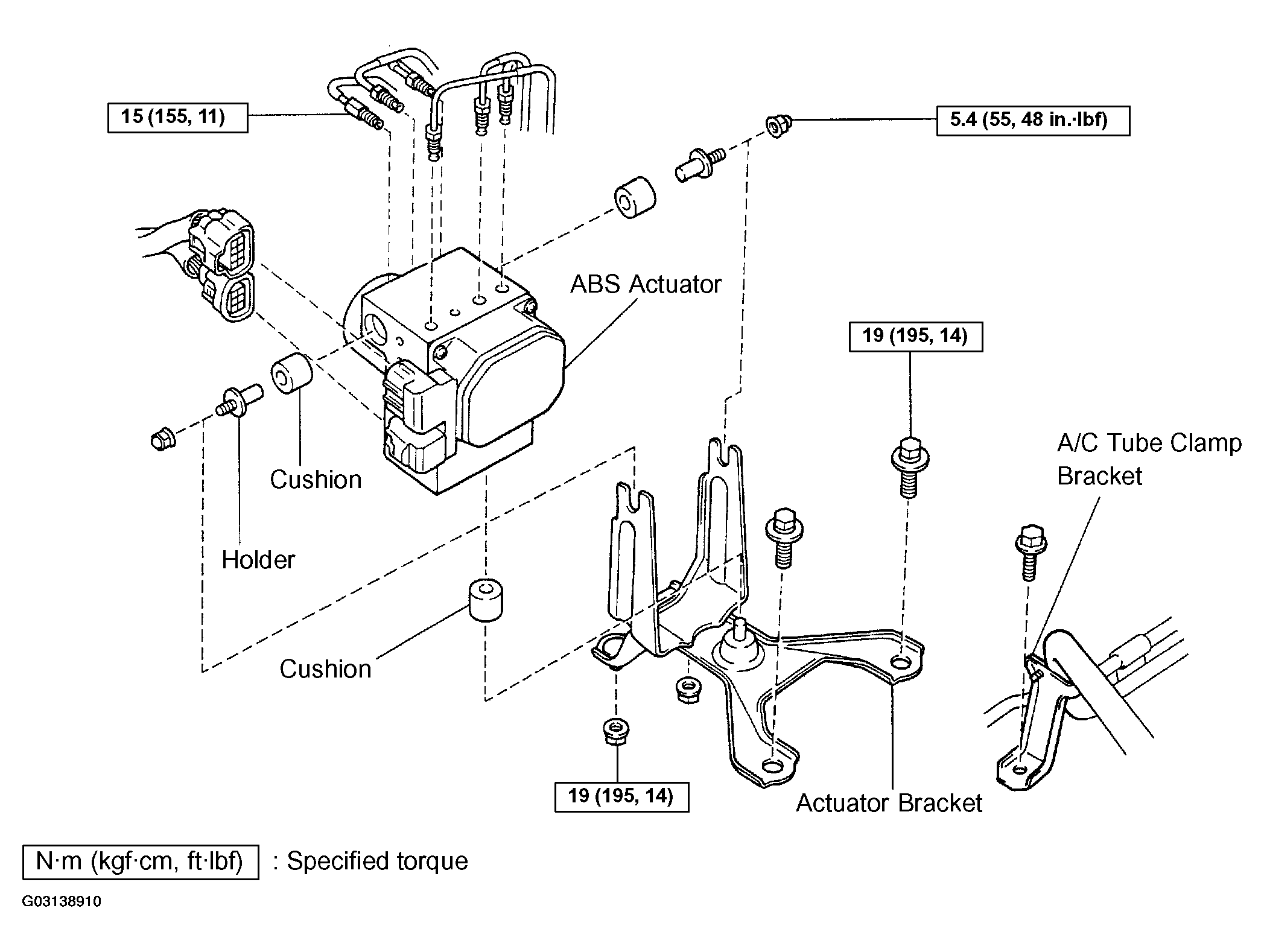

Fig 1: Exploded View Of ABS Actuator Assembly

G03138910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
