Rear Speed Sensor: Removal

  1. Disconnect speed sensor connector.
    1. Remove the rear seat cushion and rear seatback.
    2. Disconnect the speed sensor connector, and pull out the sensor wire harness with the grommet.

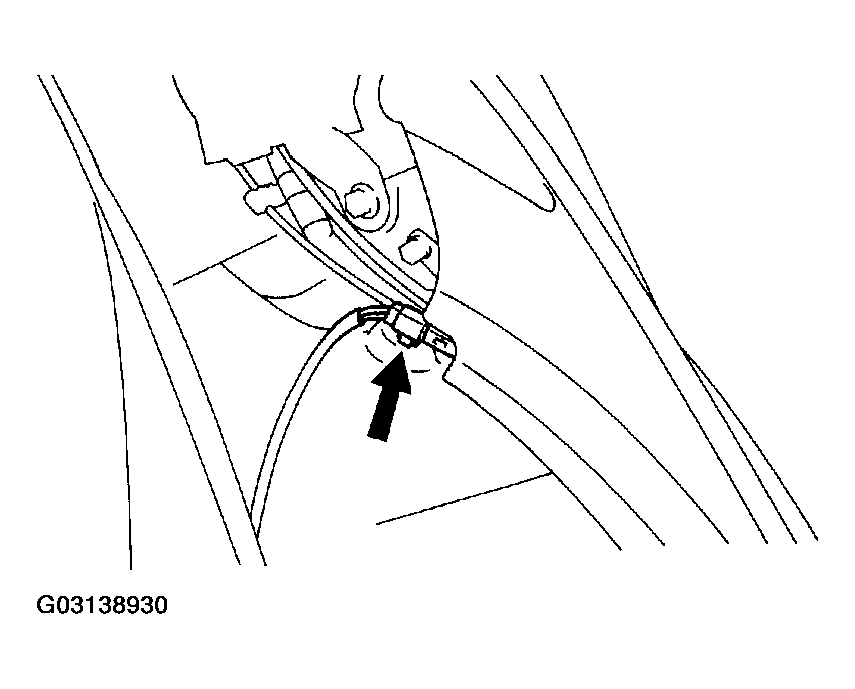

    Fig 1: Locating Rear Speed Sensor Connector
    G03138930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove speed sensor.
    1. Remove the 2 clamp bolts holding the sensor wire harness to the body and shock absorber.
      1. Torque:  5.4 N.m (55 kgf.cm, 48 in.lbf)
    2. Remove the bolt and speed sensor from the axle carrier.
      1. Torque:  7.8 N.m (80 kgf.cm, 69 in.lbf)

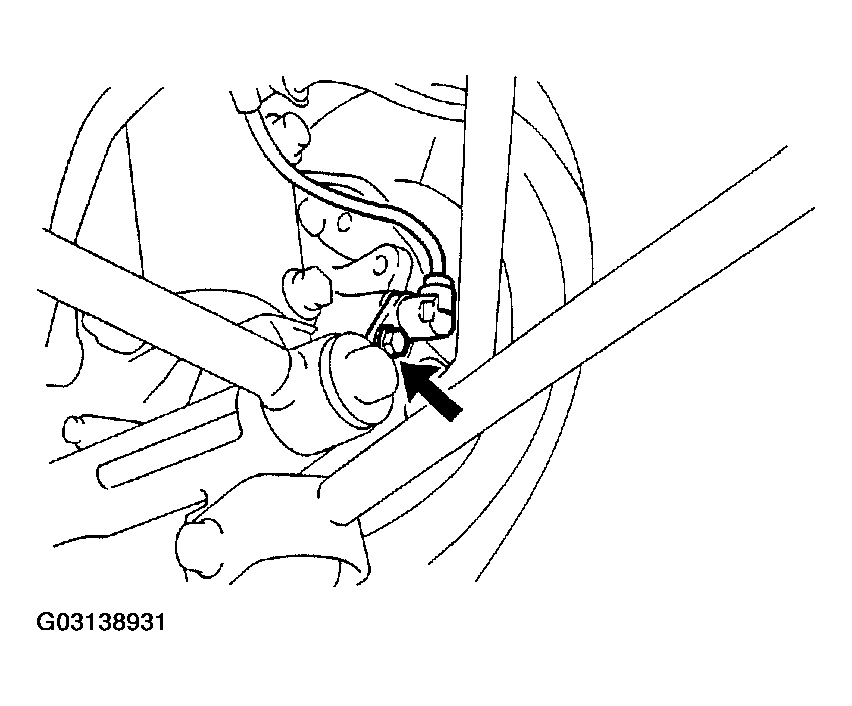

    Fig 2: Removing Rear Speed Sensor
    G03138931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
