Charging Systems: Charging: Generator: Components

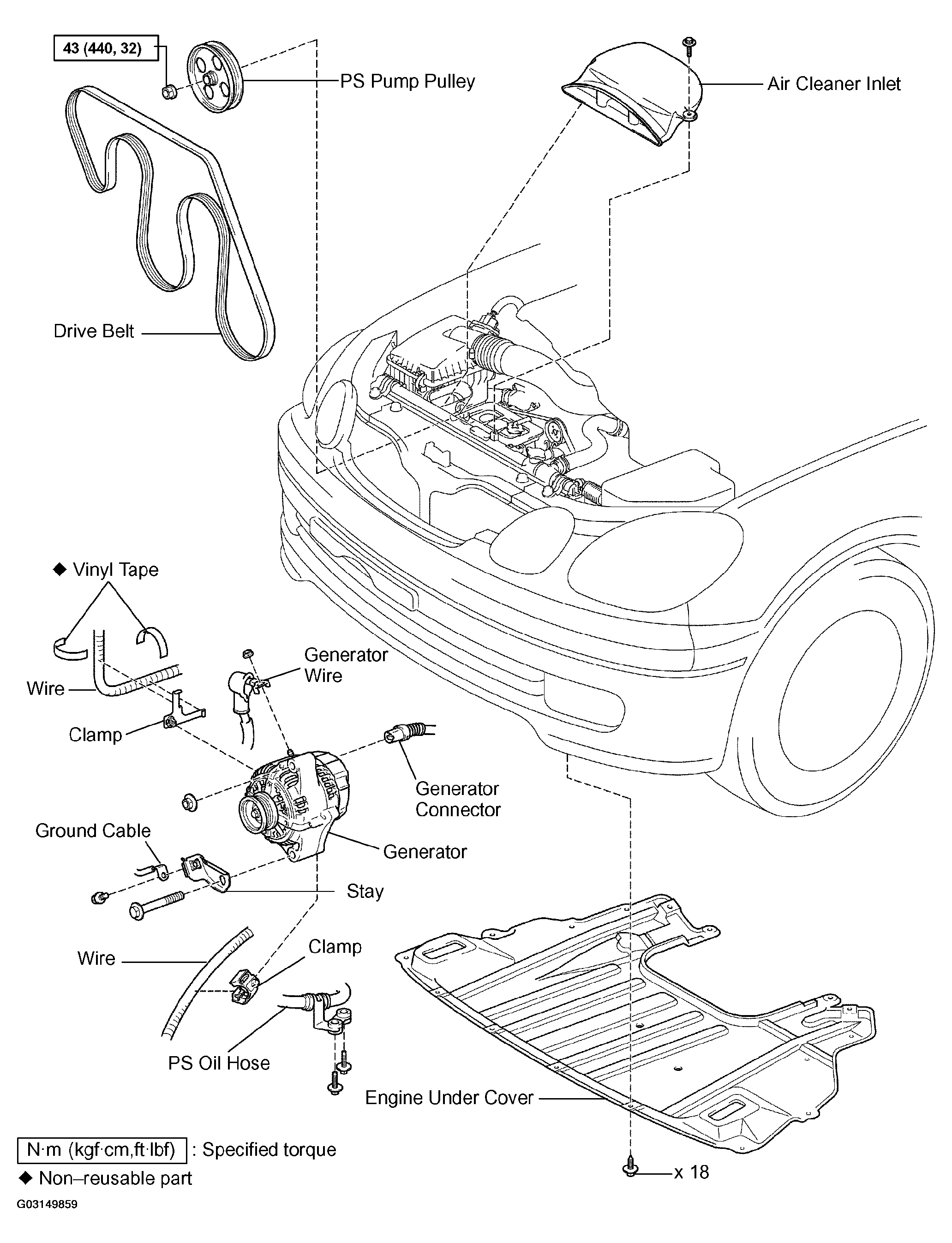

Fig 1: Exploded View Of Generator Removal & Installation
G03149859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

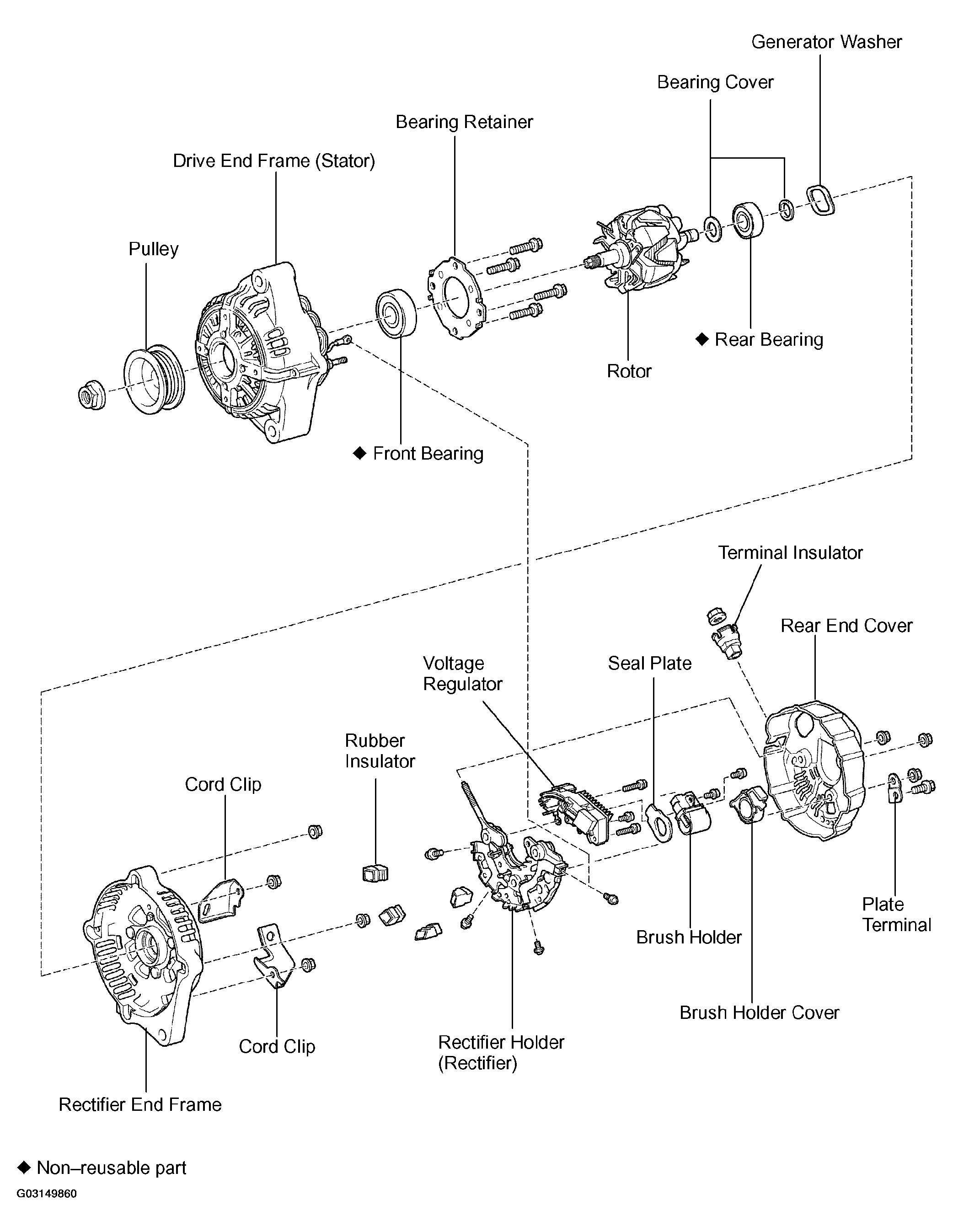

Fig 2: Exploded View Of Generator Assembly
G03149860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
