Component Locations

NOTE: For component locations, see Fig 1 - Fig 4.

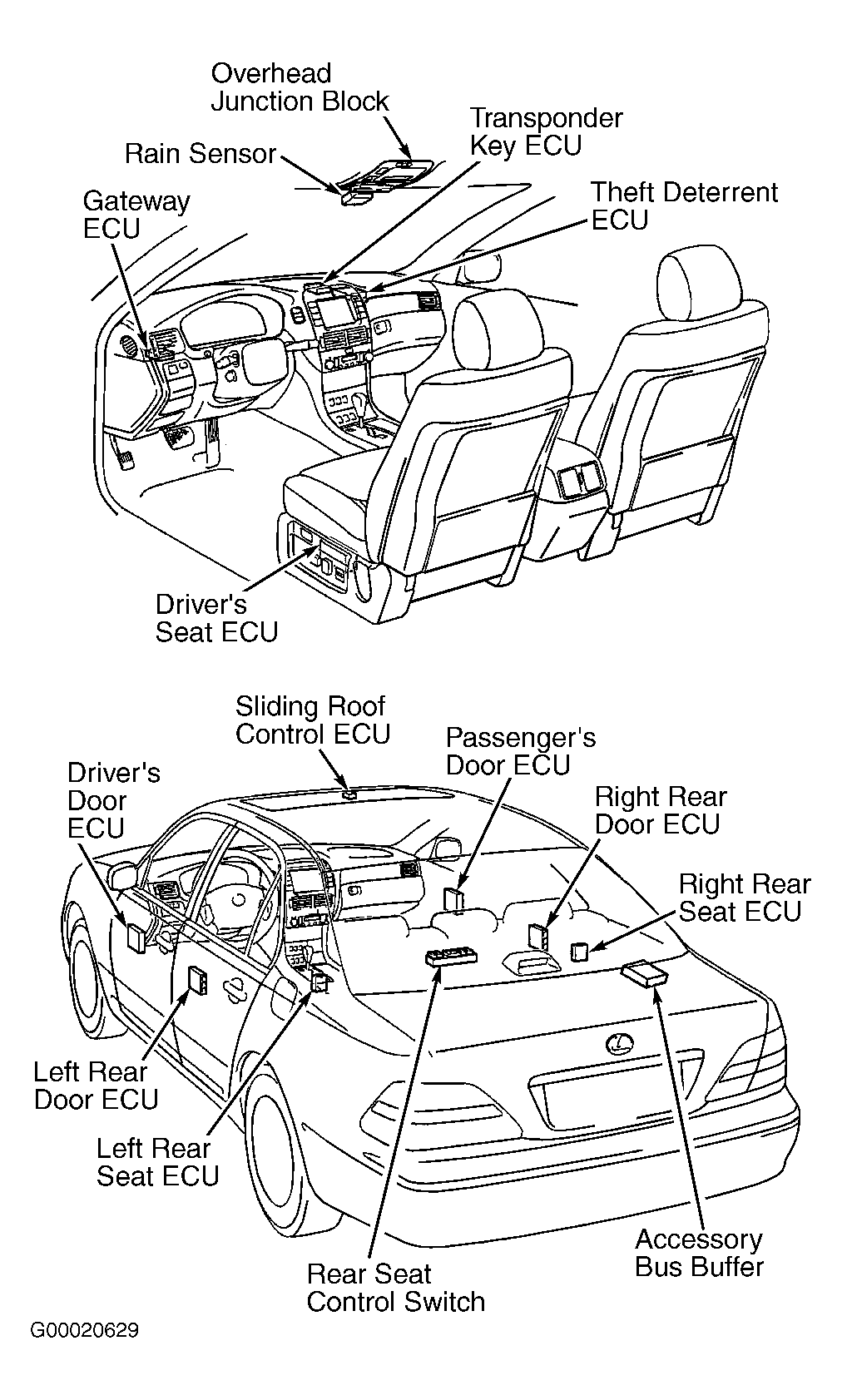

Fig 1: Identifying Multiplex Control System Components (1 Of 4)
G00020629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

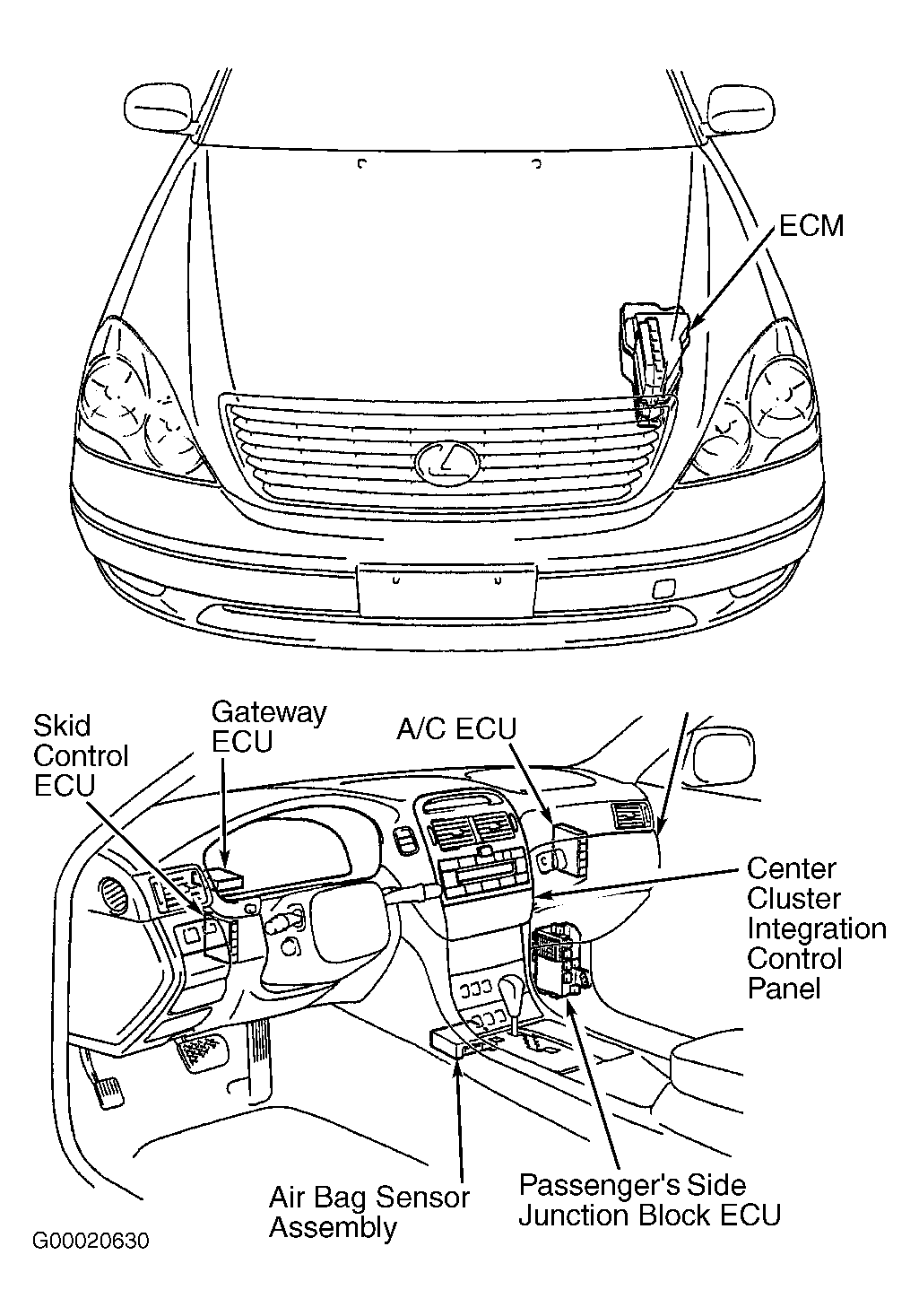

Fig 2: Identifying Multiplex Control System Components (2 Of 4)
G00020630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

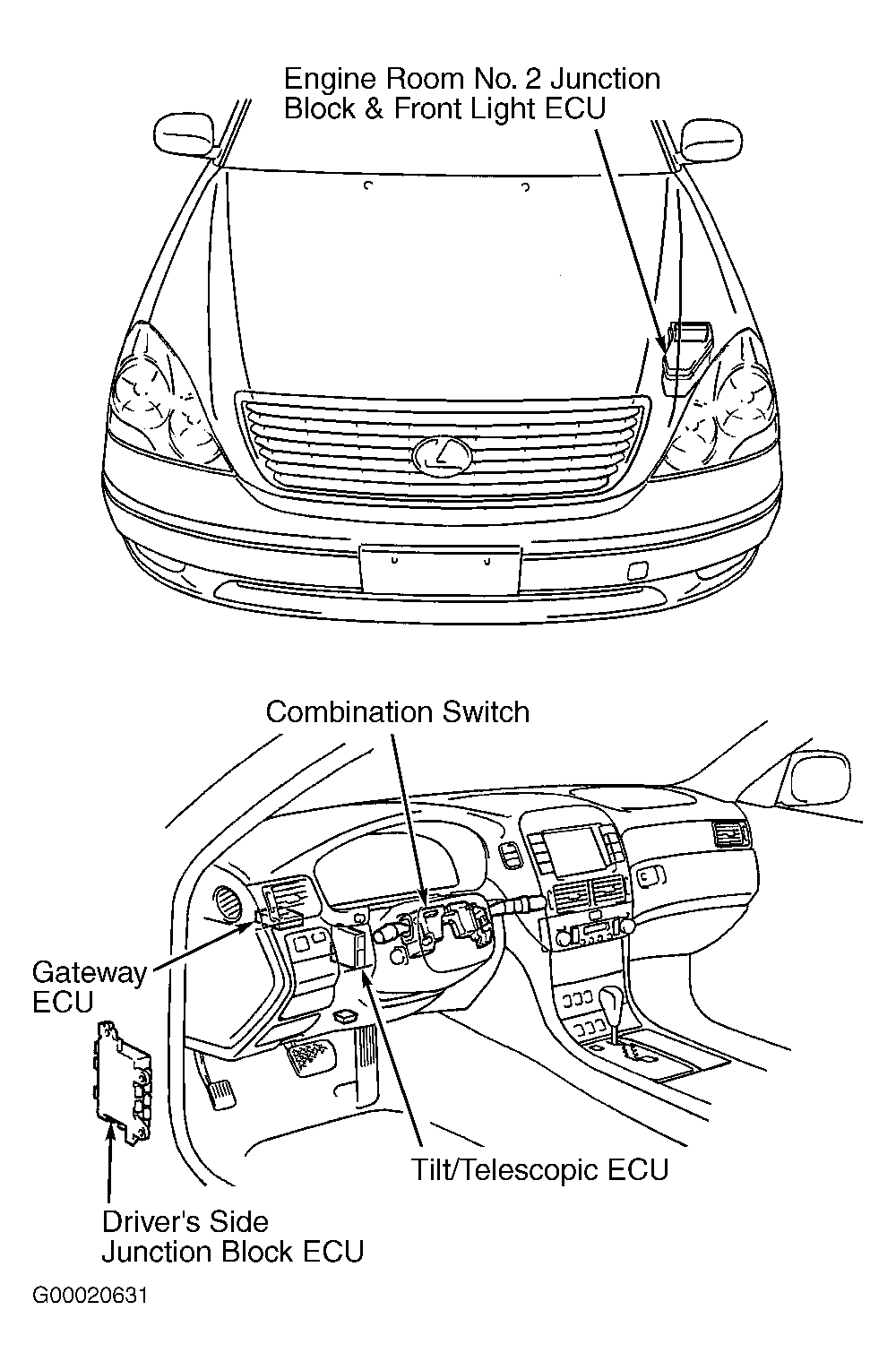

Fig 3: Identifying Multiplex Control System Components (3 Of 4)
G00020631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

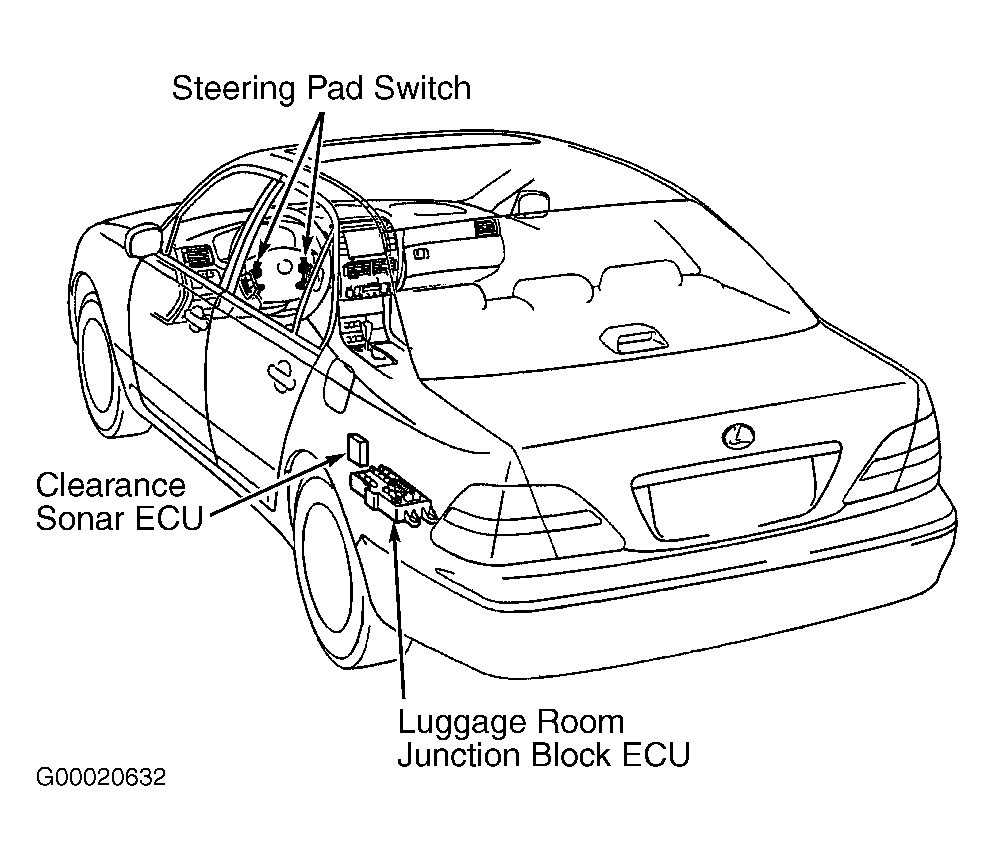

Fig 4: Identifying Multiplex Control System Components (4 Of 4)
G00020632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
