Power Mirror Retract Switch

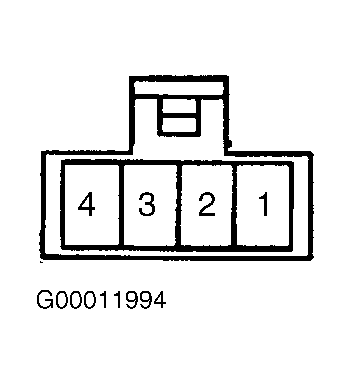

Remove power retract mirror switch. Check continuity between specified power retract mirror switch terminals (component side) with switch in specified position. See POWER MIRROR RETRACT SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace power mirror retract switch.
POWER MIRROR RETRACT SWITCH CONTINUITY
| Switch Position | Terminals No. | ||
|---|---|---|---|
| Retract | 1 & 2 | ||
| Extend | (1) | ||
|
|||
