Speedometer Resistance

Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Measure resistance between specified terminals on back of instrument cluster. See Fig 1. See SPEEDOMETER RESISTANCE  table. If resistance is not as specified, replace speedometer.

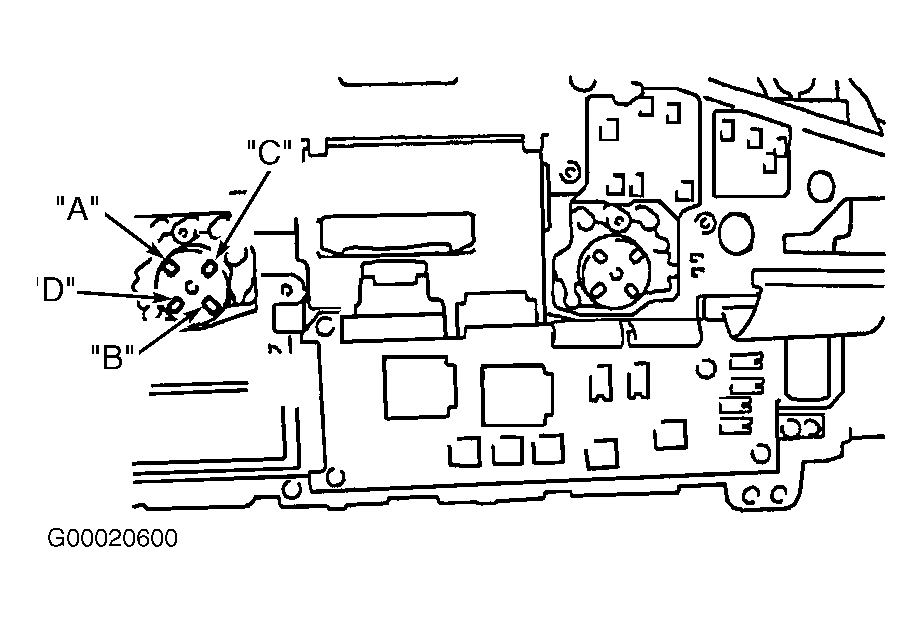

Fig 1: Identifying Speedometer Terminals At Rear Of Instrument Cluster

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
