Component Locations

WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

For component locations, see Fig 1.

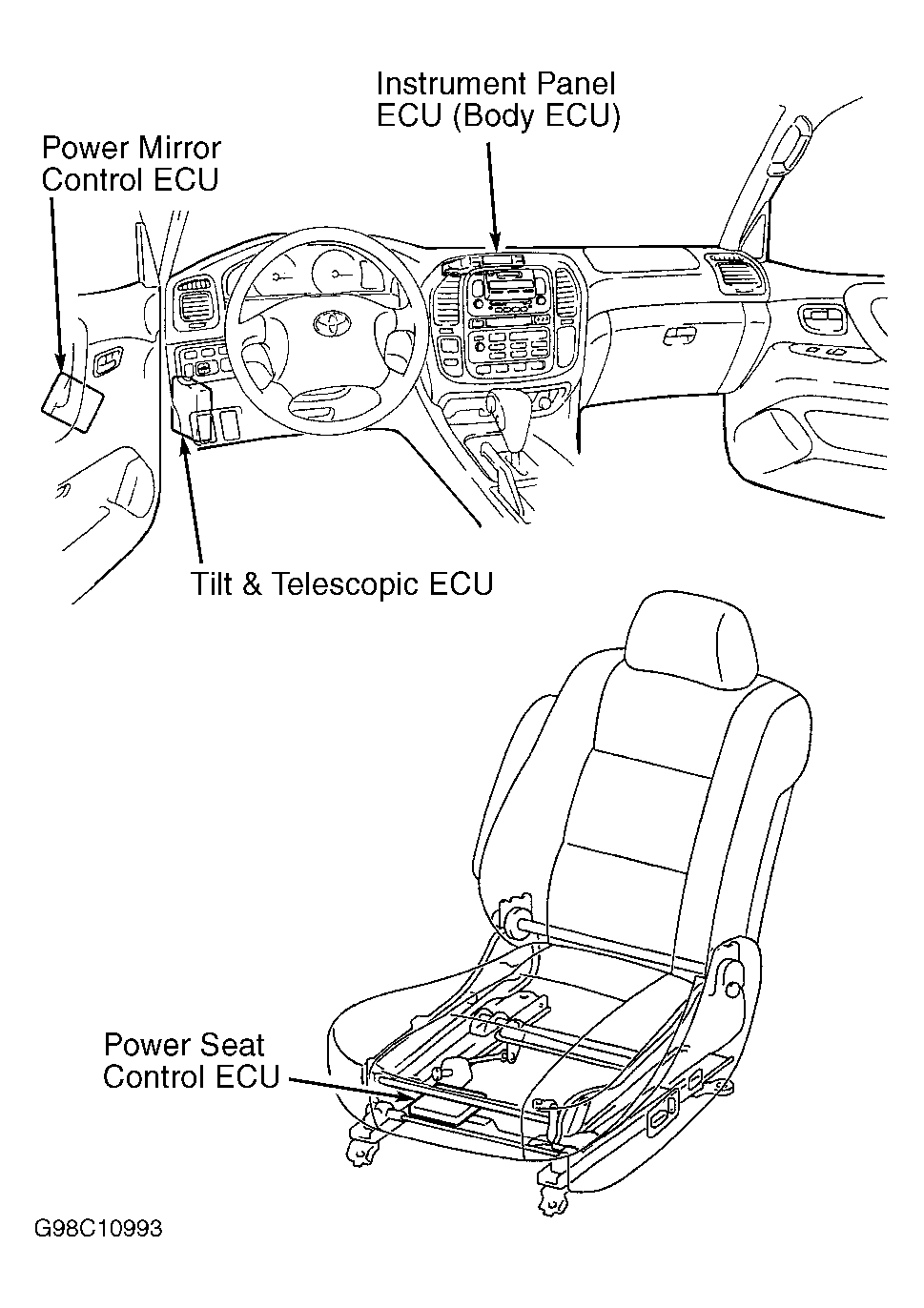

Fig 1: Identifying Multiplex Communication System Component Locations
G98C10993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
