Rear Speed Sensor: Removal

  1. DISCONNECT SPEED SENSOR CONNECTOR
    1. Remove the rear seat, scuff plate and rear seat side garnish.
    2. Disconnect the speed sensor connector, and pull out the sensor wire harness with the grommet.

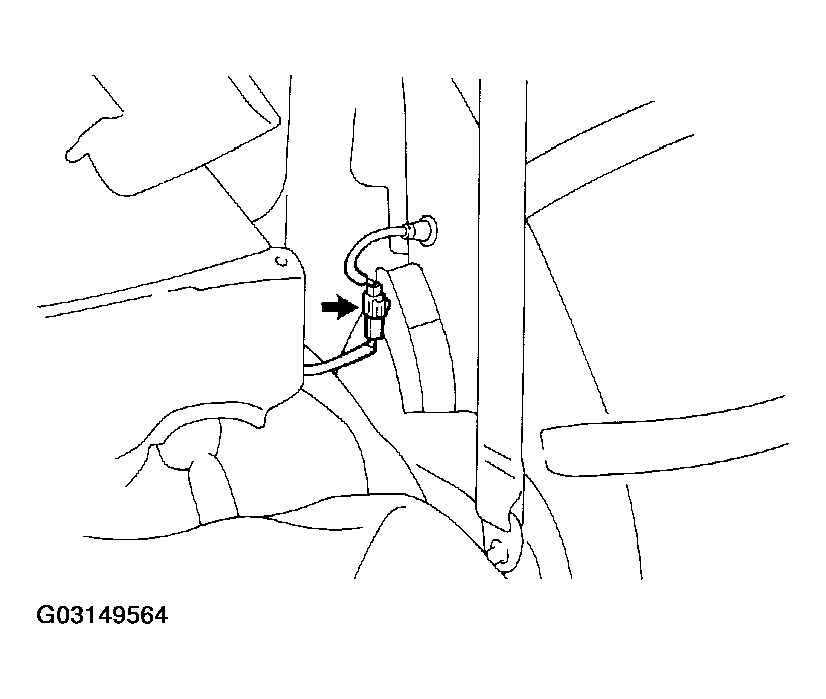

      3. Fig 1: Disconnecting Speed Sensor Connector
      G03149564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SPEED SENSOR
    1. Remove the 2 clamp bolts holding the sensor wire harness to the body and shock absorber.

      Torque: 5.0 N.m (55 kgf.cm, 48 in.lbf)

    2. Remove the bolt, O-ring (2WD) and speed sensor from the axle carrier.

      Torque:

      2WD: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      4WD: 20 N.m (200 kgf.cm, 14 ft.lbf)

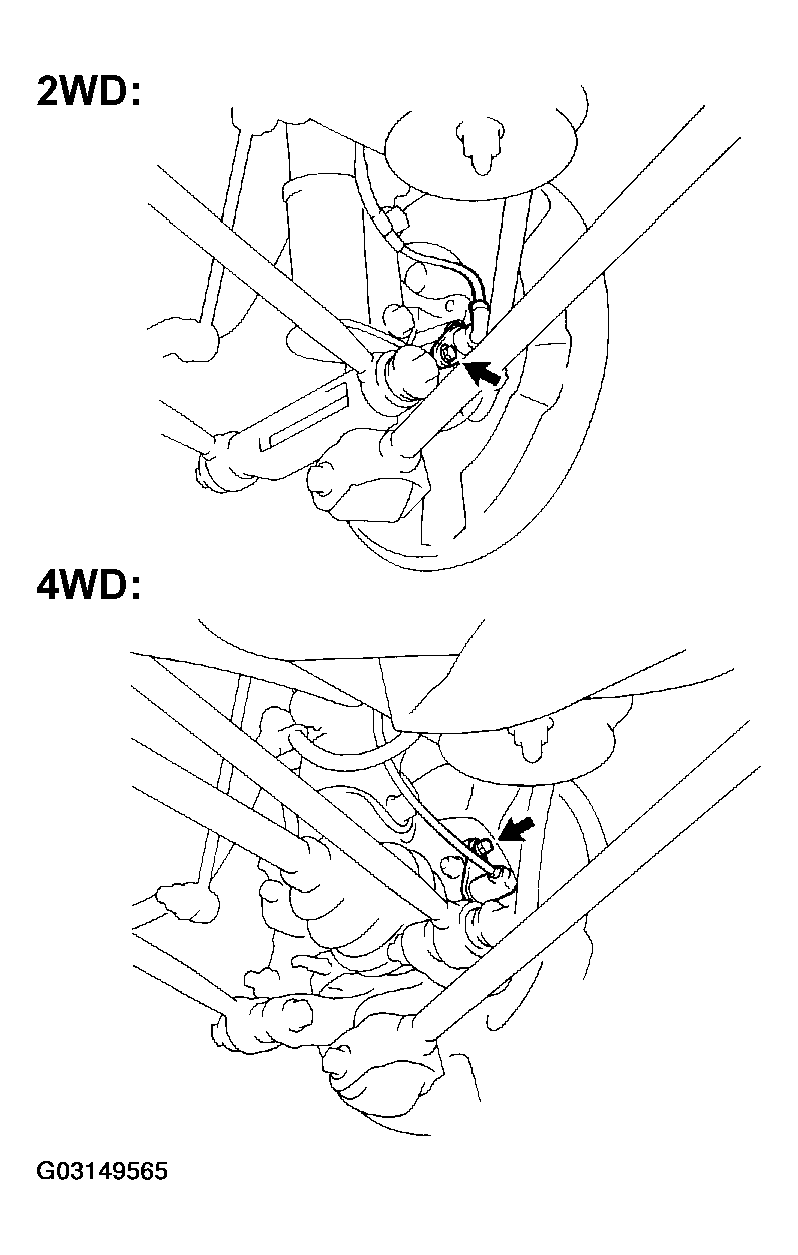

      3. Fig 2: Removing Clamp Bolts Holding Sensor Wire Harness To Body & Shock Absorber
      G03149565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
