Home >> Lexus >> 2002 >> ES 300 >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Engine Immobilizer System >> Programming >> Key Code Erasure >> Using Hand-Held Tester

Using Hand-Held Tester

For key code erasure flowchart, see Fig 1.

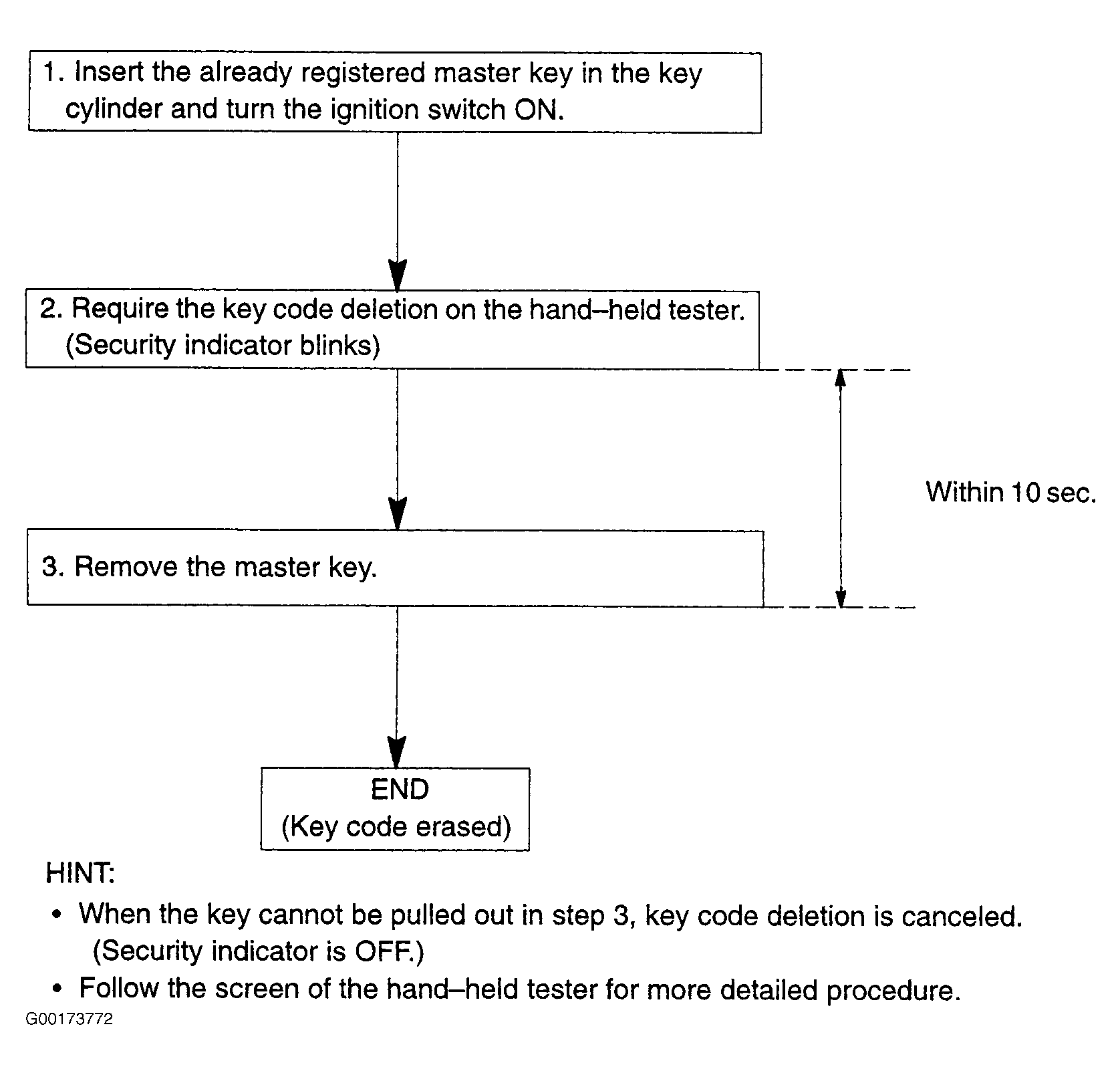

Fig 1: Erasing Key Code With Hand-Held Tester

G00173772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
