Engine Control Module (ECM)

For inspection, go to Fig 1 and Fig 2 .

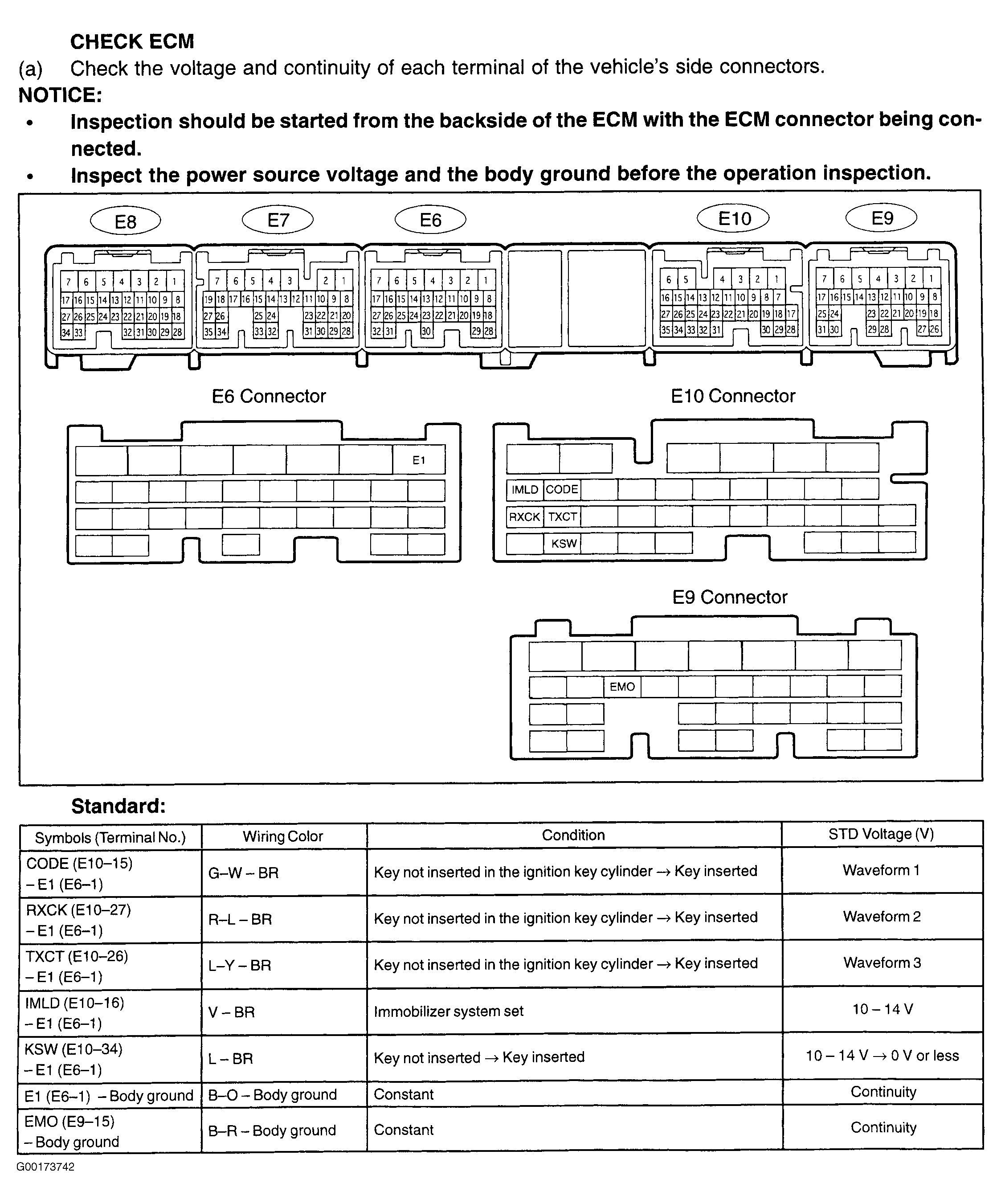

Fig 1: Inspecting Engine Control Module (1 Of 2)
G00173742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

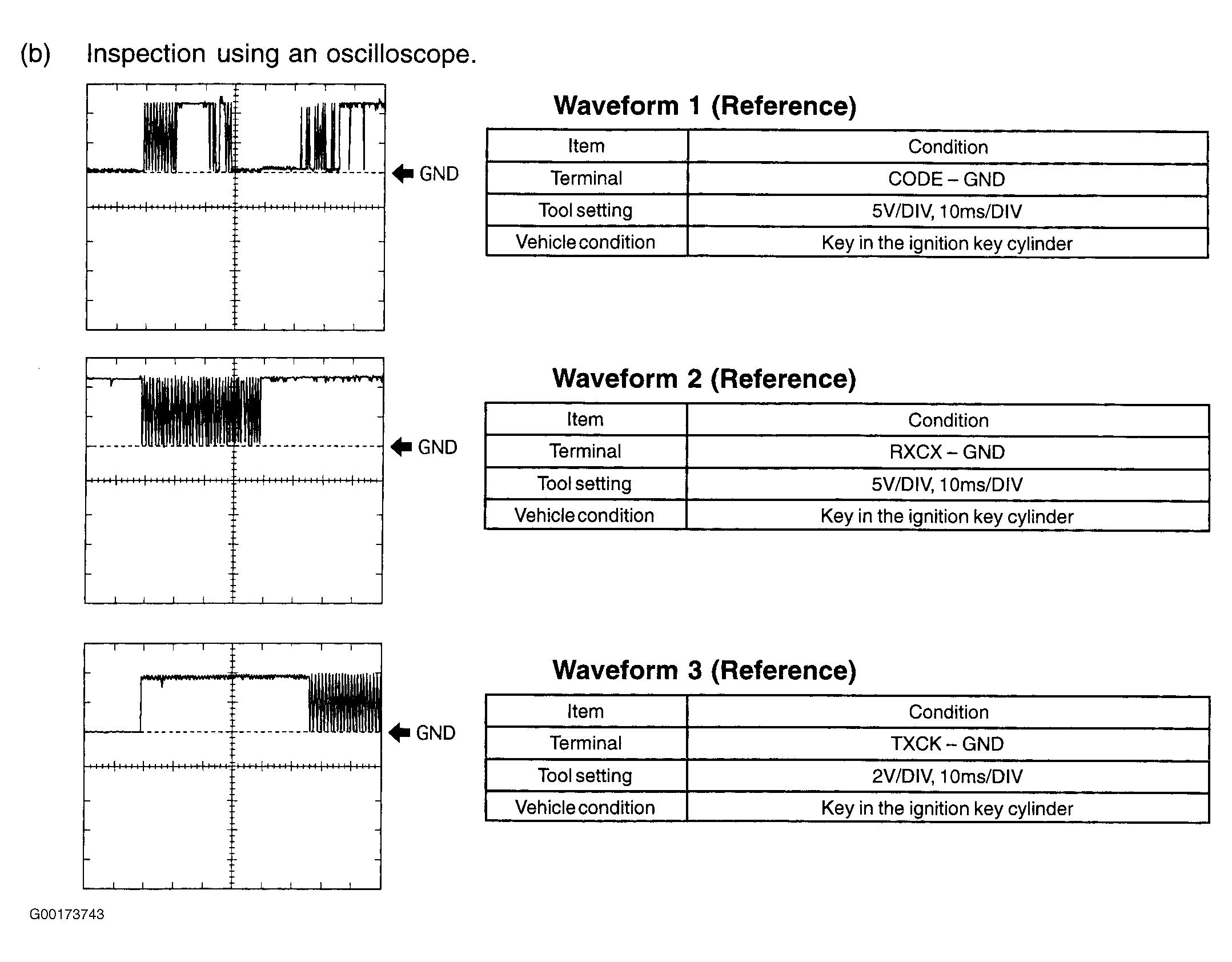

Fig 2: Inspecting Engine Control Module (2 Of 2)
G00173743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
