COMPONENT LOCATIONS
Component
Location
Driver Side Junction Block (Body ECU)
(1)
Door Courtesy Switch
(1)
Front Door W/ Motor Lock Assembly
(1)
Luggage Compartment Door Lock
(1)
Power Window Master Switch
(1)
Wireless (Door) Control Receiver
(1)
(1)
See
Fig 1
.

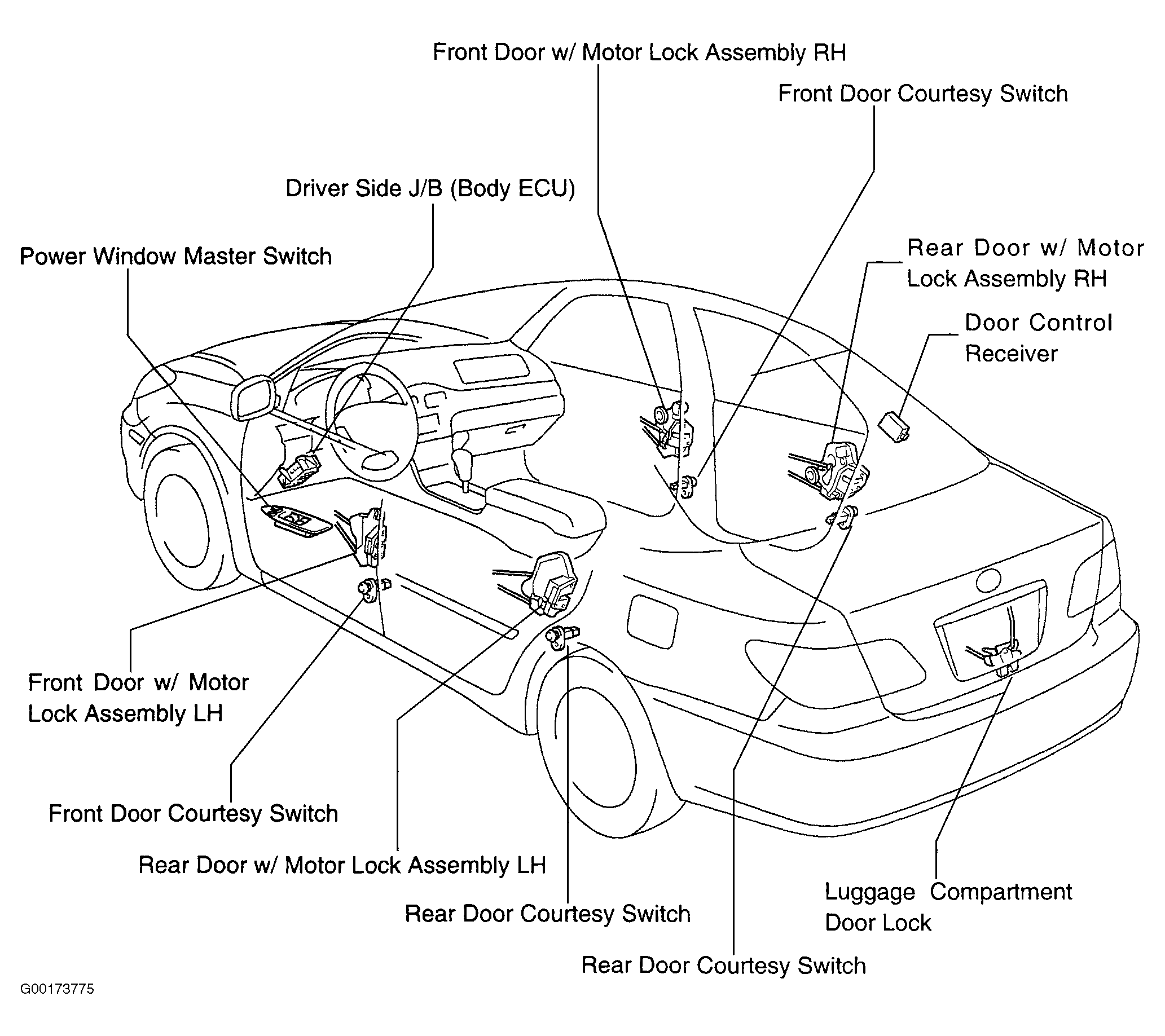

Fig 1: Identifying Remote Keyless Entry Component Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
