Driver Side Junction Block
Driver Side Junction Block
For inspection, see
Fig 1
.

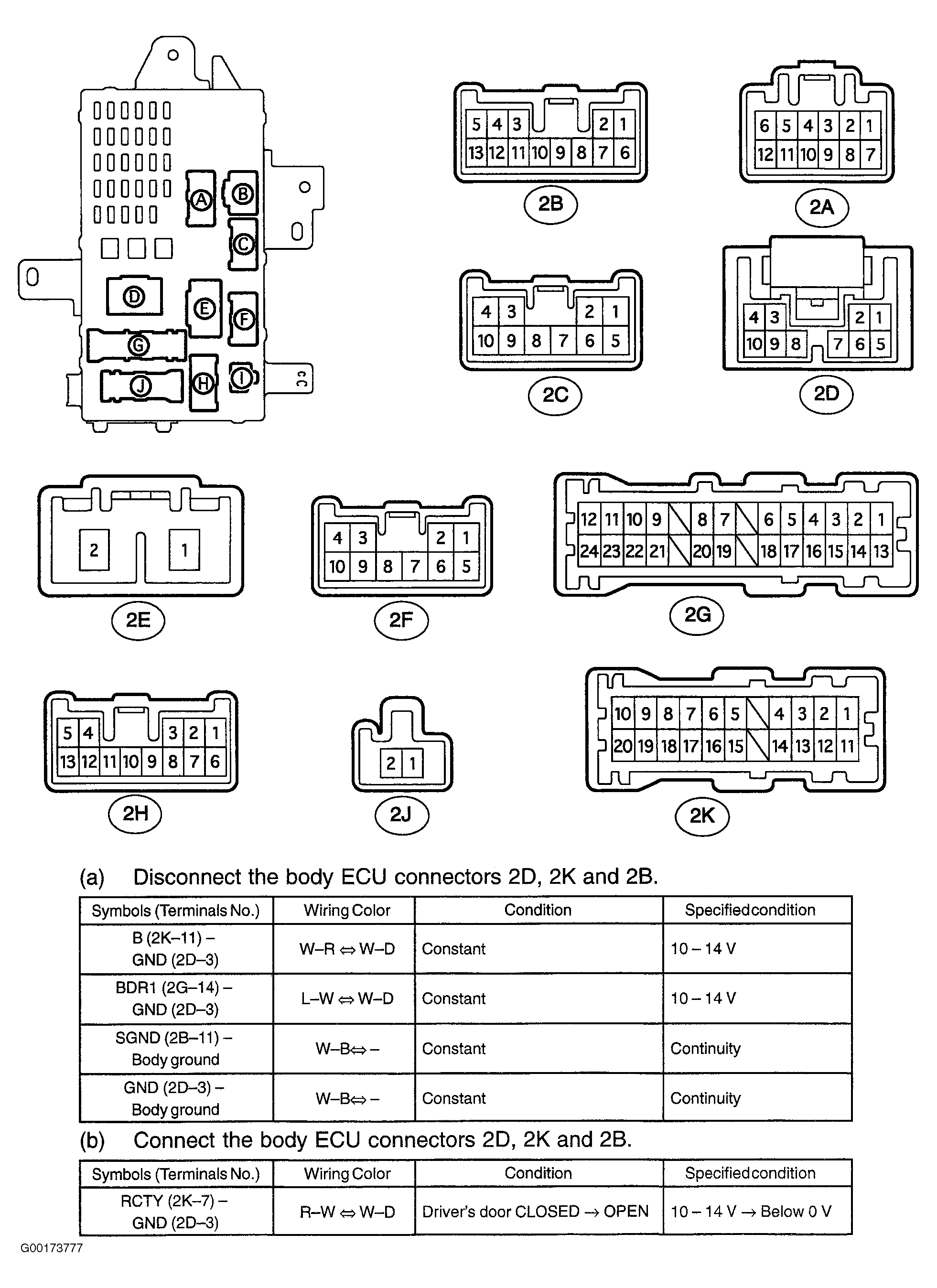

Fig 1: Inspecting Driver Side Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
