Component Locations
COMPONENT LOCATIONS
| Component | Location | ||||
|---|---|---|---|---|---|

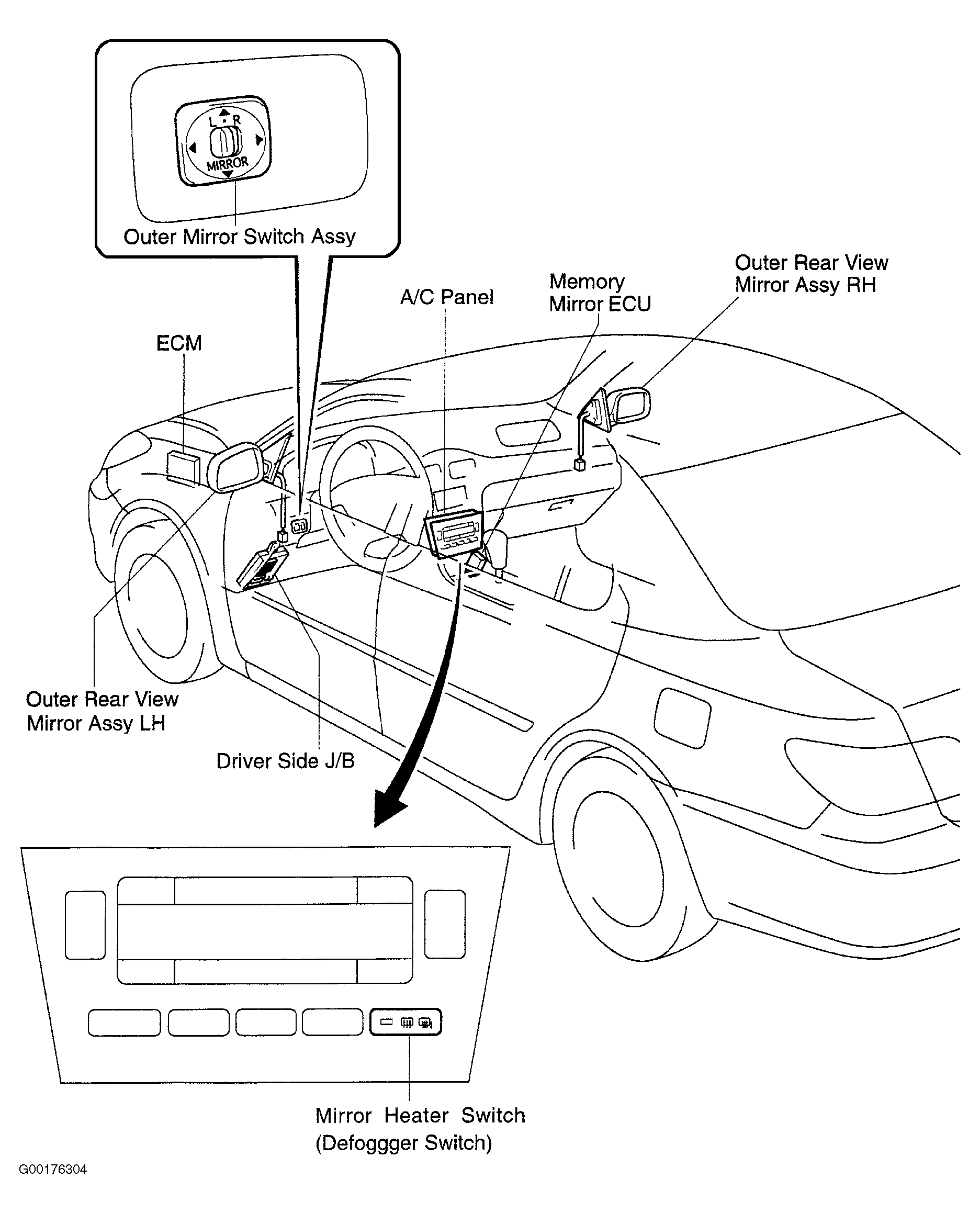

| A/C Panel | (1) | ||||
| Driver Side Junction Block | (1) | ||||
| ECM | (1) | ||||

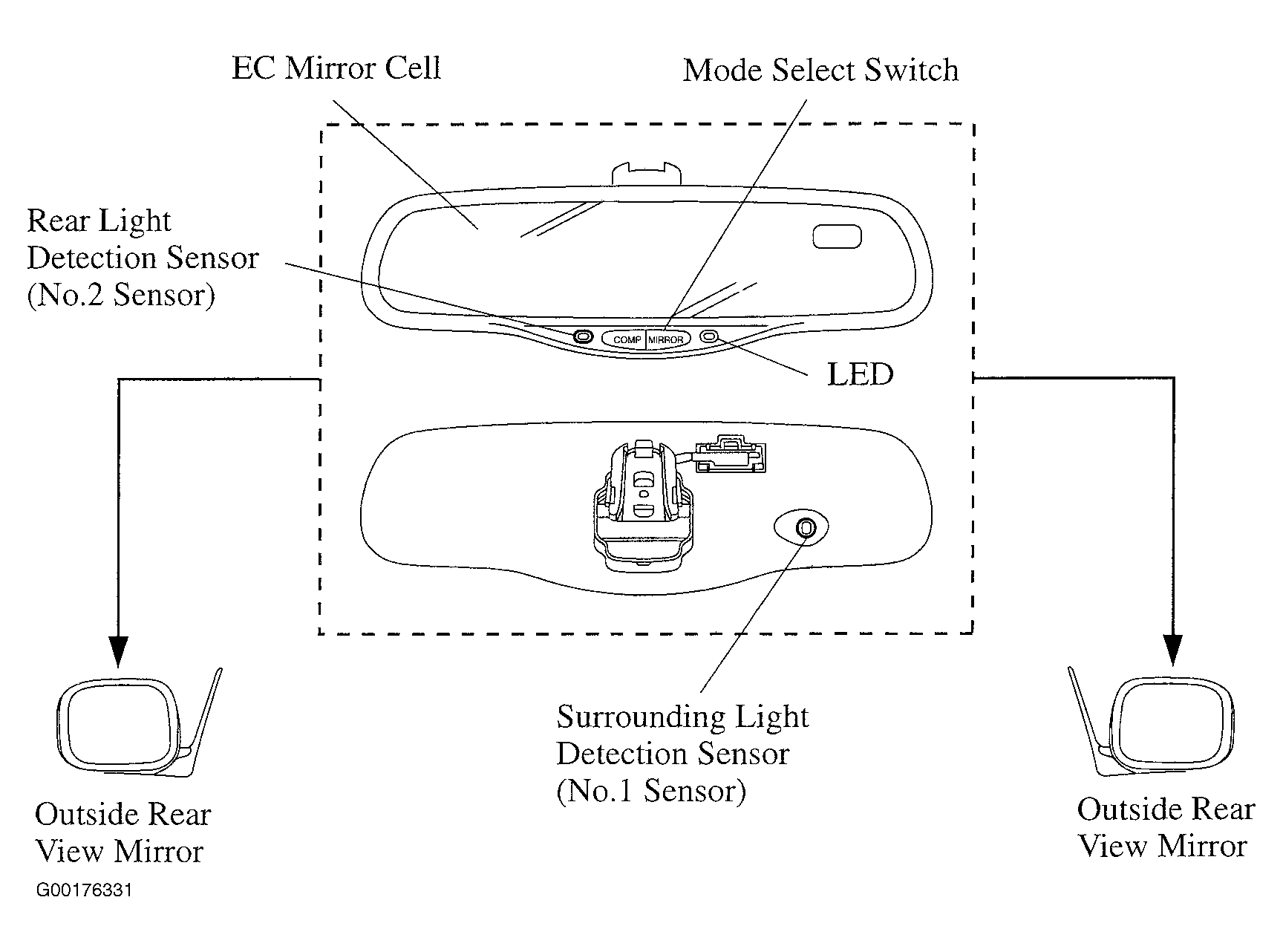

| EC Mirror Cell | (2) | ||||
| LED | (2) | ||||
| Memory Mirror ECU | (1) | ||||
| Mirror Heater Switch (Defogger Switch) | (1) | ||||
| Mode Select Switch | (2) | ||||
| Outer Mirror Switch Assembly | (1) | ||||
| Outer Rear View Mirror Assembly | (1) | ||||
| Rear Light Detection Sensor (No. 2 Sensor) | (2) | ||||
| Surrounding Light Detection Sensor (No. 1 Sensor) | (2) | ||||
|
|||||
