Using Hand-Held Tester

  1. Hook up the hand-held tester to the DLC3. See Fig 1.
  2. Monitor the ECU data by following the prompts on the tester screen. The hand-held tester has a Snapshot function which records the monitored data. Please refer to the hand-held tester operator's manual for further details.

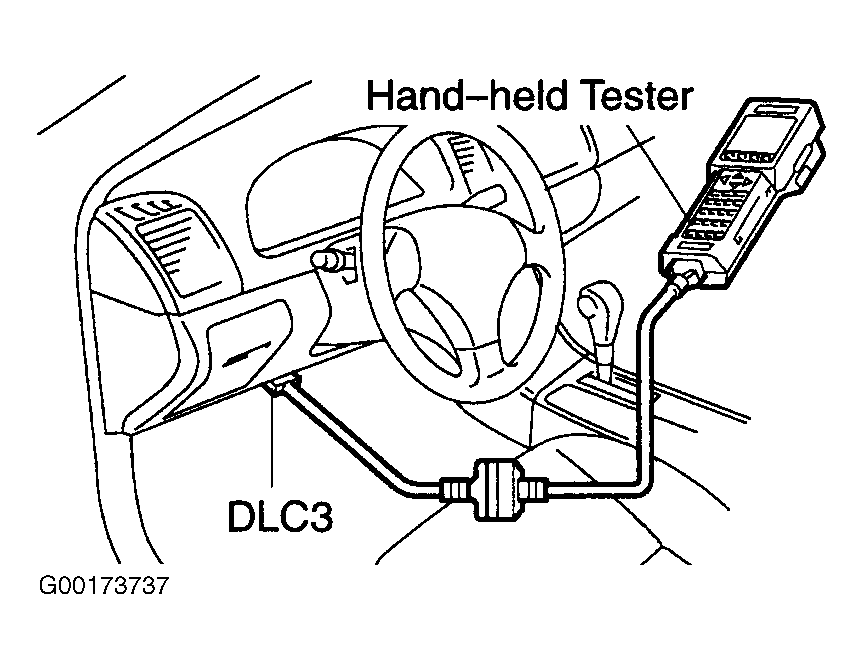

Fig 1: Connecting Hand-Held Tester To DLC3
G00173737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
