Pin Voltage Test

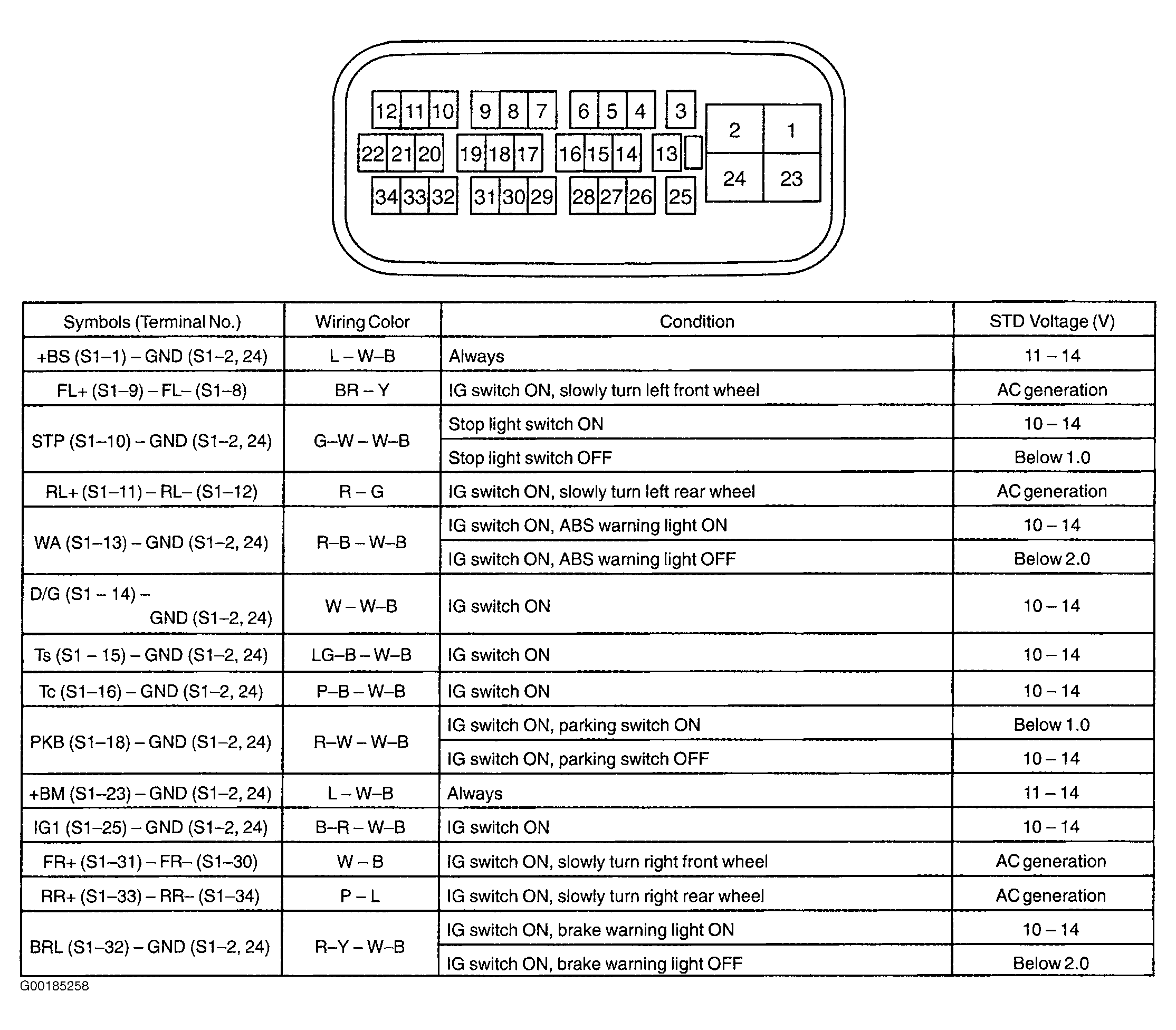

Fig 1: ABS ECU Pin Voltage Chart
G00185258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
